18U 173HP Eurorack case in aluminum

This aluminium Eurorack case was a custom request: the client wanted his system to sit perfectly on the flat part of his vintage Roland Jupiter 4 … but obviously it can be made in other (like my standard Eurorack cases?) sizes!

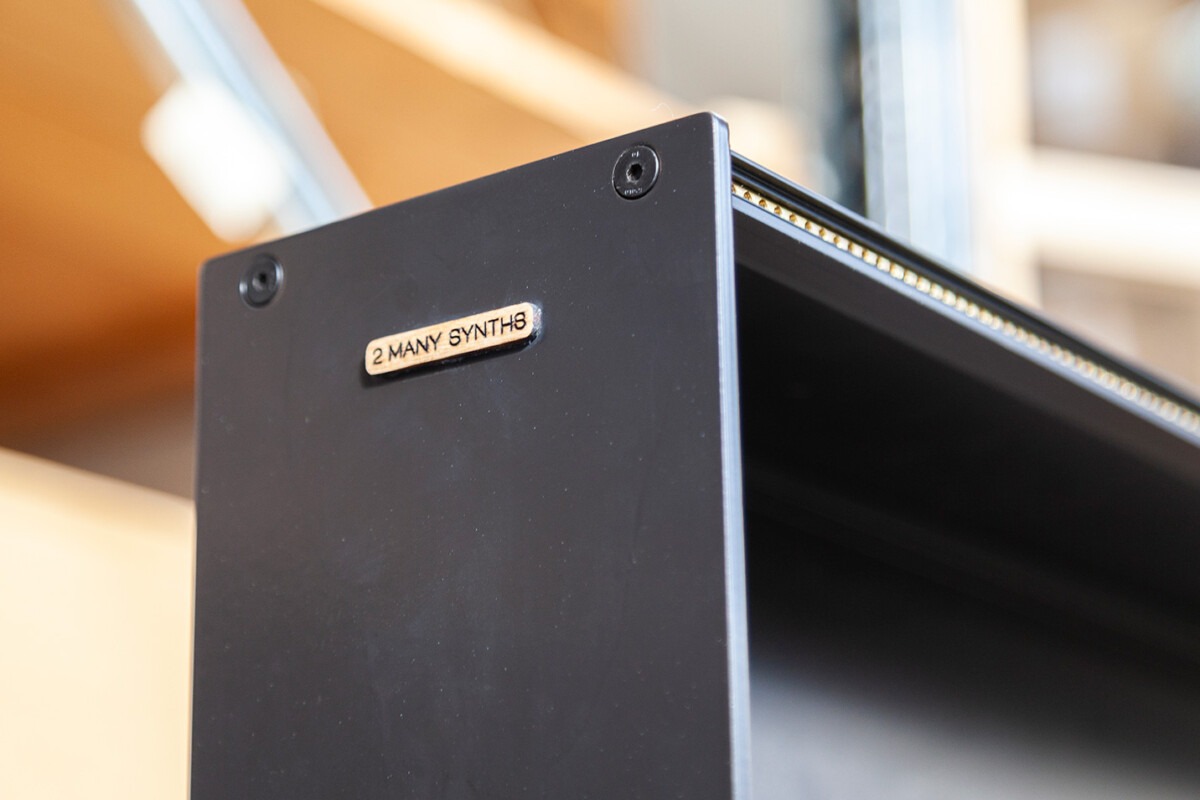

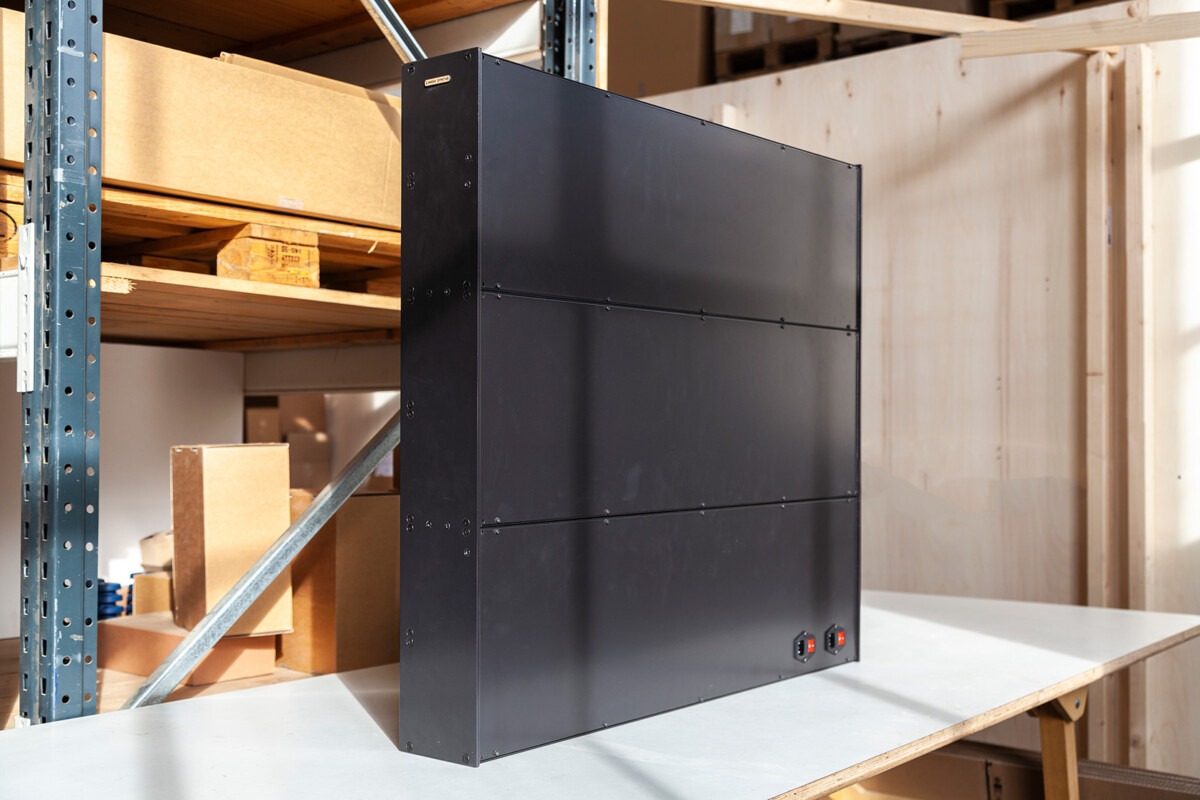

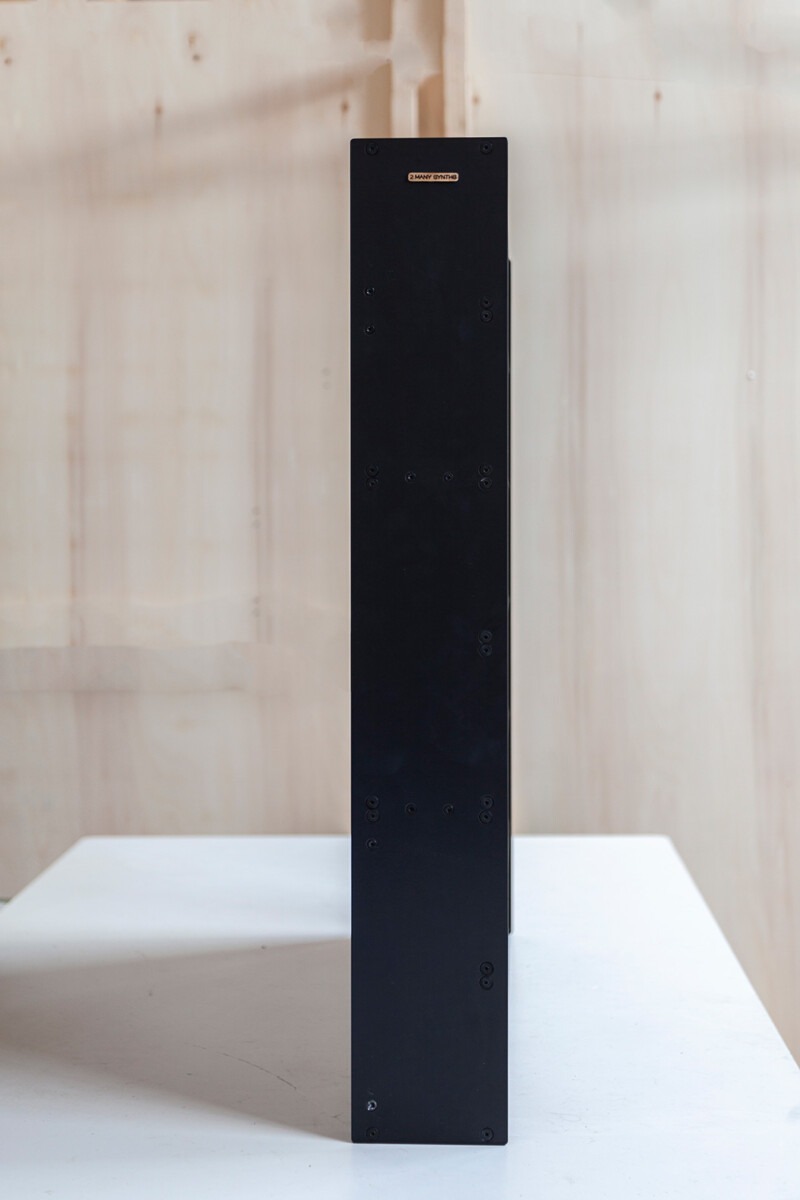

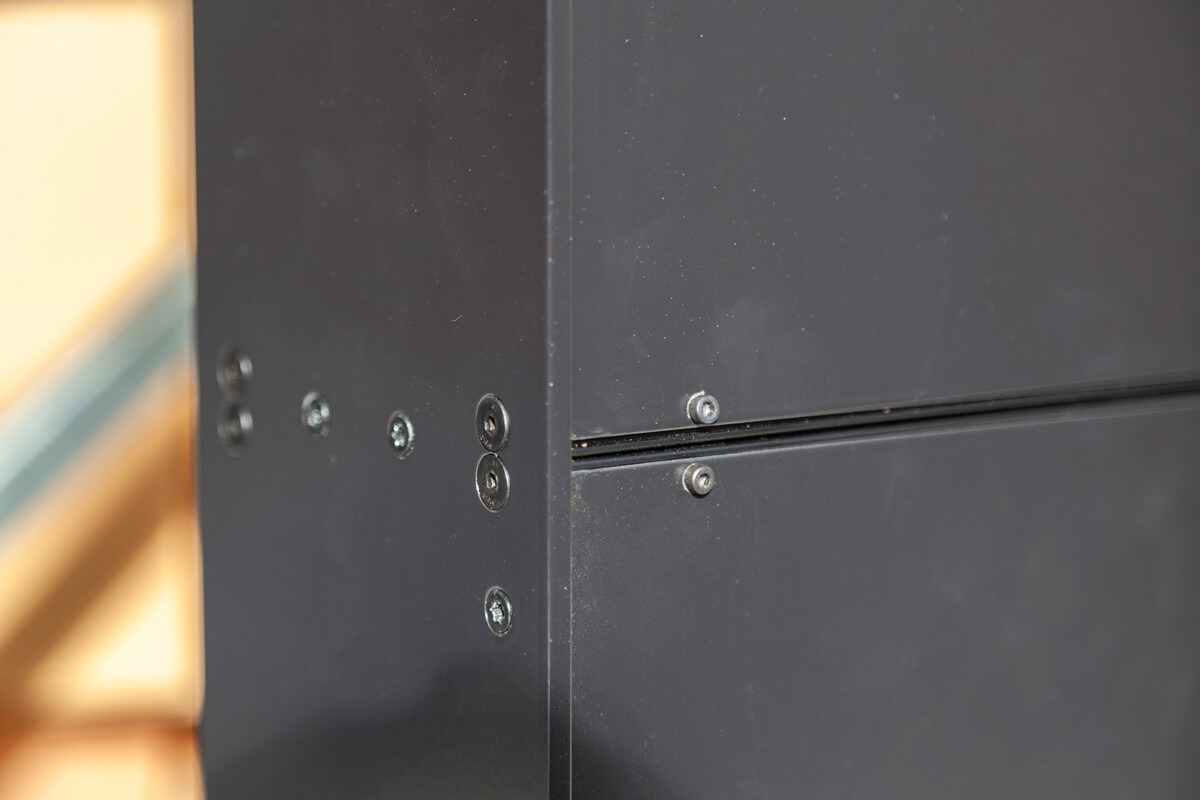

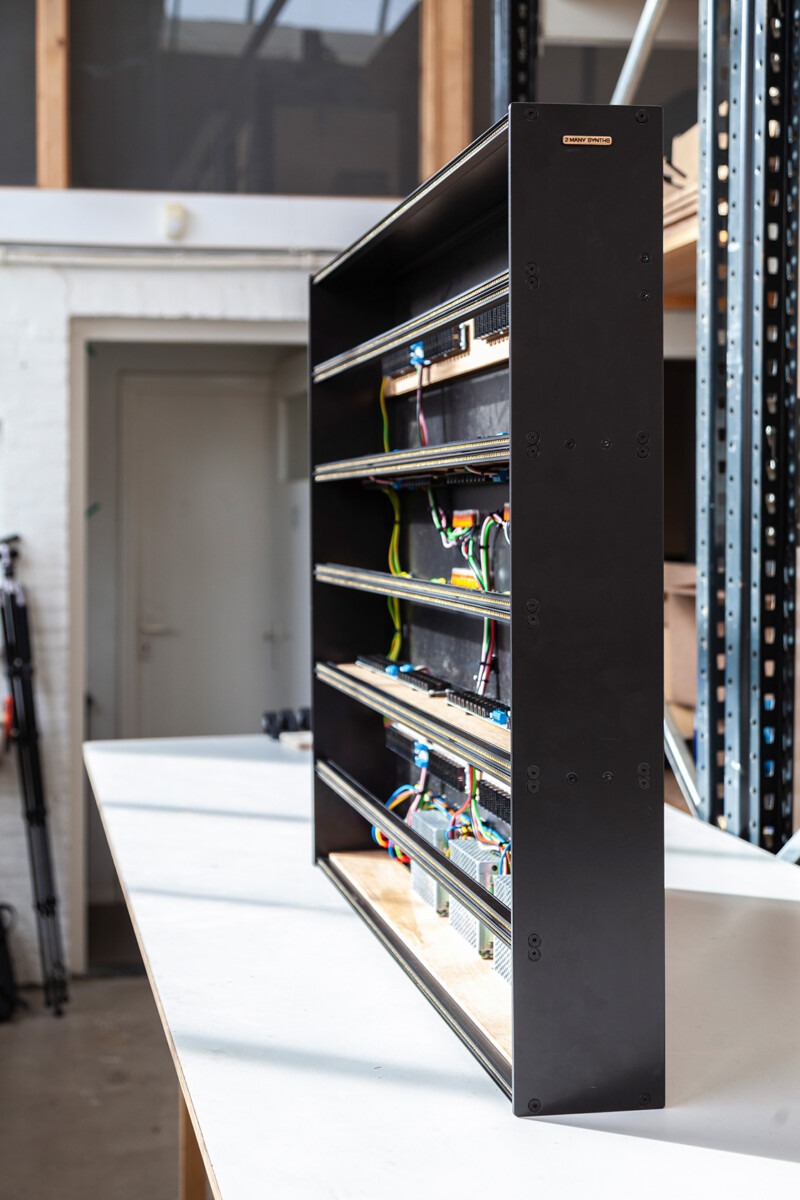

Constructed from 5mm powder-coated aluminum side cheeks, with custom 2mm aluminum panels closing it off, this 18U 173HP case is designed with Eurorack rails on top and in the back. Wooden elements inside provide stability and make mounting bussboards effortless.

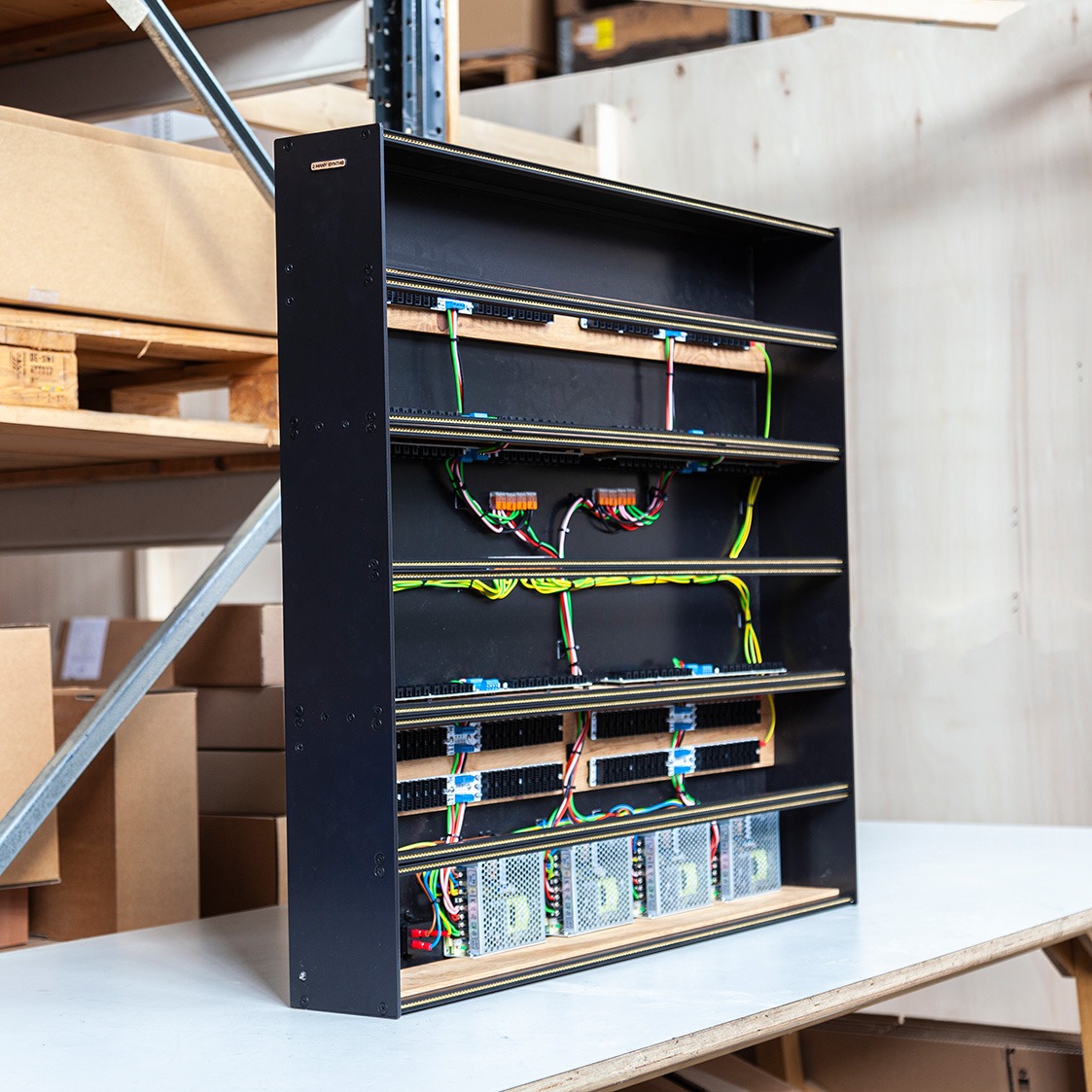

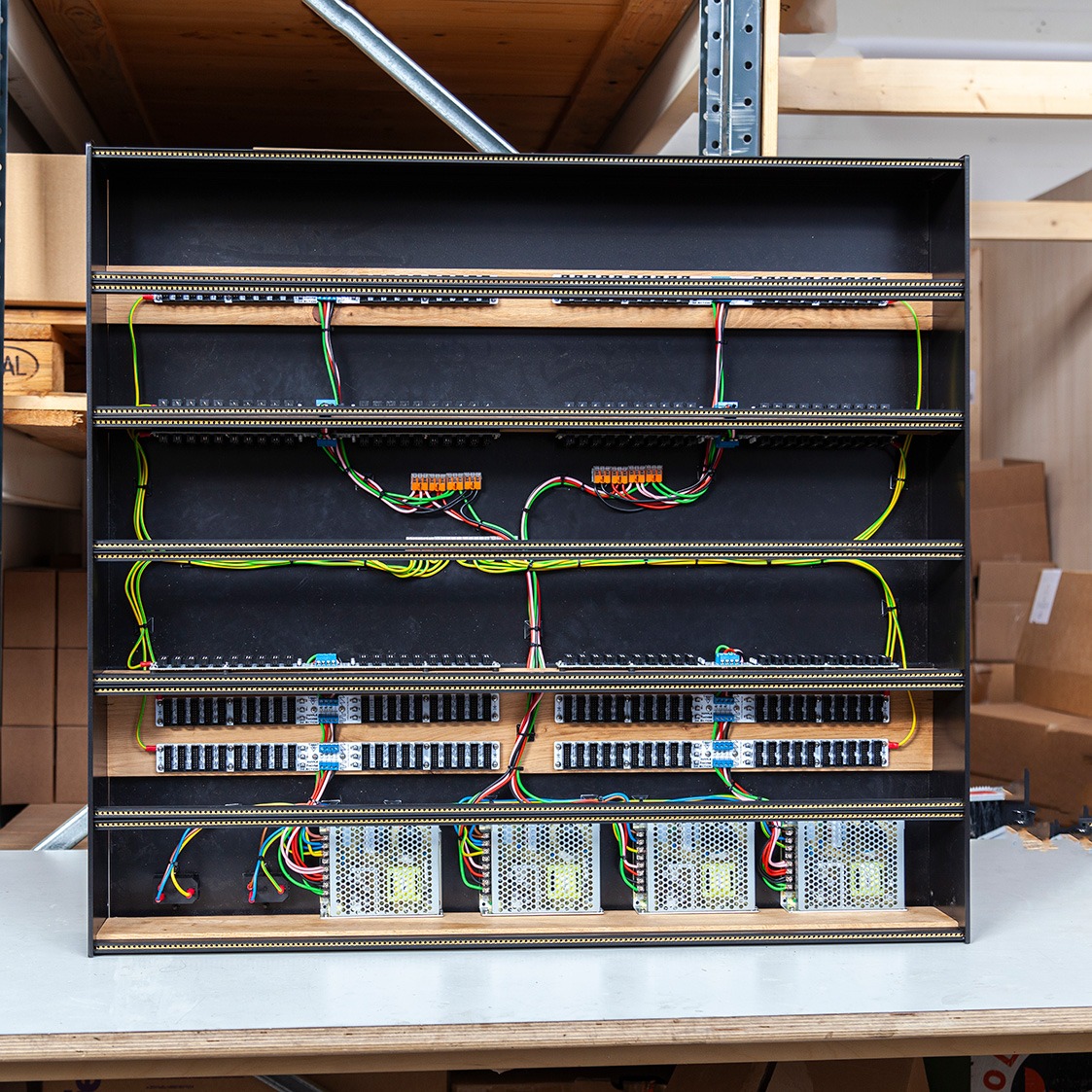

Fully wired with 4 PSUs, plenty of @modularsynthlab busboards, black rails, and brass threaded inserts.
