Widths

These are (my) standard HP sizes:

  • 60HP = 306mm + 2x 12mm sides = 330mm
  • 84HP = 428mm + 2x 12mm sides = 452mm
  • 104HP = 530mm + 2x 12mm sides = 554mm
  • 126HP = 642mm + 2x 12mm sides = 666mm
  • 160HP = 814mm + 2x 12mm sides = 838mm
  • 196HP = 997mm + 2x 12mm sides = 1021mm
  • I cut the rails to size myself, so other HP possible on request



7U 104HP Slanted Eurorack cases in BLACK

Original price was: €667.Current price is: €509.

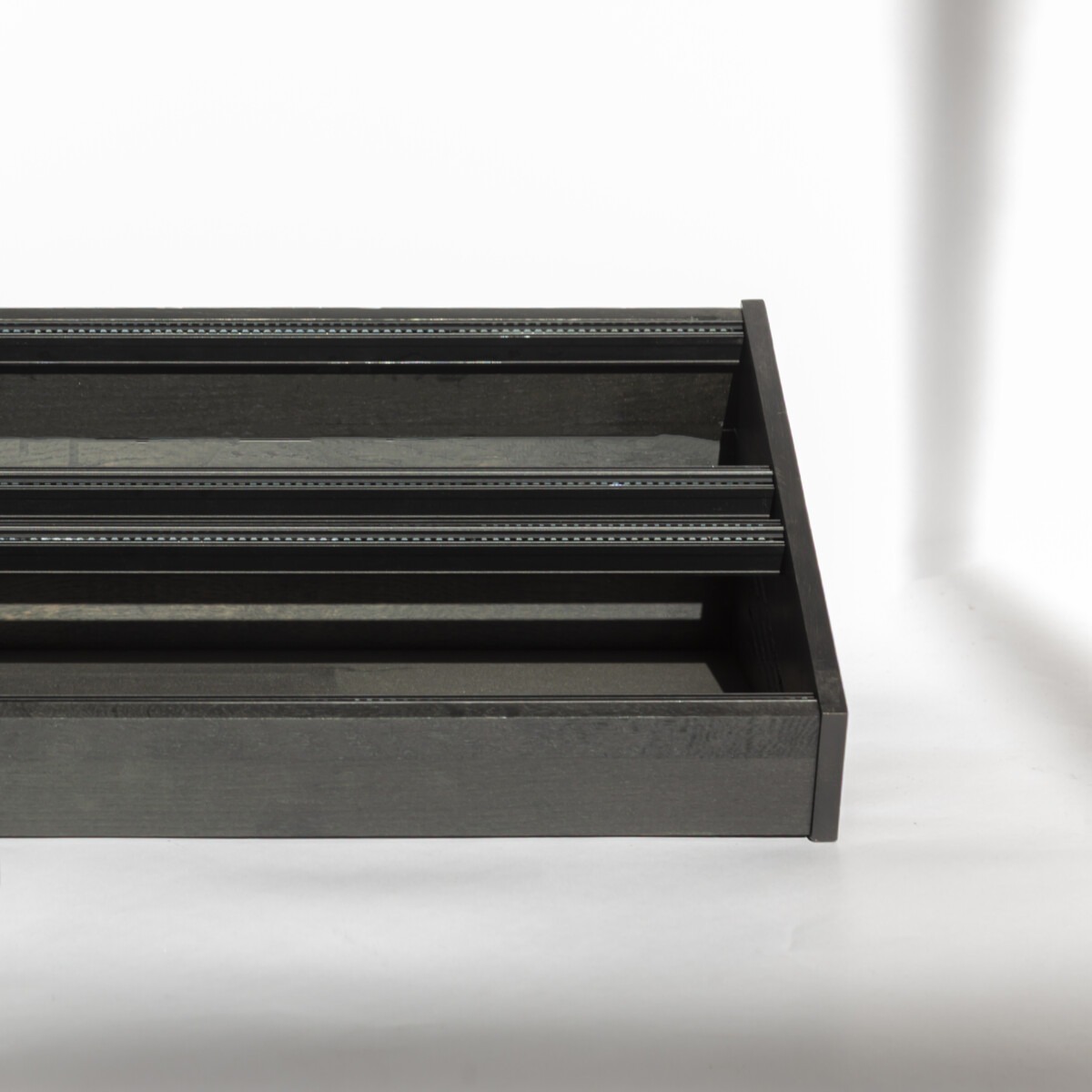

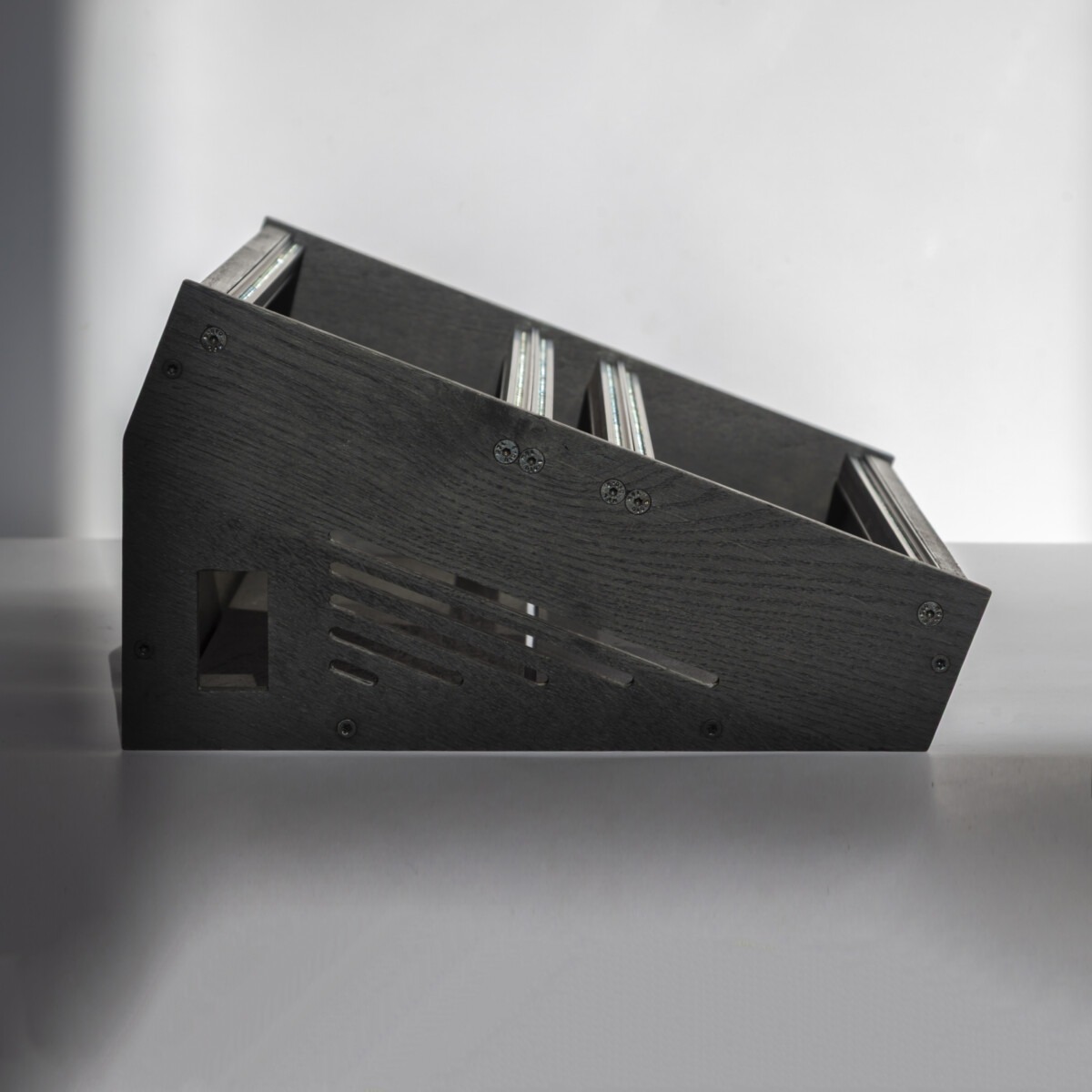

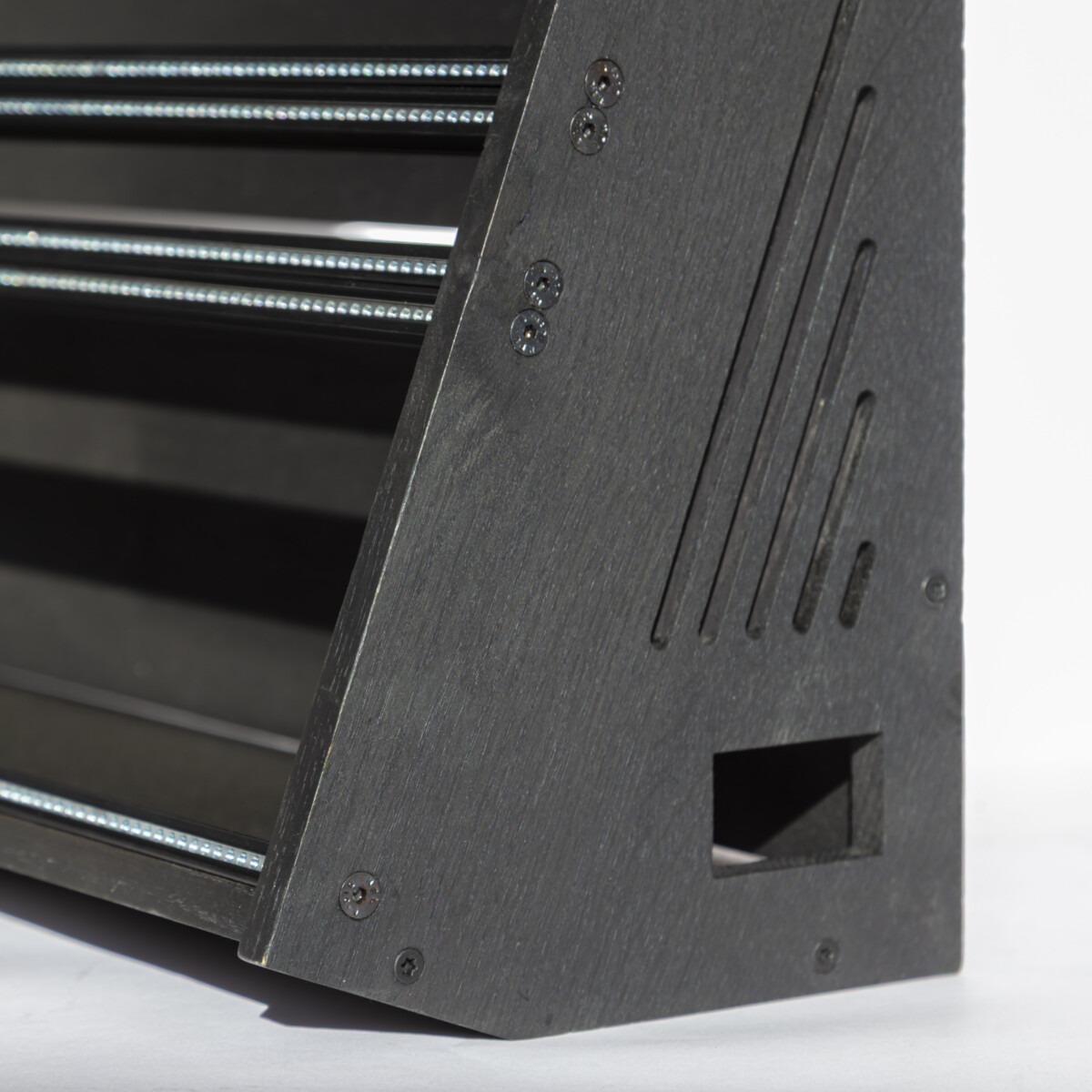

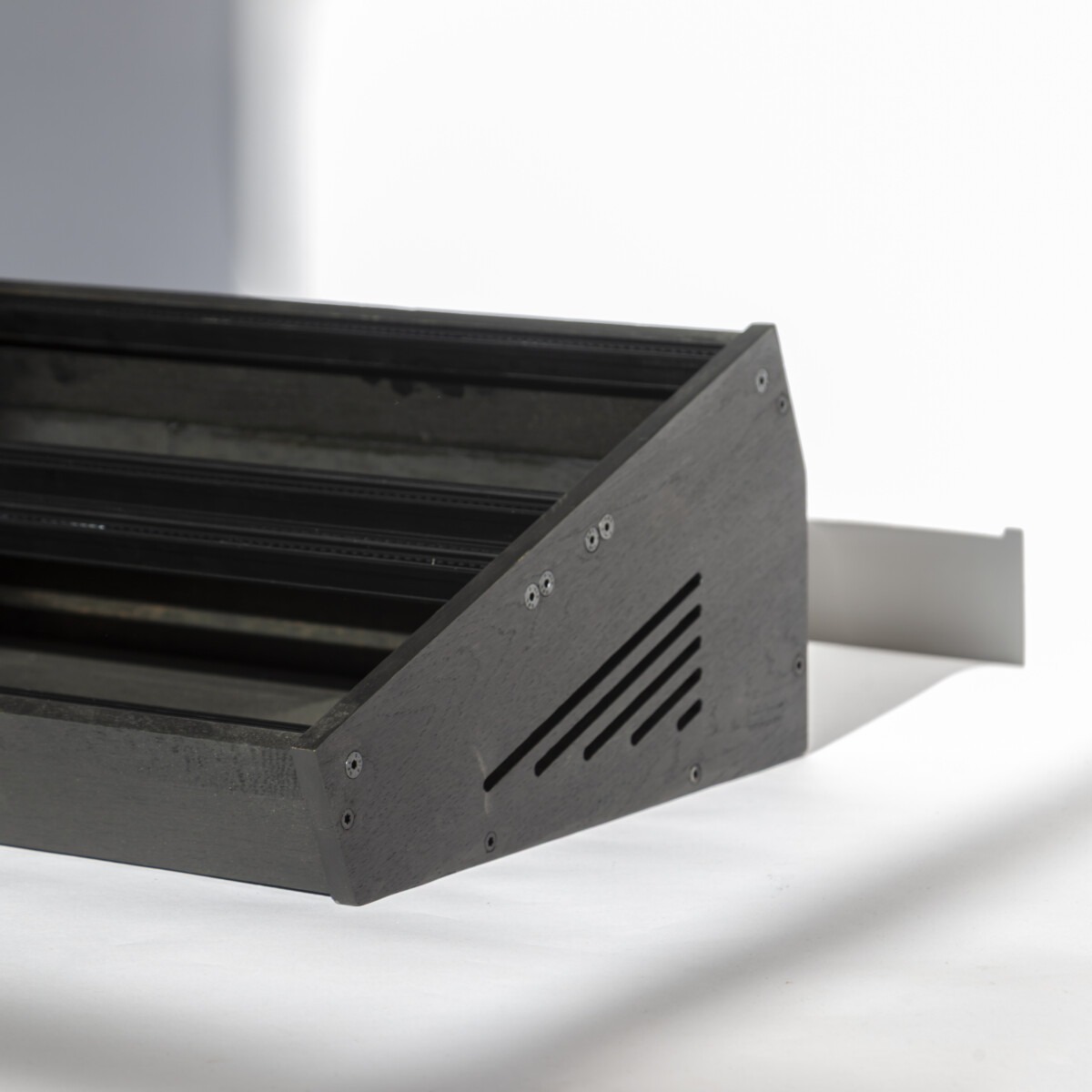

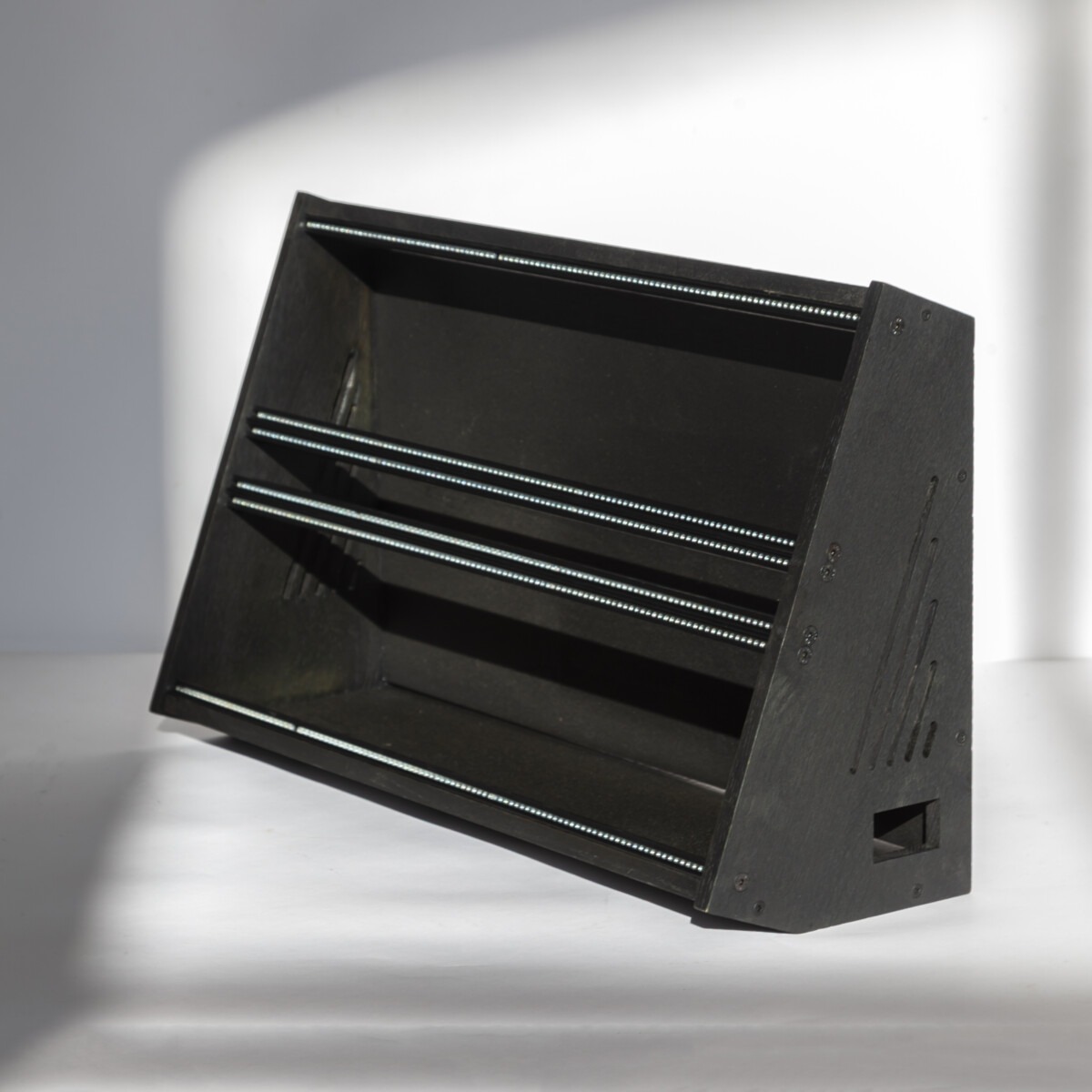

This case was developed on the request of one of our beloved YouTubers and is a slanted case with 2x 3U rows and a 1U (Intellijel) row in the middle. It can be positioned flat, but also be put upwards for storage or to use vertically. It comes oiled in brown with aluminum rails & threaded inserts for easy module install!

104HP is a perfect size for a good case! Power is still optional.

Case is in stock, while most of the cases are custom and/or made to order, hence the discount!

Eurorack case size
eurorack size - 7U (1x 1U, 2x 3U) Slanted design, 104HP
1 × eurorack size - 7U (1x 1U, 2x 3U) Slanted design, 104HP
Original price was: €482.Current price is: €386.
Oak finish
wood finish - Black coloured linseed oil
1 × wood finish - Black coloured linseed oil
Original price was: €79.Current price is: €40.
Rails colour
Placeholder
3 × Rails colour per 1U or 3U pair - Black rails 104HP
€9
Rails insert
inserts 1U or 3U pair - 104HP pair of M3 threaded inserts
3 × inserts 1U or 3U pair - 104HP pair of M3 threaded inserts
€19
Power socket
Placeholder
1 × power socket - Socket in left sidepanel
Original price was: €22.Current price is: €0.
Power supply

The Meanwell RT-65B is a low cost and efficient power supply, giving loads of power for a good price. By far the most popular and most sold PSU for Eurorack. The PSU's always come mounted to the case. The power is either DIY or pre-wired on all low-voltage wires & ground. The final connection from the socket to the PSU has to be done by yourselves (no soldering, only cable stripping & a few screws).

RT-65B Specs: +12V 3.5A -12V 1.0A and 5V 8.0A, total output power 65W.


Alternativelly there are also 2 options by Konstantlab:
HammerPWR & SeventyPWR are externally powered from a power brick. This creates the option to fully wire the system for you and ready to go, since there is no high voltage inside the case. These power supplies have been developped for Eurorack specifically, are known for their power & low noise but to come at a cost.

- HammerPWR (100 Watt output) + MeanWell 120Watt adapter, +12V 5A (2x 2.5A), -12V 2.5A and +5V 2.0A

- SeventyPWR (70 Watt output) + MeanWell 90 Watt adapter, +12V 2.5A, -12V 2.5A, +5V 2.0A

- CompactPWR (35 Watt outpot) is an active bus board that combines power generation and distribution, so no bussboards needed. 1250mA on +12V and -12V rails, 1000mA on +5V

Bussboards

Power to your modules are supplied by bussboards
When you select a MeanWell PSU and select an amount of bussboards here, you'll get the Modular Synth Lab Bussboards with 20 headers, when you've select a HammerPWR or SeventyPWR as PSU, the selected bussboards here will automatically be the Konstantlab's filtered bussboards with 19 connectors each.

Recommended to have a maximum of 3 or 4 bussboards per PSU.

Choose for a DIY cable kit and assemble it yourselves/with local help. or choose for a system where all low-voltage cables have been pre-wired! For the HammerPWR & SeventyPWR PSU this means that the case is ready to go, with the Meanwell RT65B you'll only need to connect the socket(s) to the PSU('s).

Triple-layer shipping carton (optional)
A super-strong triple-layered cardboard boxes for small & regular size cases. The case itself is packed inside with foam blocks. Quite a good solution for international transport as well!
