Widths

These are (my) standard HP sizes:

  • 60HP = 306mm + 2x 12mm sides = 330mm
  • 84HP = 428mm + 2x 12mm sides = 452mm
  • 104HP = 530mm + 2x 12mm sides = 554mm
  • 126HP = 642mm + 2x 12mm sides = 666mm
  • 160HP = 814mm + 2x 12mm sides = 838mm
  • 196HP = 997mm + 2x 12mm sides = 1021mm
  • I cut the rails to size myself, so other HP possible on request

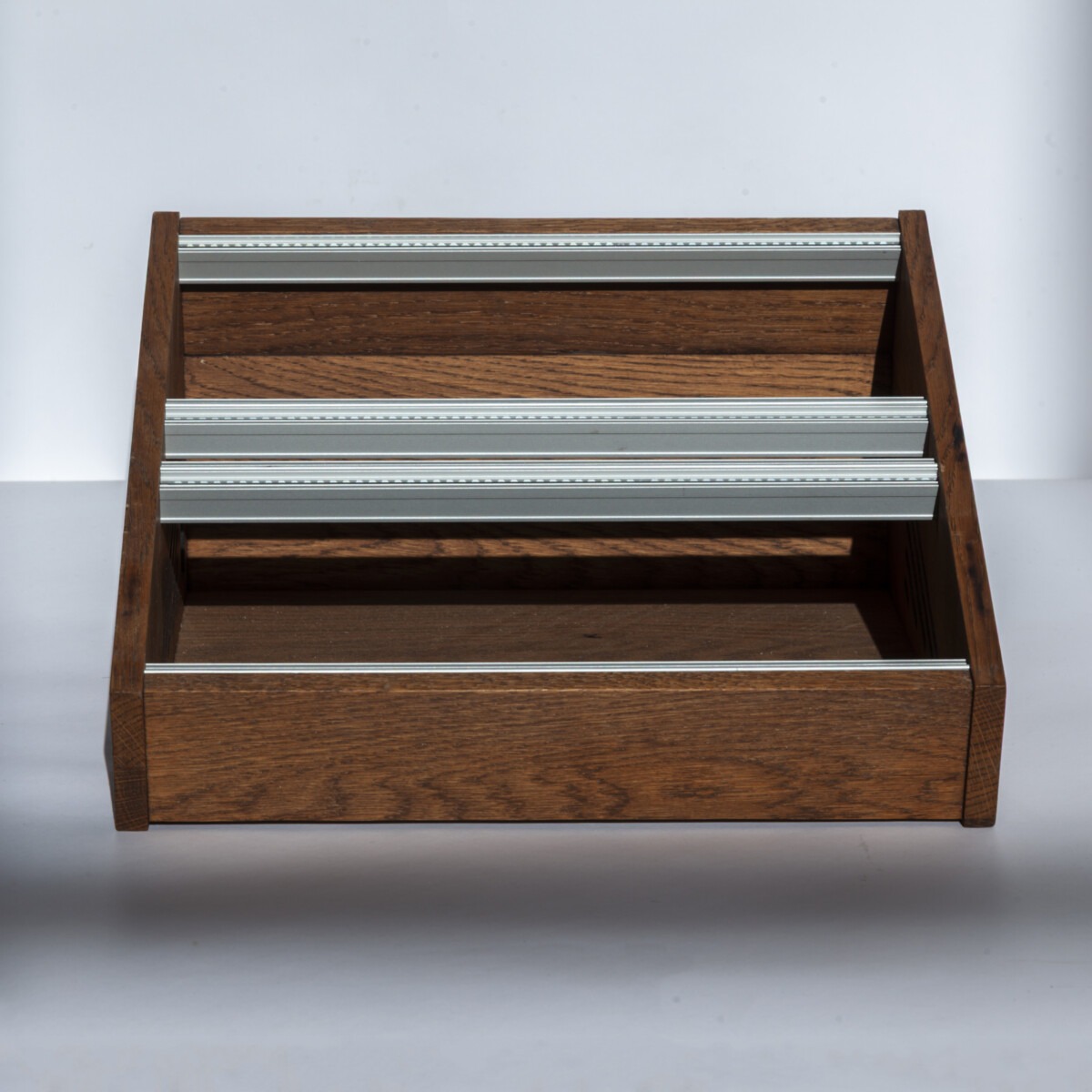

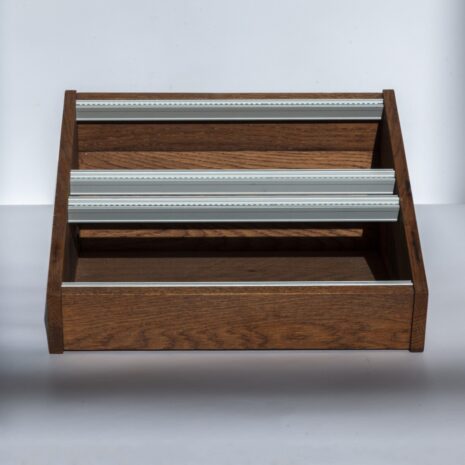

7U 60HP Compact Eurorack case in brown

Original price was: €404.Current price is: €292.

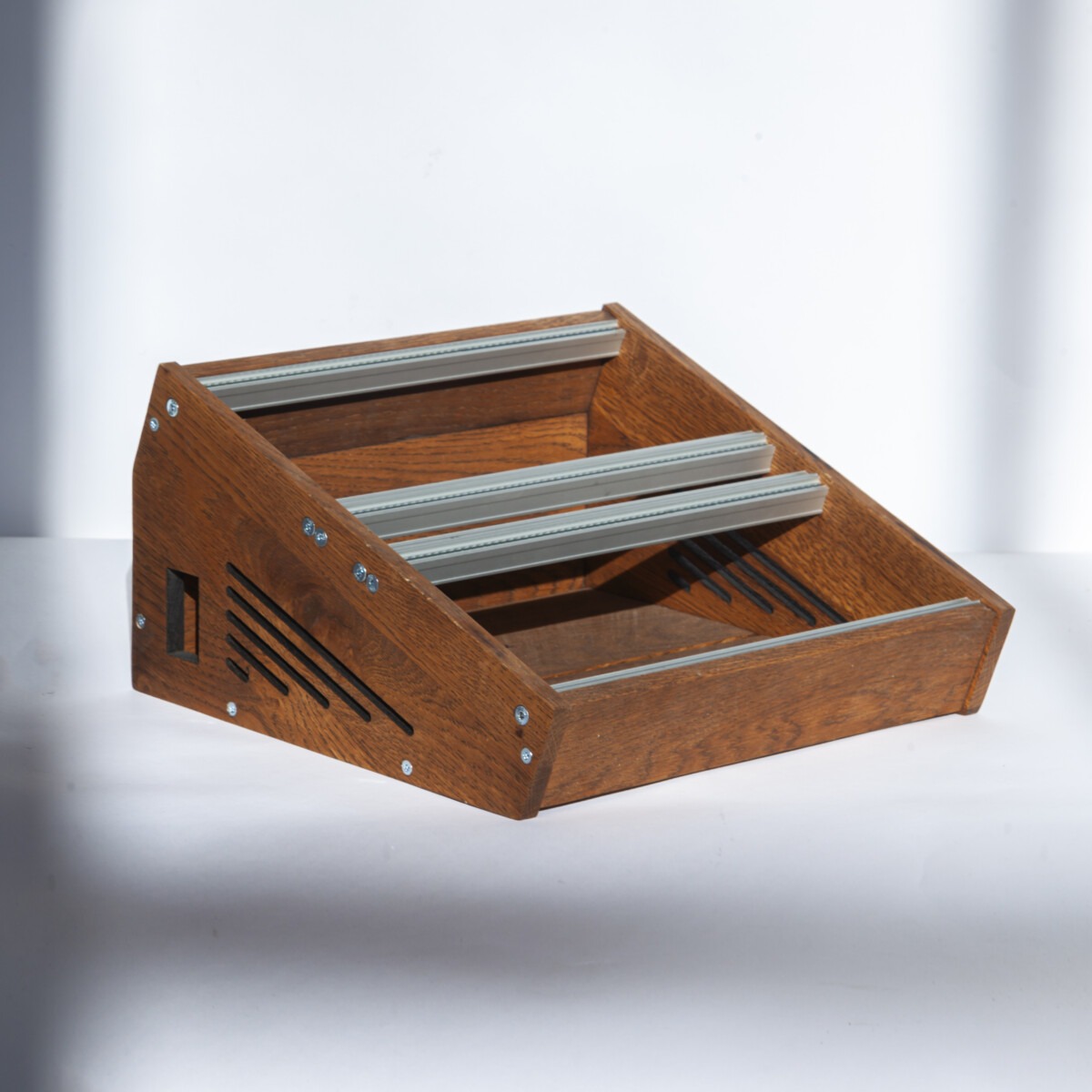

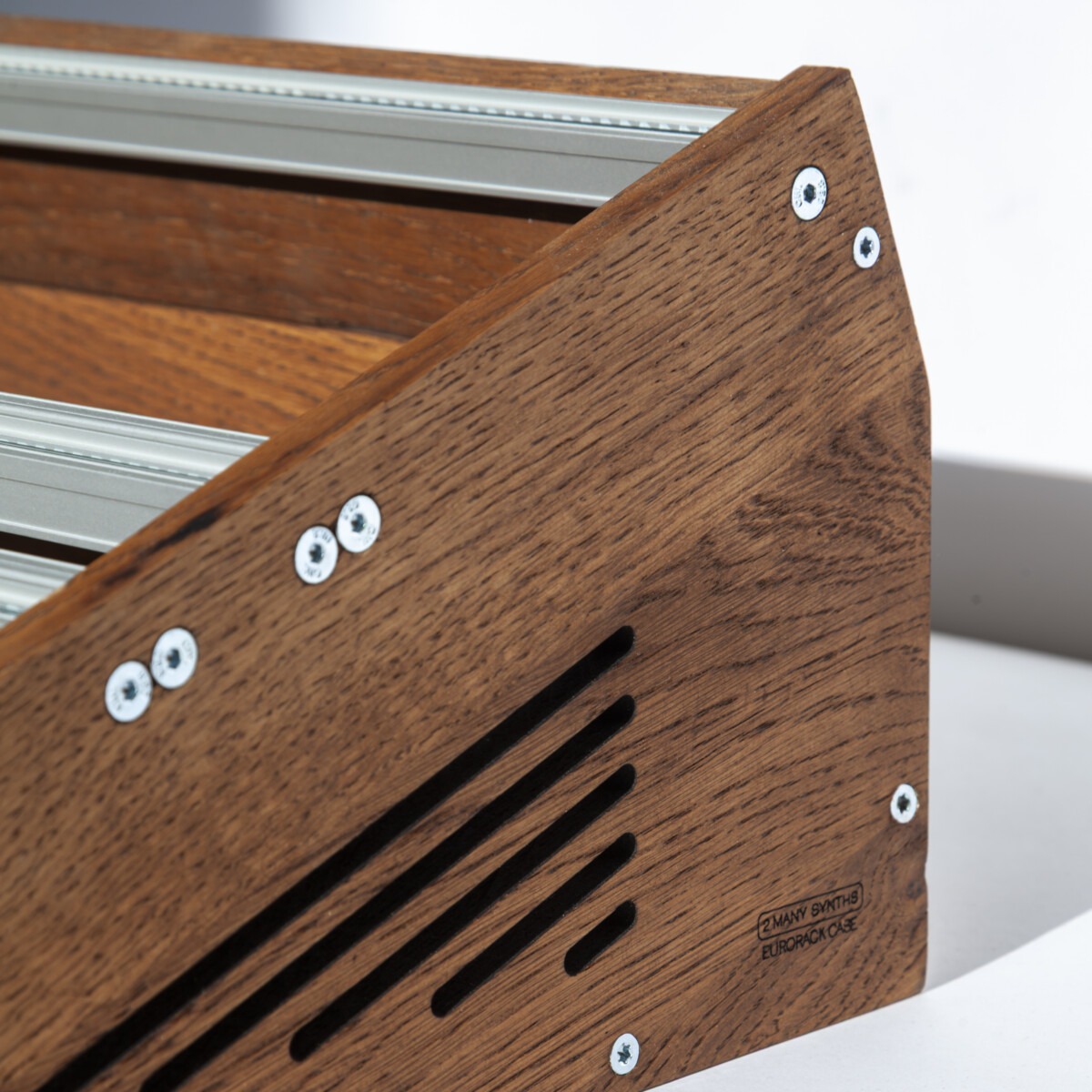

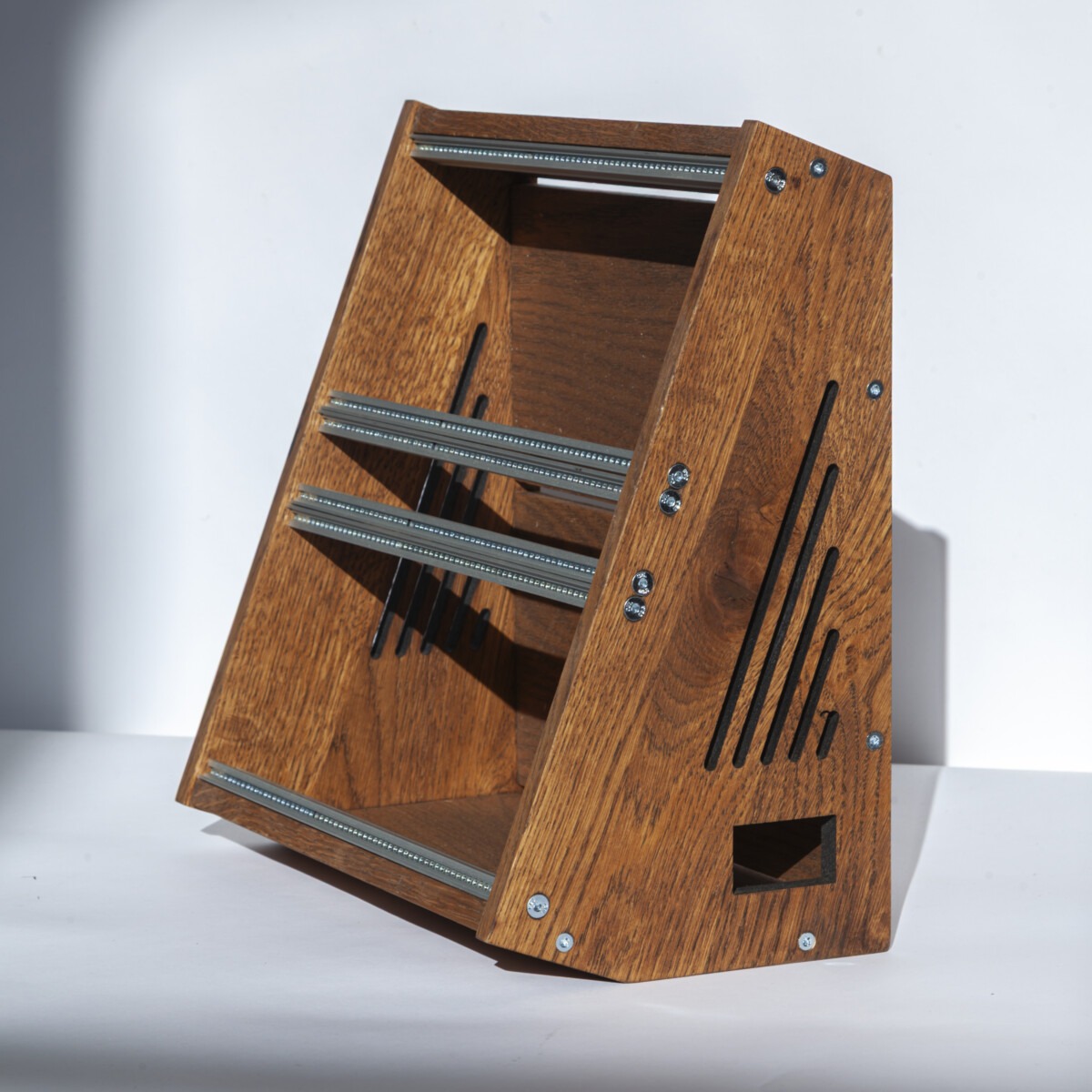

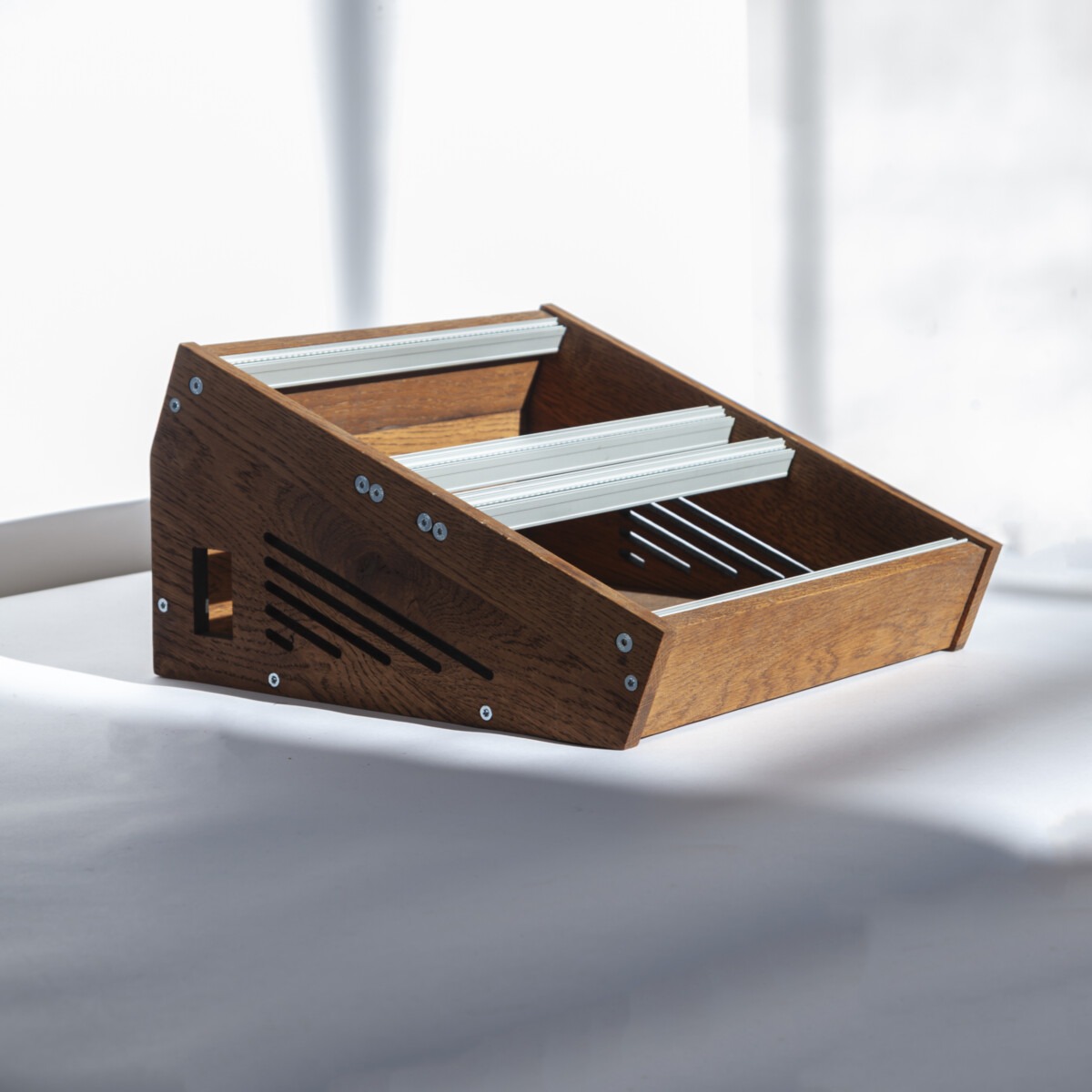

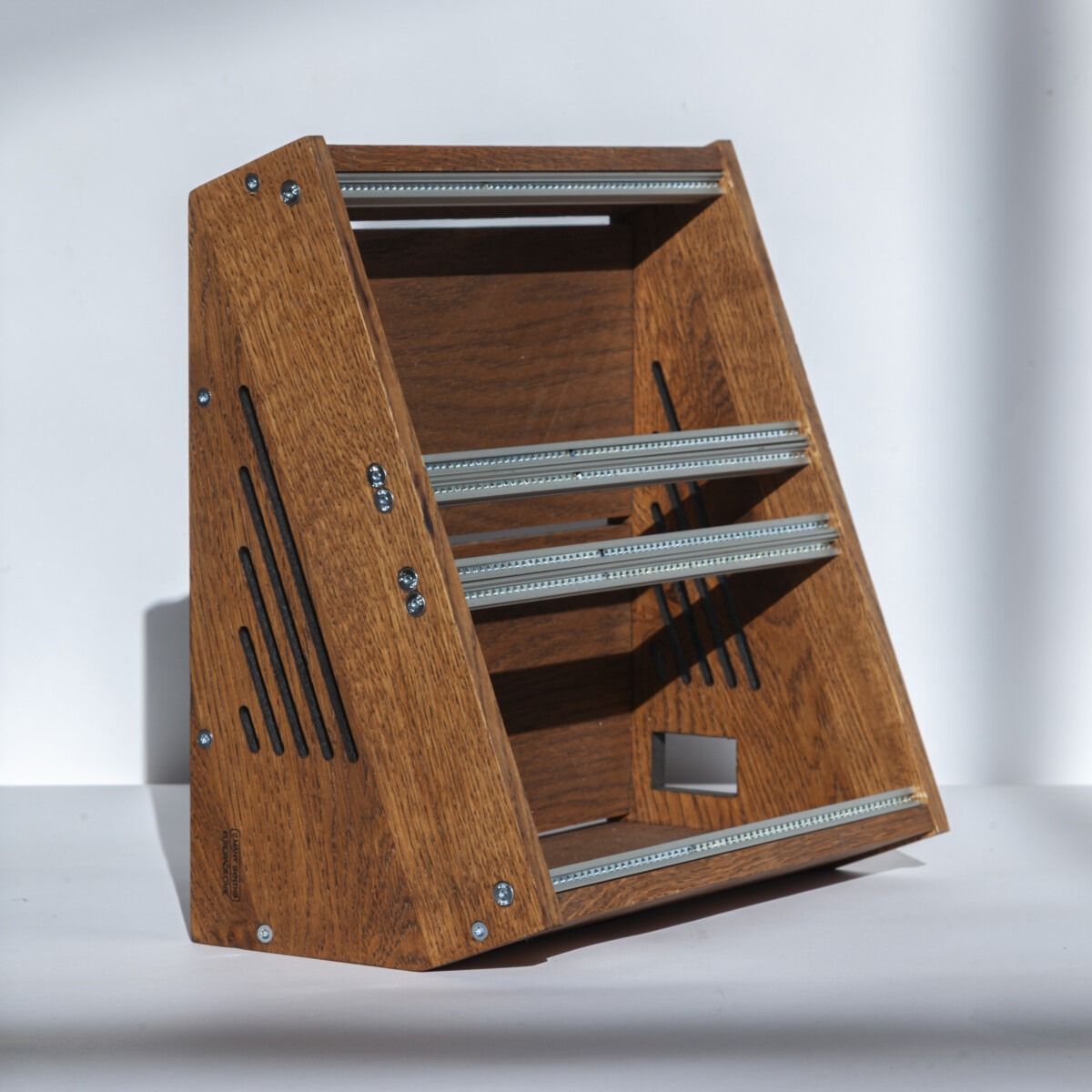

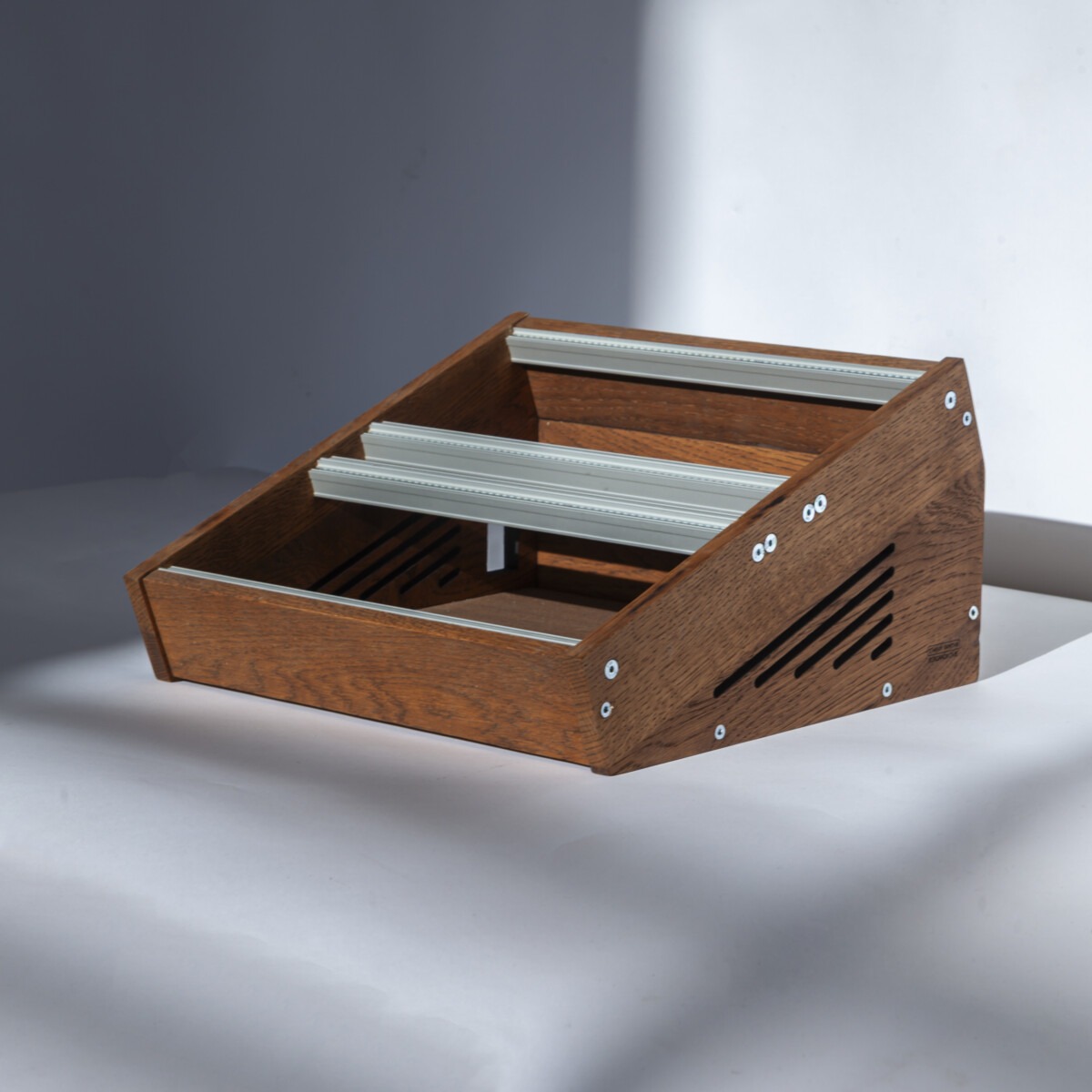

This case was developed on the request of one of our beloved YouTubers and is a slanted case with 2x 3U rows and a 1U (Intellijel) row in the middle. It can be positioned flat, but also be put upwards for storage or to use vertically. It comes oiled in brown with aluminum rails & threaded inserts for easy module install!

60HP is a nice and compact formfactor for focussed patching, but do note power space is limited. So either a power module or the new CompactPWR by Konstantlab will work.

The case is a stock case as I make most of the cases on order/custom. It is not 100% perfect .. but hey, i’m a perfectionist and it has a good discount!

Eurorack case size
Placeholder
1 × eurorack size - 7U (1x 1U 2x 3U), 60HP
Original price was: €277.Current price is: €222.
Oak finish
wood finish - Brown coloured linseed oil
1 × wood finish - Brown coloured linseed oil
Original price was: €69.Current price is: €35.
Rails colour
Placeholder
3 × Rails colour per 1U or 3U pair - Aluminum rails (all sizes)
€0
Rails insert
inserts 1U or 3U pair - 60HP pair of M3 inserts or smaller
3 × inserts 1U or 3U pair - 60HP pair of M3 inserts or smaller
€12
Power socket
Placeholder
1 × power socket - Socket in left sidepanel
Original price was: €22.Current price is: €0.
Power supply

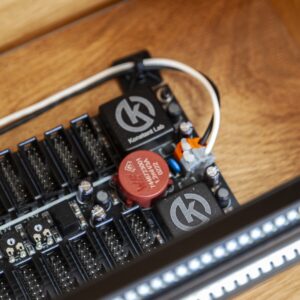

CompactPWR is an active bus board that combines power generation and distribution, delivering 35W of clean power (1250mA on +12V and -12V rails, 1000mA on +5V) with comprehensive protection features and multiple filtering layers for minimal noise. This space-saving solution (174mm x 79mm) offers flexible power options including a standard 12-24V DC input or optional USB-C connectivity, ensuring your Eurorack modules perform at their absolute best while requiring minimal space in 3U, 6U, and 7U cases.
Bussboards
Due to the size of the case (only 60HP) the normal filtered bussboards do not fit, but the compact version by Konstantlab does, so I'll place that instead.
Qty:-+
Triple-layer shipping carton (optional)
A super-strong triple-layered cardboard boxes for small & regular size cases. The case itself is packed inside with foam blocks. Quite a good solution for international transport as well!

Only 1 in stock
