Home » Shop » Eurorack » 7U 84HP Eurorack case in solid oak with black rails



Widths

These are (my) standard HP sizes:

  • 60HP = 306mm + 2x 12mm sides = 330mm
  • 84HP = 428mm + 2x 12mm sides = 452mm
  • 104HP = 530mm + 2x 12mm sides = 554mm
  • 126HP = 642mm + 2x 12mm sides = 666mm
  • 160HP = 814mm + 2x 12mm sides = 838mm
  • 196HP = 997mm + 2x 12mm sides = 1021mm
  • I cut the rails to size myself, so other HP possible on request



7U 84HP Eurorack case in solid oak with black rails

Original price was: €641.Current price is: €513.

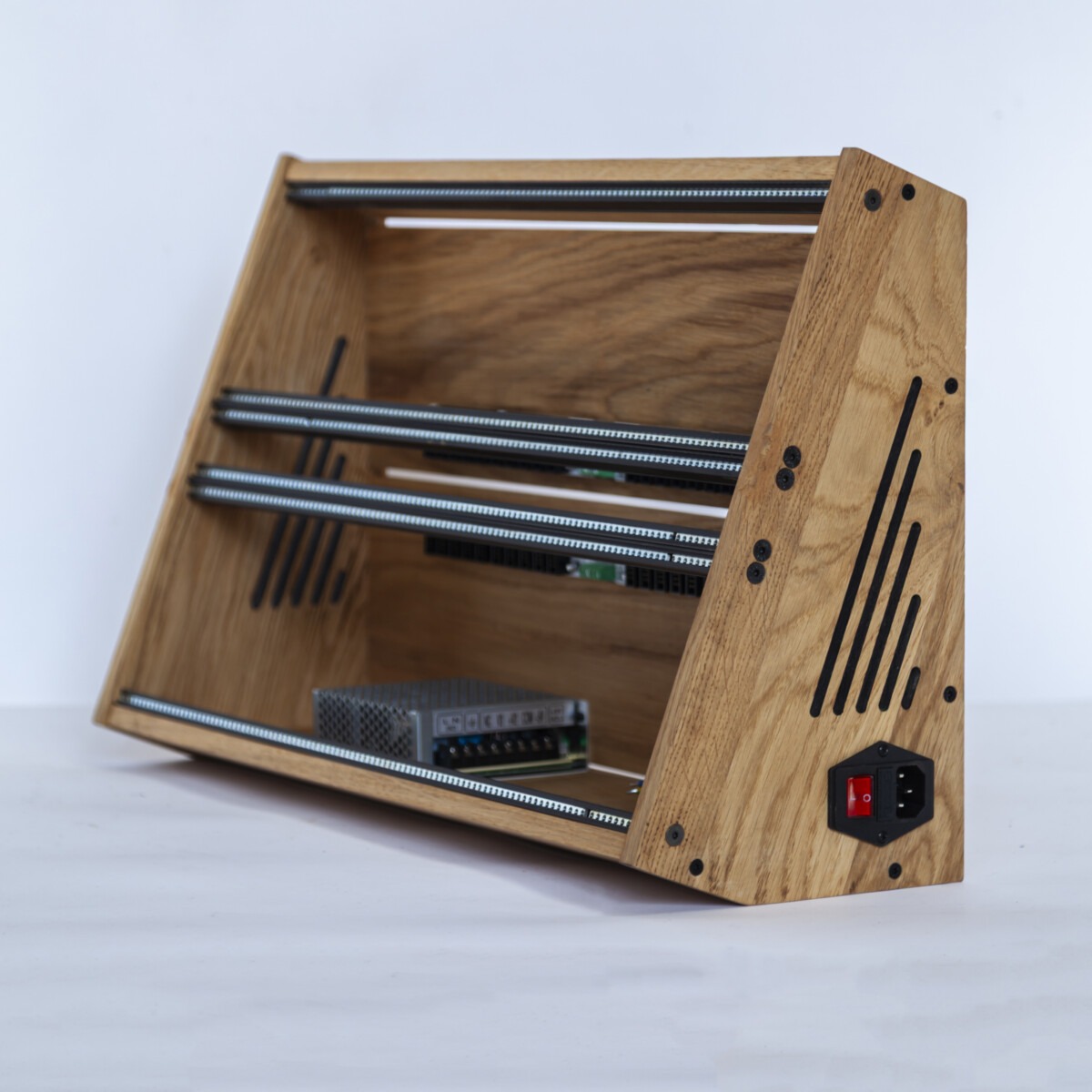

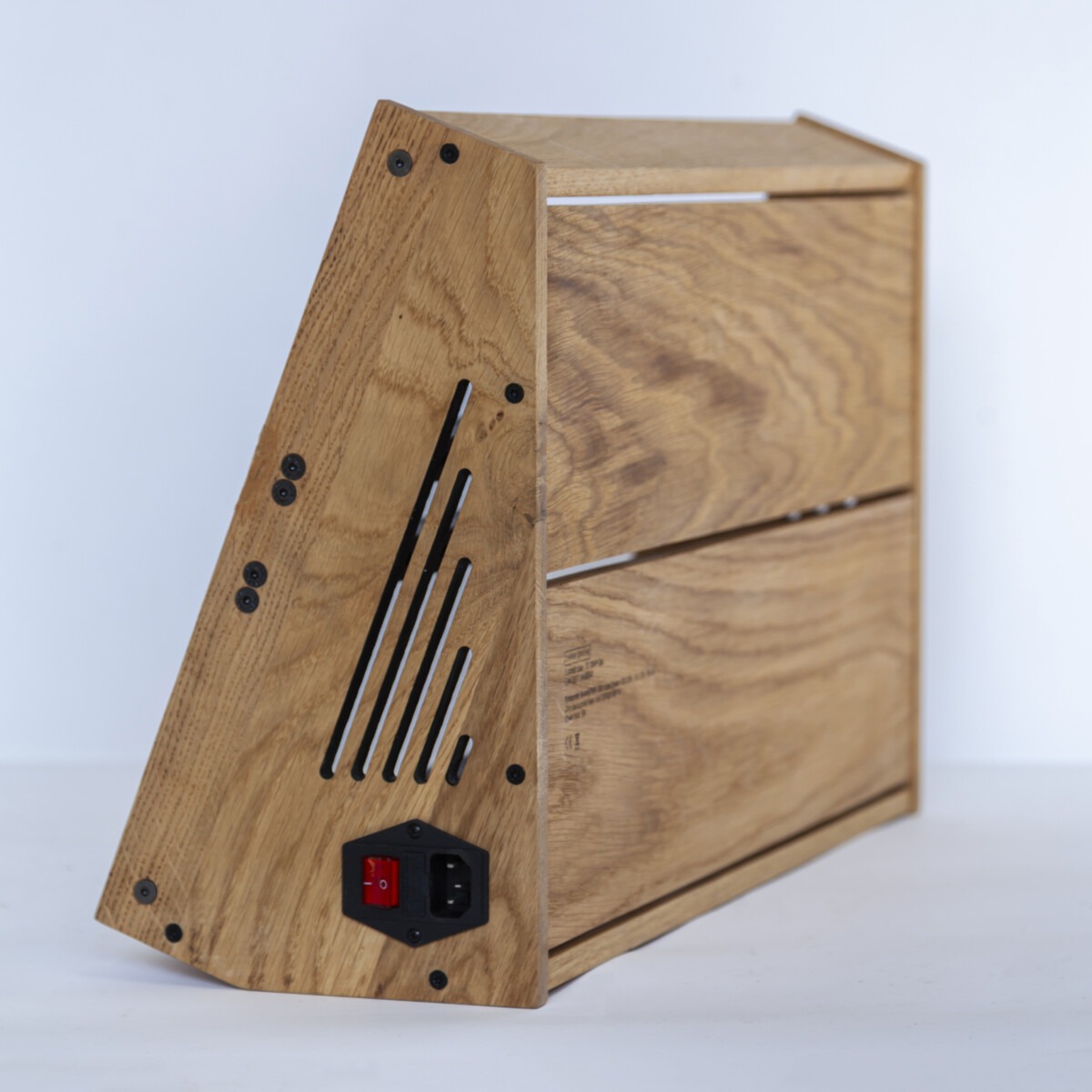

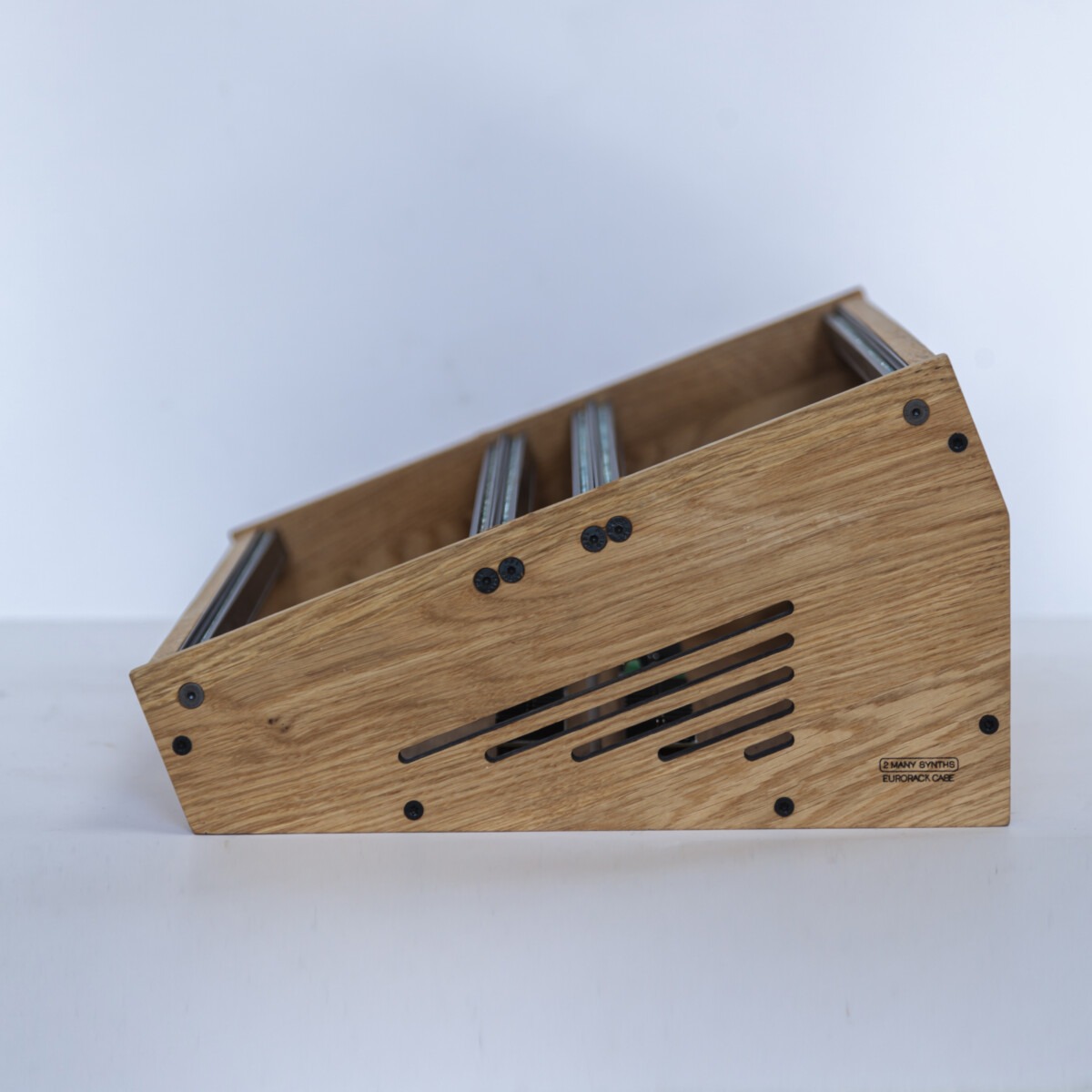

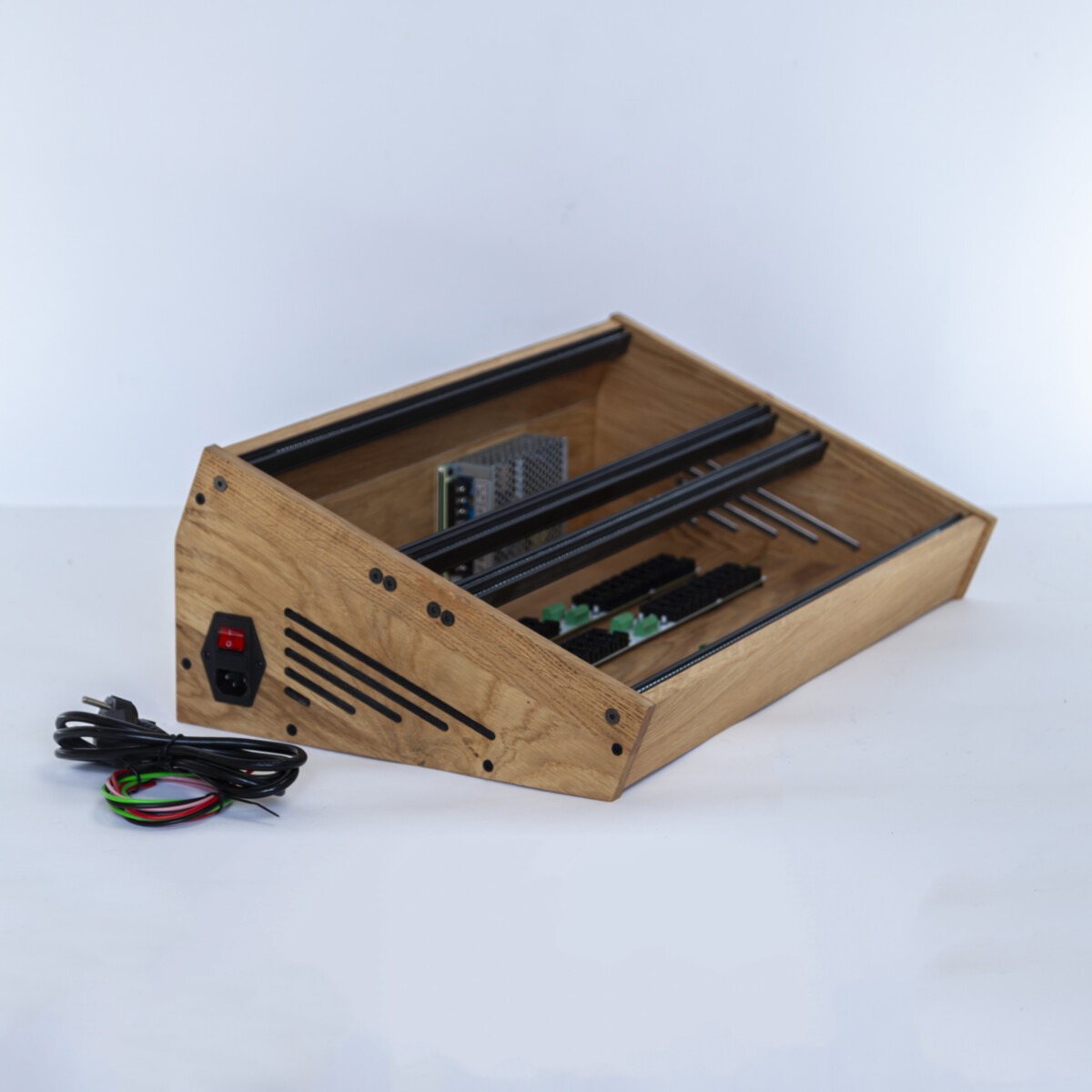

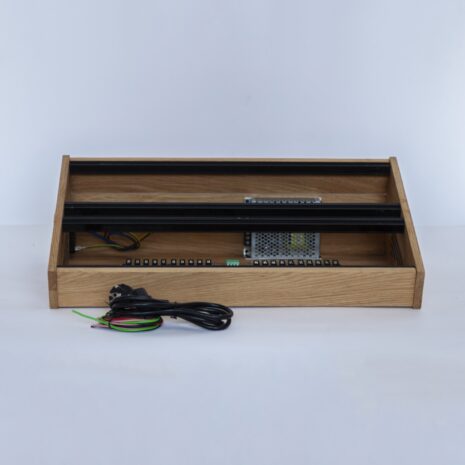

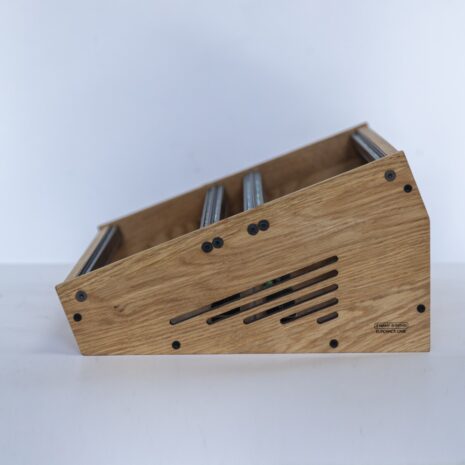

This case was developed on the request of one of our beloved YouTubers and is a slanted case with 2x 3U rows and a 1U (Intellijel) row in the middle. It can be positioned flat, but also be put upwards for storage or to use vertically.

Do note that the modules will be upside down when tilted unless you put them in when facing it upwards).

Dimensions: Appr. 185mm high and 340mm deep, width 530mm + 24mm = 584mm.

Module depth: Appr. 50mm on the bottom row and 80mm on the top row.

Eurorack case size
eurorack size - 7U (1x 1U, 2x 3U) Slanted design, 84HP
1 × eurorack size - 7U (1x 1U, 2x 3U) Slanted design, 84HP
€389
Oak finish
wood finish - Osmo hardwax oil
1 × wood finish - Osmo hardwax oil
€29
Rails colour
Placeholder
3 × Rails colour per 1U or 3U pair - Black rails 84HP
€8
Rails insert
inserts 1U or 3U pair - 84HP pair of M3 threaded inserts
3 × inserts 1U or 3U pair - 84HP pair of M3 threaded inserts
€16
Power supply

The Meanwell RT-65B is a low cost and efficient power supply, giving loads of power for a good price. By far the most popular and most sold PSU for Eurorack. The PSU's always come mounted to the case. The power is either DIY or pre-wired on all low-voltage wires & ground. The final connection from the socket to the PSU has to be done by yourselves (no soldering, only cable stripping & a few screws).

RT-65B Specs: +12V 3.5A -12V 1.0A and 5V 8.0A, total output power 65W.

PSU - Meanwell RT65-B (65W output)
1 × PSU - Meanwell RT65-B (65W output)
€39
Bussboards

Power to your modules are supplied by bussboards
When you select a MeanWell PSU and select an amount of bussboards here, you'll get the Modular Synth Lab Bussboards with 20 headers

Choose for a DIY cable kit and assemble it yourselves/with local help

Bussboards - Bussboard, with DIY cable kit
2 × Bussboards - Bussboard, with DIY cable kit
€45
Power socket
Placeholder

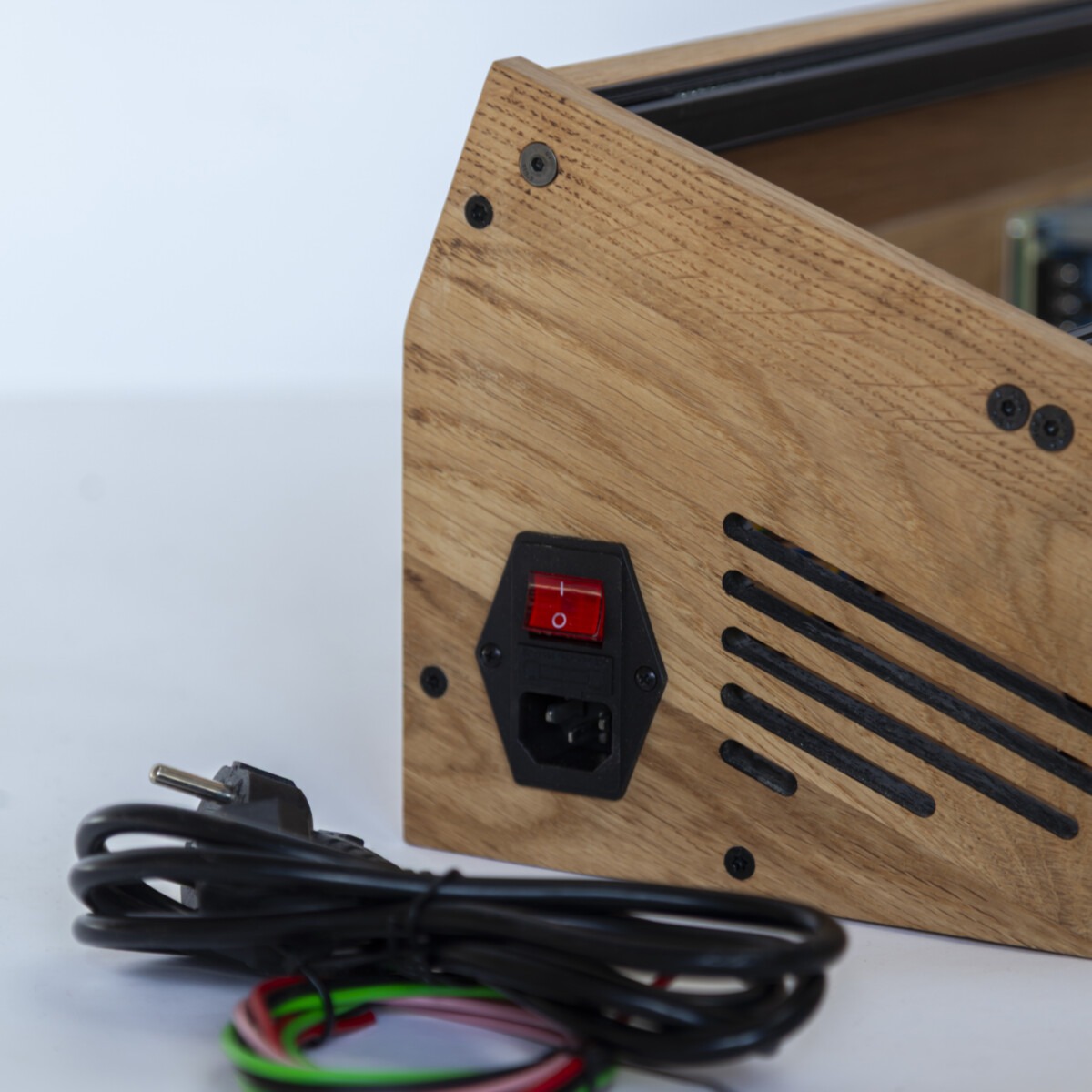

1 × power socket - Socket in left sidepanel
€22
Power cable
AC Power Cable – max. 250VAC
Triple-layer shipping carton (optional)
A super-strong triple-layered cardboard boxes for small & regular size cases. The case itself is packed inside with foam blocks. Quite a good solution for international transport as well!

Only 1 in stock
