7U Slanted case

From €398

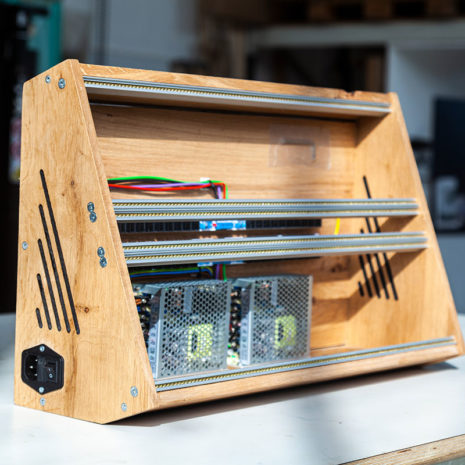

This case was developed on the request of one of our beloved YouTubers and is a slanted case with 2x 3U rows and a 1U (Intellijel) row in the middle. It can be positioned flat, but also be put upwards for storage or to use vertically. Please mention on checkout if you want the case placed upwards when also selecting a power socket, I’ll then make sure the socket is on the bottom or on one of the sides so it is not in the way.

(Do note that the modules will be upside down when tilted unless you put them in when facing it upwards).

Dimensions: Appr. 185mm high and 340mm deep, width depending on the HP amount + appr. 24mm. Module depth appr. 50mm on the bottom row and 80mm on the top row.

This product only selects the 7U model, for other models check the configurator.

NEW: The width of the case is now possible in steps of 2HP! For example between 86HP-104HP for a case between 86HP and 104HP. For a specific width, choose the correct range and mention the desired width in the checkout. When you do not mention a specific amount you'll automatically get the maximum width (so 104HP in this example).
Select the type and amount of inserts you need here:
For the M3 slide nuts you can select them as a multitude of 20 pcs, just select roughly how many you would like in your complete case and they will be distributed accordingly.
For the threaded inserts you need to select the number of pairs you need per 1U or 3U row.
Power supply

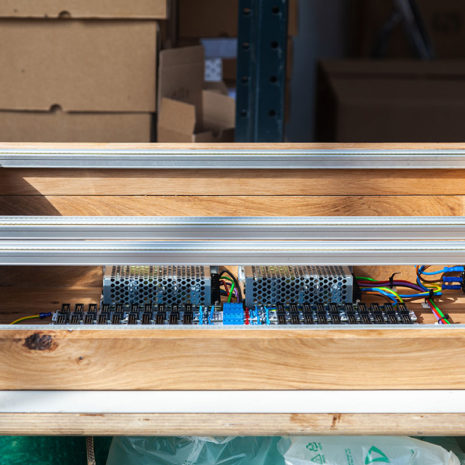

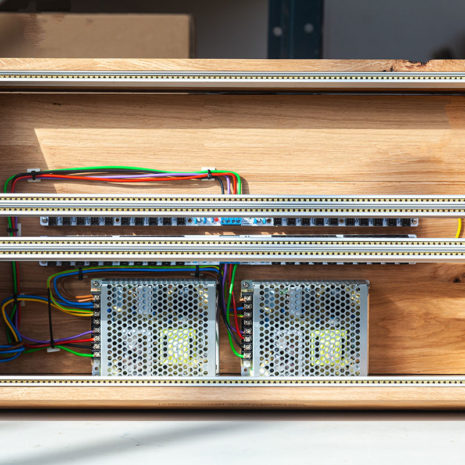

The Meanwell RT-65B is a low cost and efficient power supply, giving loads of power for a good price. By far the most popular and most sold PSU for Eurorack. The PSU's always come mounted to the case. The power is either DIY or pre-wired on all low-voltage wires & ground. The final connection from the socket to the PSU has to be done by yourselves (no soldering, only cable stripping & a few screws).

RT-65B Specs: +12V 3.5A -12V 1.0A and 5V 8.0A, total output power 65W.

Alternativelly there are also 2 options by Konstantlab:
HammerPWR & SeventyPWR are externally powered from a power brick. This creates the option to fully wire the system for you and ready to go, since there is no high voltage inside the case. These power supplies have been developped for Eurorack specifically, are known for their power & low noise but to come at a cost.

- HammerPWR (100 Watt output) + MeanWell 120Watt adapter, +12V 5A (2x 2.5A), -12V 2.5A and +5V 2.0A

- SeventyPWR (70 Watt output) + MeanWell 90 Watt adapter, +12V 2.5A, -12V 2.5A, +5V 2.0A

Calculation power output example based on ModularGrid:
(1.6A on +12V = 19,2W) + (0.8A on -12V = 9,6W) + (0.1A on 5V = 0,5) = Total output power of 29,3 Watt


Power to your modules are supplied by bussboards
When you select a MeanWell PSU you'll get the Modular Synth Lab Bussboards with 20 headers, when you select a HammerPWR or SeventyPWR you automatically get the Konstantlab's filtered bussboards with 19 connectors each.

Recommended to have a maximum of 3 or 4 bussboards per PSU.

Choose for a DIY cable kit and assemble it yourselves/with local help. or choose for a system where all low-voltage cables have been pre-wired! For the HammerPWR & SeventyPWR PSU this means that the case is ready to go, with the Meanwell RT65B you'll only need to connect the socket(s) to the PSU('s).

Shipping box (optional)
Alternatively to the shipping crates, I now also offer super-strong triple-layered cardboard boxes for the smaller cases. The case itself is packed inside with foam blocks. Quite a good solution for international transport!
Power socket
Please order the corresponding socket, if you want the case placed upwards when also selecting a power socket make sure the socket is on the bottom or on one of the sides so it is not in the way.
Black rails?
Wood finish

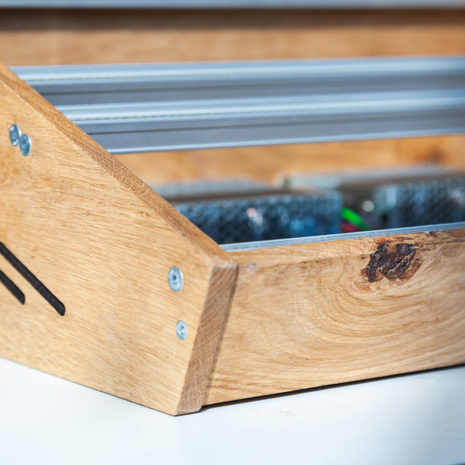

This case has been designed in 'pure oak ' look, but can also be made in different colours!

Made to order (currently estimated 4 to 8 weeks)
