Custom Vermona PERfourMER case with Eurorack

365

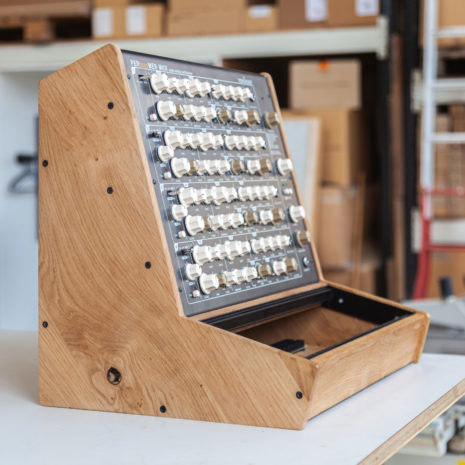

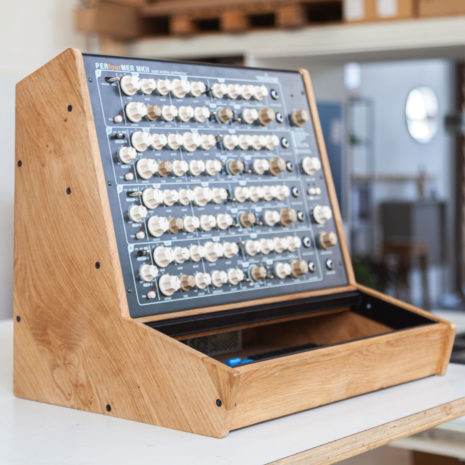

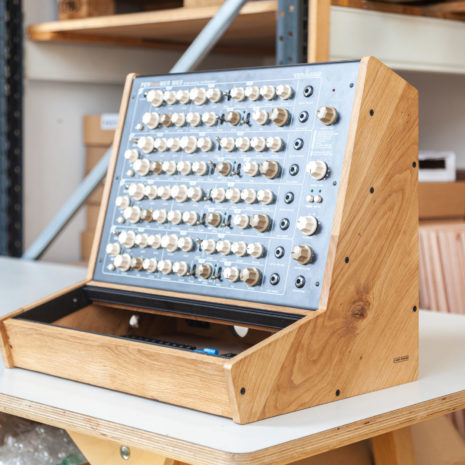

I love to do custom work! Especially if I get a nice request like this custom case for a Vermona PERfourMER MKII in combination with a powered Eurorack 84HP row in front 🙂 what a beauty, all honours to the client for the idea and Vermona for their amazing unit obviously.

NOTE: Vermona synth itself is obviously excluded on the purchase! Eurorack rails is in it and power optional below.

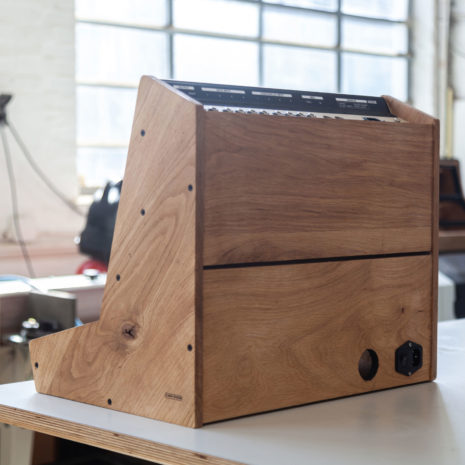

p.s. In the pictures the Eurorack rails has side-panels for this first model, but I will attach the rails directly to the wood like in all my other cases on the production models (last image in the gallery).

For other widths and/or other models of cases, check out my configurator!

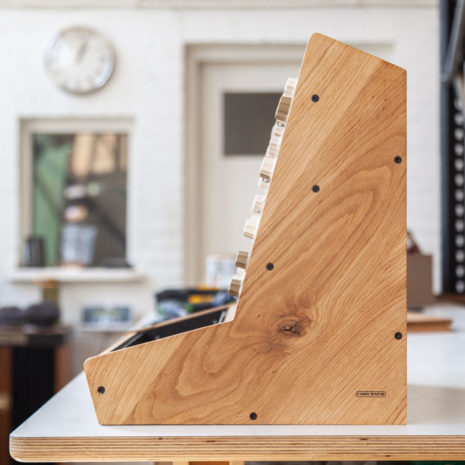

Dimensions: Depth appr 34cm, height appr 41cm

Case
Placeholder
1 × Vermona case + 84HP Eurorack
315
Finish
Choose the wood finish/colour here
Black rails
Select this if you want black instead of aluminum rails (looks nicer with the Vermona!) 1x per 3U row
Qty:-+
Inserts
Select the type and amount of inserts you need here:
Bussboards

Power to your modules are supplied by the ModularSynthLab bussboards, with 20 connector each (cut to size on cases smaller then 84HP).

Recommended to have a maximum of 3 bussboards per PSU.

Choose for a DIY cable kit and assemble it yourselves/with local help. or choose for a system where all low-voltage cables have been pre-wired! With the Meanwell RT65B you'll only need to connect the socket(s) to the PSU('s).

Qty:-+
Power supply

The Meanwell RT-65B is a low cost and efficient power supply, giving loads of power for a good price. By far the most popular and most sold PSU for Eurorack. The PSU's always come mounted to the case. The power is either DIY or pre-wired on all low-voltage wires & ground. The final connection from the socket to the PSU has to be done by yourselves (no soldering, only cable stripping & a few screws).

RT-65B Specs: +12V 3.5A -12V 1.0A and 5V 8.0A, total output power 65W.


Alternativelly there are also 2 options by Konstantlab:
HammerPWR & SeventyPWR are externally powered from a power brick. This creates the option to fully wire the system for you and ready to go, since there is no high voltage inside the case. These power supplies have been developped for Eurorack specifically, are known for their power & low noise but to come at a cost.

- HammerPWR (100 Watt output) + MeanWell 120Watt adapter, +12V 5A (2x 2.5A), -12V 2.5A and +5V 2.0A

- SeventyPWR (70 Watt output) + MeanWell 90 Watt adapter, +12V 2.5A, -12V 2.5A, +5V 2.0A


Calculation power output example based on ModularGrid:
(1.6A on +12V = 19,2W) + (0.8A on -12V = 9,6W) + (0.1A on 5V = 0,5) = Total output power of 29,3 Watt

Qty:-+
Power cable
Power it up and choose your cable type, you might also have one lying around since this is standard cables.
Triple-layer shipping box

Made to order
