Eurorack hanging case 15U
configurator

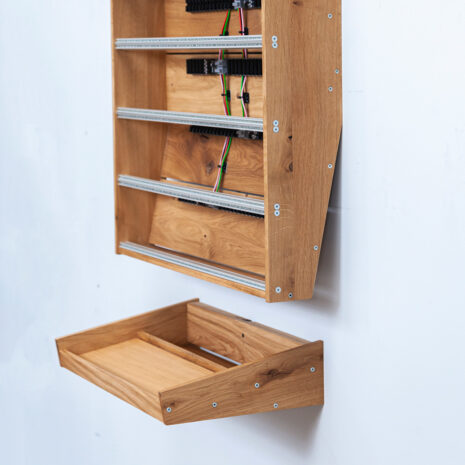

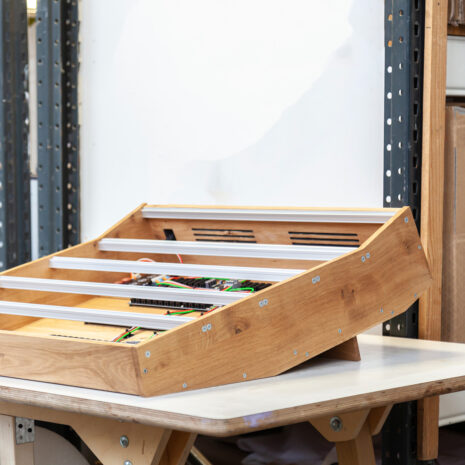

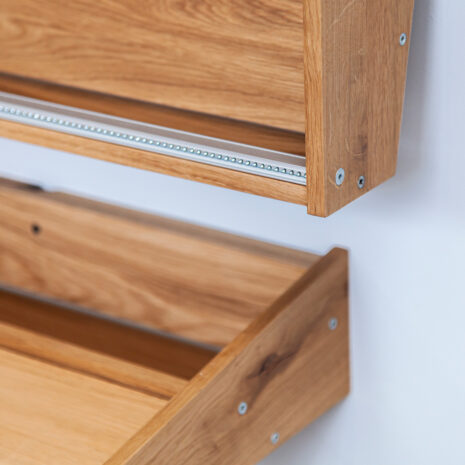

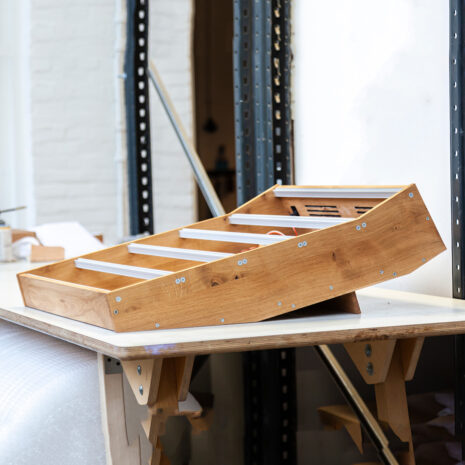

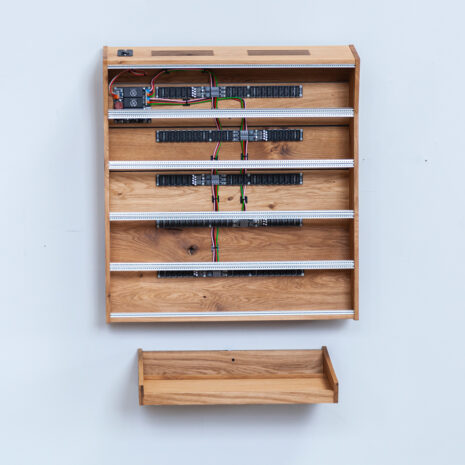

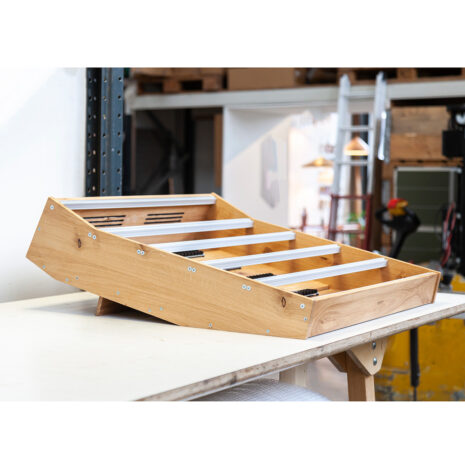

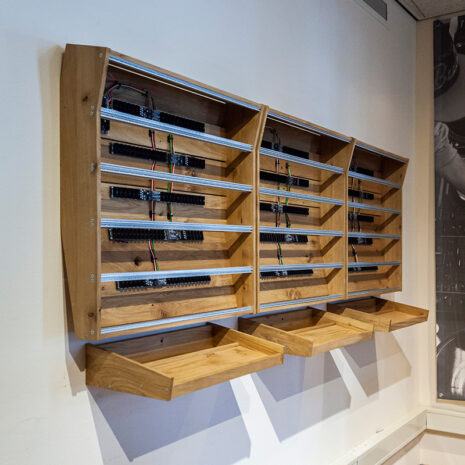

A hanging 15U 126HP (or different width) case, which can be taken off the wall using a ‘French cleat’ and with a support to put it on the table!

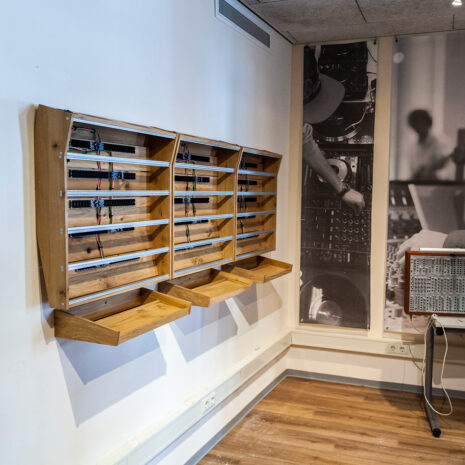

Quite a special case which I designed as a commission for ‘Artez Conservatorium’. However .. I can off course make more and in different configurations which you can choose here!
All orders are made-to-order, so you can select all options here and see how they inflict the price.
Two layers of Osmo is my standard finish, a hard-wax oil which keeps the solid oak look but gives a nice matt protection.
As an alternative there now also is linseed oil 'natur' as a finish option, that is the coloured oil without colour. It gives a little more classic & yellowish finish with a little more touch of the wood grain in comparison to the Osmo oil if you prefer.
For the coloured cases, I use Satin Wood Oil, based on pure linseed oil and natural pigments. Standard colours are available here, but loads of colours are available for custom work!
Standard the rails is in aluminum colour, but optionally it can be replaced by a black version.
Please select a multitude of this per 1U or 3U row, so if you order a 9U case you'll have 3x 3u = 3 rows x black surplus.
For the M3 slide nuts, you can select them as a multitude of 20 pcs, just select roughly how many you would like in your complete case and they will be distributed accordingly.
For the threaded inserts you need to select the number of pairs you need per 1U or 3U row; so with 3U just 1x, with 6U you'll need 2x, etc. Note that the inserts have a maximum length from the factory, so with larger cases they can be build up out of two pieces.
The Meanwell RT-65B is a low cost and efficient power supply, giving loads of power for a good price. By far the most popular and most sold PSU for Eurorack. The PSU's always come mounted to the case. The power is either DIY or pre-wired on all low-voltage wires & ground. The final connection from the socket to the PSU has to be done by yourselves (no soldering, only cable stripping & a few screws).
RT-65B Specs: +12V 3.5A -12V 1.0A and 5V 8.0A, total output power 65W.
Alternativelly there are also 2 options by Konstantlab:

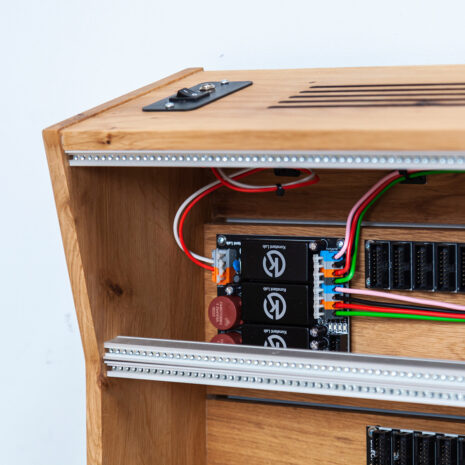

HammerPWR & SeventyPWR are externally powered from a power brick. This creates the option to fully wire the system for you and ready to go, since there is no high voltage inside the case. These power supplies have been developped for Eurorack specifically, are known for their power & low noise but to come at a cost.
- HammerPWR (100 Watt output) + MeanWell 120Watt adapter, +12V 5A (2x 2.5A), -12V 2.5A and +5V 2.0A
- SeventyPWR (70 Watt output) + MeanWell 90 Watt adapter, +12V 2.5A, -12V 2.5A, +5V 2.0A
Calculation power output example based on ModularGrid:
(1.6A on +12V = 19,2W) + (0.8A on -12V = 9,6W) + (0.1A on 5V = 0,5) = Total output power of 29,3 Watt
Power to your modules are supplied by bussboards
When you select a MeanWell PSU you'll get the Modular Synth Lab Bussboards with 20 headers, when you select a HammerPWR or SeventyPWR you automatically get the Konstantlab's filtered bussboards with 19 connectors each.
Recommended to have a maximum of 3 or 4 bussboards per PSU.
Choose for a DIY cable kit and assemble it yourselves/with local help. or choose for a system where all low-voltage cables have been pre-wired! For the HammerPWR & SeventyPWR PSU this means that the case is ready to go, with the Meanwell RT65B you'll only need to connect the socket(s) to the PSU('s).
Made to order (currently estimated 4 to 8 weeks)
