Keystep Pro + Eurorack

configurator

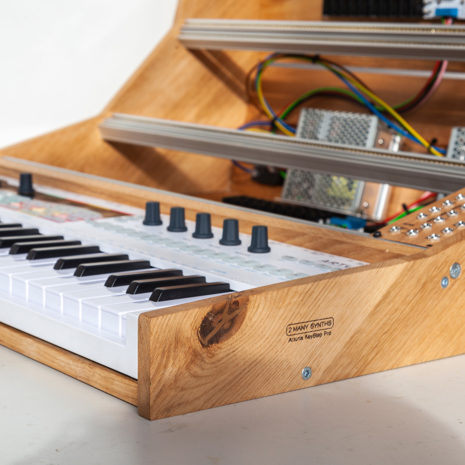

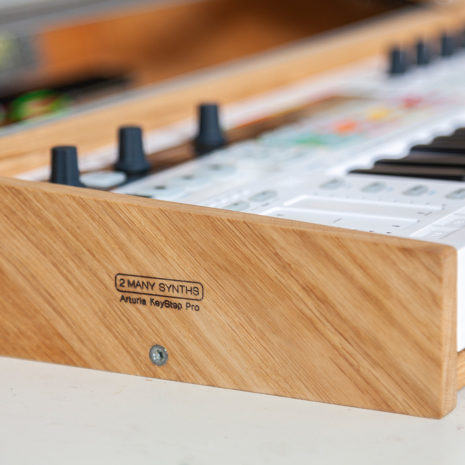

This is a configurable setup for a solid Oak stand, containing the Keystep Pro in front and Eurorack rows above!

Since all orders are made-to-order, you can select all options here and see how they inflict the price. Production is planned according to a FiFo system, first in – first out, in the order they come in.

Custom sizes and configurations are possible on request, so do not hesitate to contact me if you have a request!

Combination
Oak finish

Two layers of Osmo is my standard finish, a hard-wax oil which keeps the solid oak look but gives a nice matt protection.

As an alternative there now also is linseed oil 'natur' as a finish option, that is the coloured oil without colour. It gives a little more classic & yellowish finish with a little more touch of the wood grain in comparison to the Osmo oil if you prefer.

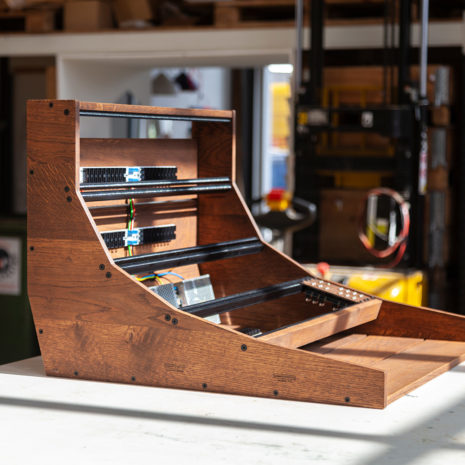

For the coloured cases, I use Satin Wood Oil, based on pure linseed oil and natural pigments. Standard colours are available here, but loads of colours are available for custom work!

Rails colour
Standard the rails is in aluminum colour, but optionally it ca be replaced by a black version.
Especially nice with the brass coloured threaded inserts!
Qty:-+
Rails insert

Select the type and amount of inserts you need here:,

For the threaded inserts you need to select the number of sets you need per 3U; so with 3U just 1x, with 6U you'll need 2x, with 9U it is 3x and with the 12U case you need 4x selected and then 5x with the 15U case. (NOTE: due to availability at my suppliers, brass threaded strips are not available but only the steel version and even there stock is limited.

For the M3 slide nuts you can select them as a multitude of 20 pcs, just select how many you would like in your complete case.

Qty:-+
Power supply

The Meanwell RT-65B is a low cost and efficient power supply, giving loads of power for a good price. By far the most popular and most sold PSU for Eurorack. The PSU's always come mounted to the case. The power is either DIY or pre-wired on all low-voltage wires & ground. The final connection from the socket to the PSU has to be done by yourselves (no soldering, only cable stripping & a few screws).

RT-65B Specs: +12V 3.5A -12V 1.0A and 5V 8.0A, total output power 65W.


Alternativelly there are also 2 options by Konstantlab:
HammerPWR & SeventyPWR are externally powered from a power brick. This creates the option to fully wire the system for you and ready to go, since there is no high voltage inside the case. These power supplies have been developped for Eurorack specifically, are known for their power & low noise but to come at a cost.

- HammerPWR (100 Watt output) + MeanWell 120Watt adapter, +12V 5A (2x 2.5A), -12V 2.5A and +5V 2.0A

- SeventyPWR (70 Watt output) + MeanWell 90 Watt adapter, +12V 2.5A, -12V 2.5A, +5V 2.0A


Calculation power output example based on ModularGrid:
(1.6A on +12V = 19,2W) + (0.8A on -12V = 9,6W) + (0.1A on 5V = 0,5) = Total output power of 29,3 Watt

Qty:-+
Bussboards

Power to your modules are supplied by bussboards
When you select a MeanWell PSU you'll get the Modular Synth Lab Bussboards with 20 headers, when you select a HammerPWR or SeventyPWR you automatically get the Konstantlab's filtered bussboards with 19 connectors each.

Recommended to have a maximum of 3 or 4 bussboards per PSU.

Choose for a DIY cable kit and assemble it yourselves/with local help. or choose for a system where all low-voltage cables have been pre-wired! For the HammerPWR & SeventyPWR PSU this means that the case is ready to go, with the Meanwell RT65B you'll only need to connect the socket(s) to the PSU('s).

Qty:-+
Power socket

1 power socket for 3x MeanWell PSU's max. to not exceed the 10A fuse, otherwise select multiple.

Qty:-+

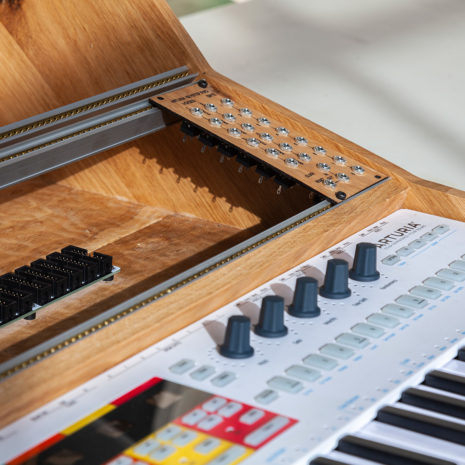

Keystep Pro patch panel
Officially launched at Superbooth 2022, this set of patch panels enables you to patch the back of your Keystep Pro to the front of your Eurorack! It has been developed together with Voltage Vibes and when ordered here the wood veneer on top will be oiled together with the wood from your case.
Soldering is not needed, since all comes pre-soldered and ready to patch! You only need patch cables to go from the back of your Keystep to the patch panel. It can be positioned vertical in a 3U row or horizontal in a 1U row.
Power cable
AC Power Cable – 1,5m long, max. 250VAC
Qty:-+
Shipping box (optional)
Alternatively to the shipping crates, I now also offer super-strong triple-layered cardboard boxes for small & regular size cases. The case itself is packed inside with foam blocks. Quite a good solution for international transport as well!
Shipping crate (optional)
A crate is the strongest transport method, especially for super big cases. But for descent size cases such as the ones here a shipping box might still be better since a crate will add significant weight to the transport and might require 'freight' instead of 'parcel'. The shipping costs in the checkout do not calculate this correctly, so shipping might be higher. Of course I will always double check with you before shipping out.
Custom amount
You can select this when we had contact about custom work, otherwise just leave it empty :-)
Qty:-+

Made to order (currently estimated 4 to 8 weeks)
