Widths

These are (my) standard HP sizes:

  • 60HP = 306mm + 2x 12mm sides = 330mm
  • 84HP = 428mm + 2x 12mm sides = 452mm
  • 104HP = 530mm + 2x 12mm sides = 554mm
  • 126HP = 642mm + 2x 12mm sides = 666mm
  • 160HP = 814mm + 2x 12mm sides = 838mm
  • 196HP = 997mm + 2x 12mm sides = 1021mm
  • I cut the rails to size myself, so other HP possible on request

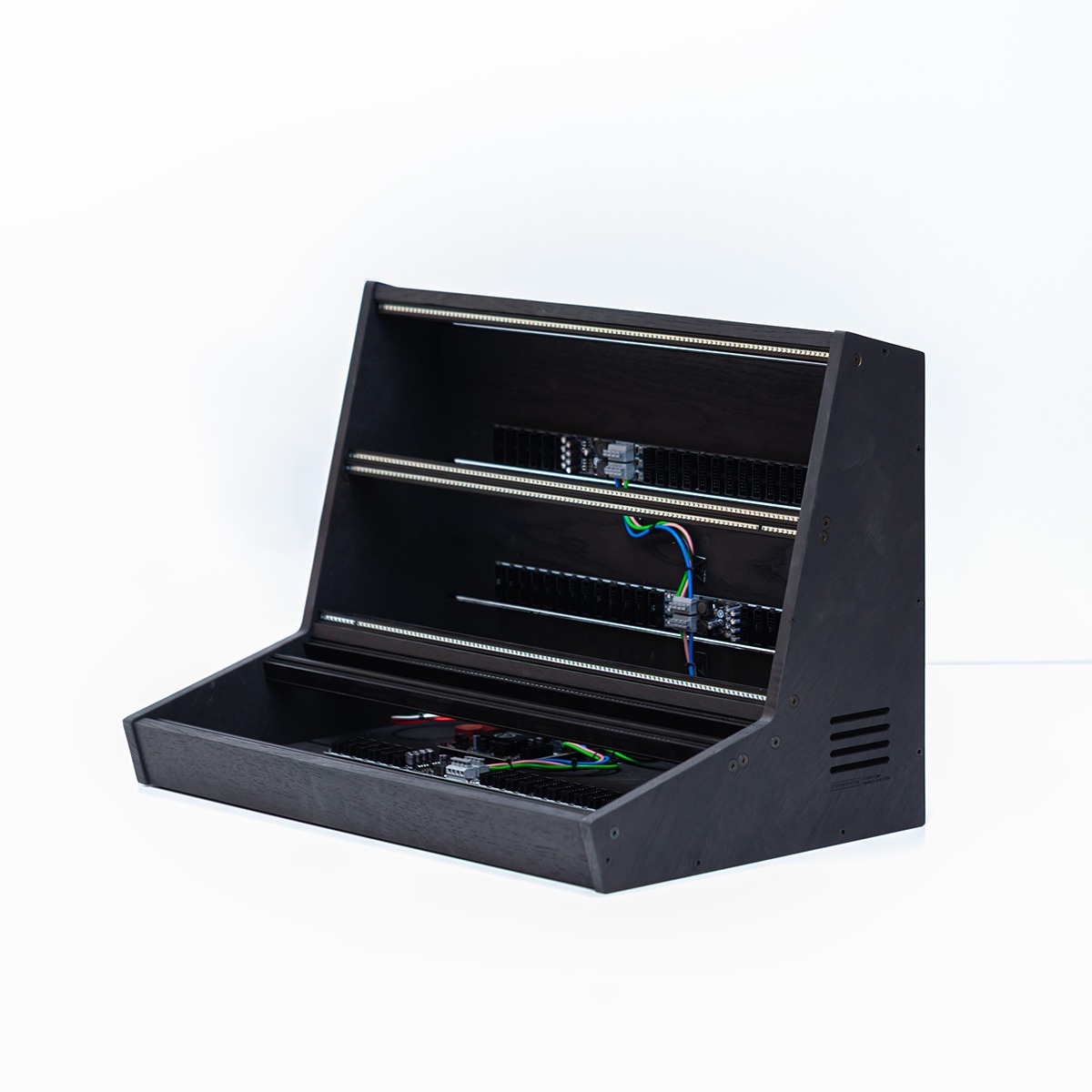

10U 104HP Eurorack case in BLACK

€148

This 10U 104HP Eurorack case is in stock, the woodwork is allready done and oiled with a deep black colored linseed oil. The case itself is in stock, but you can still choose rails colour and power options, I’ve allready made a pre-selection, but feel free to choose otherwise or shoot me a message if you have questions!

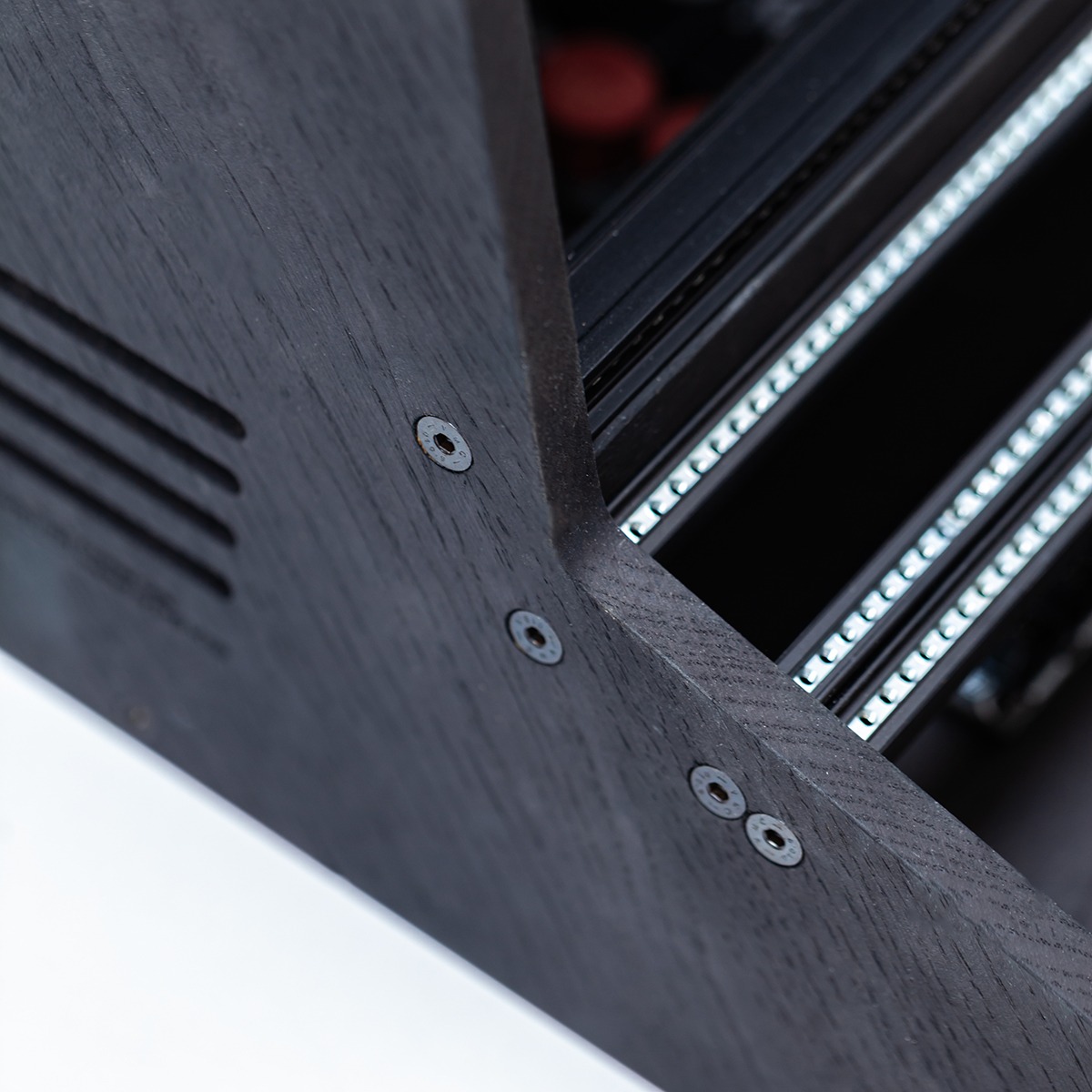

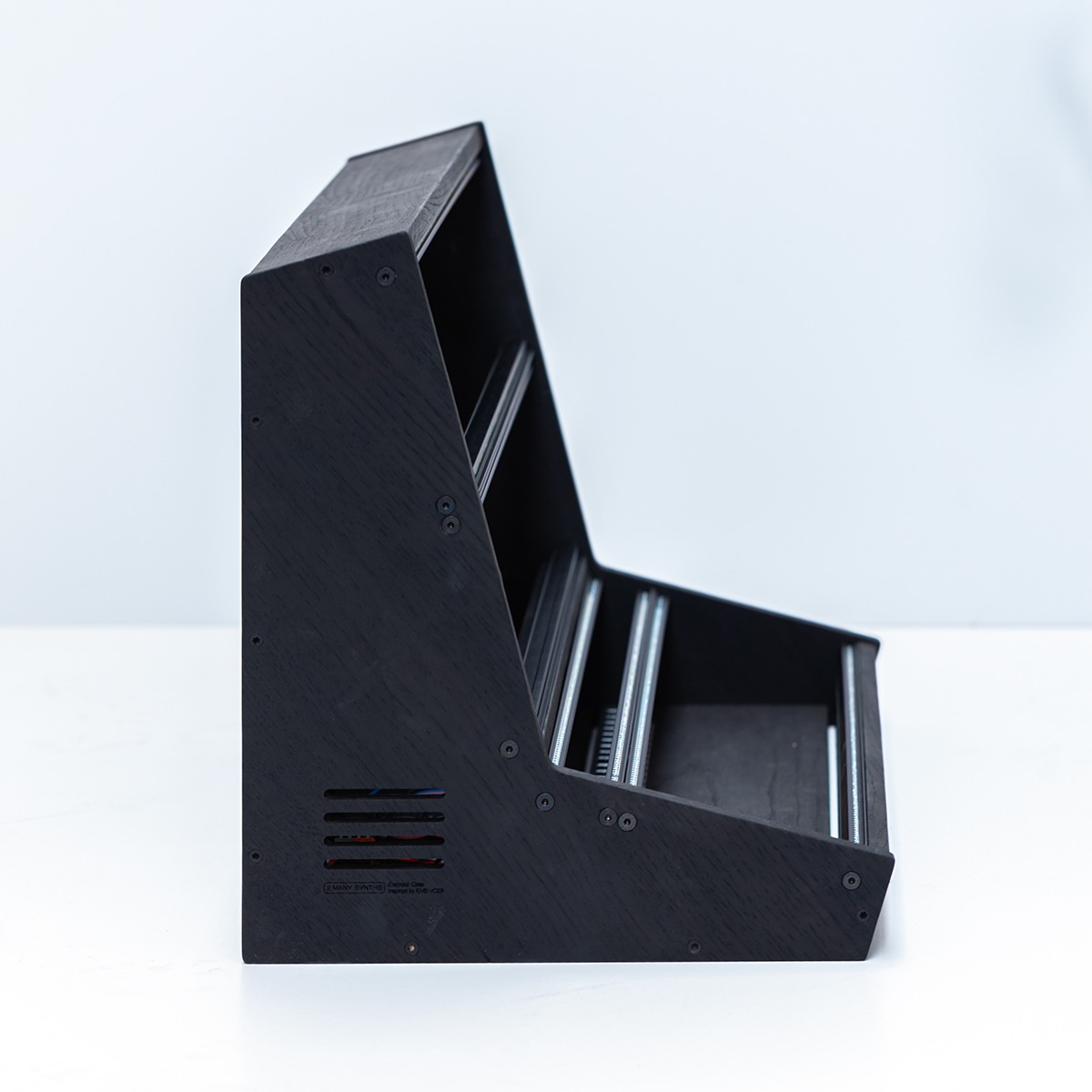

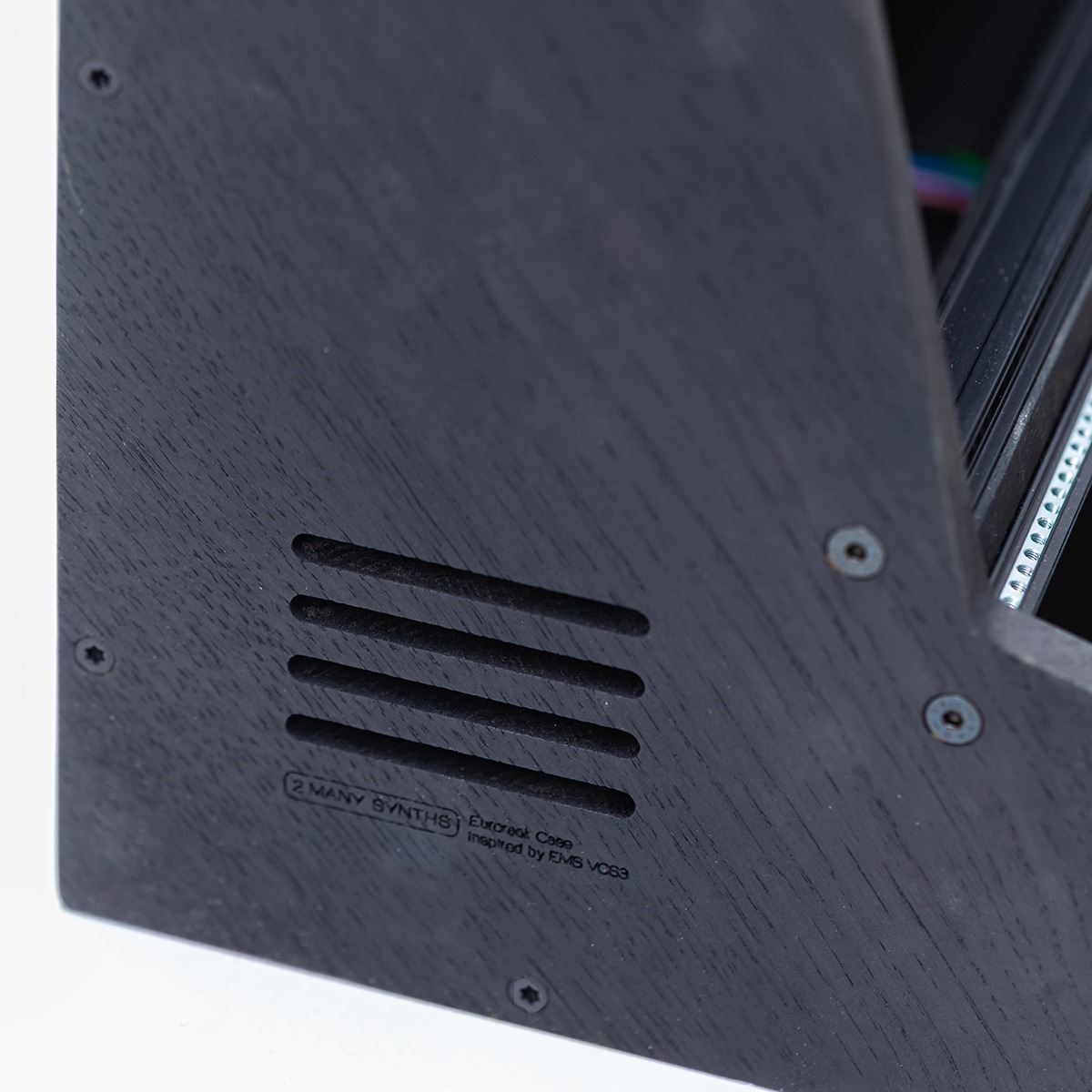

The 10U shape is a homage to the 1969 classic by EMS, the VCS3. I was inspired by its angles and the iconic slots which apparently were speaker openings in the original.

Dimensions: 346mm deep and 387mm high, 104HP = 530 + 24mm wide

For other widths and/or other models of cases in solid oak, check out my configurator!

Eurorack case size
eurorack size - 10U (3x 3U, 1x 1U), 104HP
1 × eurorack size - 10U (3x 3U, 1x 1U), 104HP
€642
Oak finish
wood finish - Black coloured linseed oil
1 × wood finish - Black coloured linseed oil
€79
Rails colour

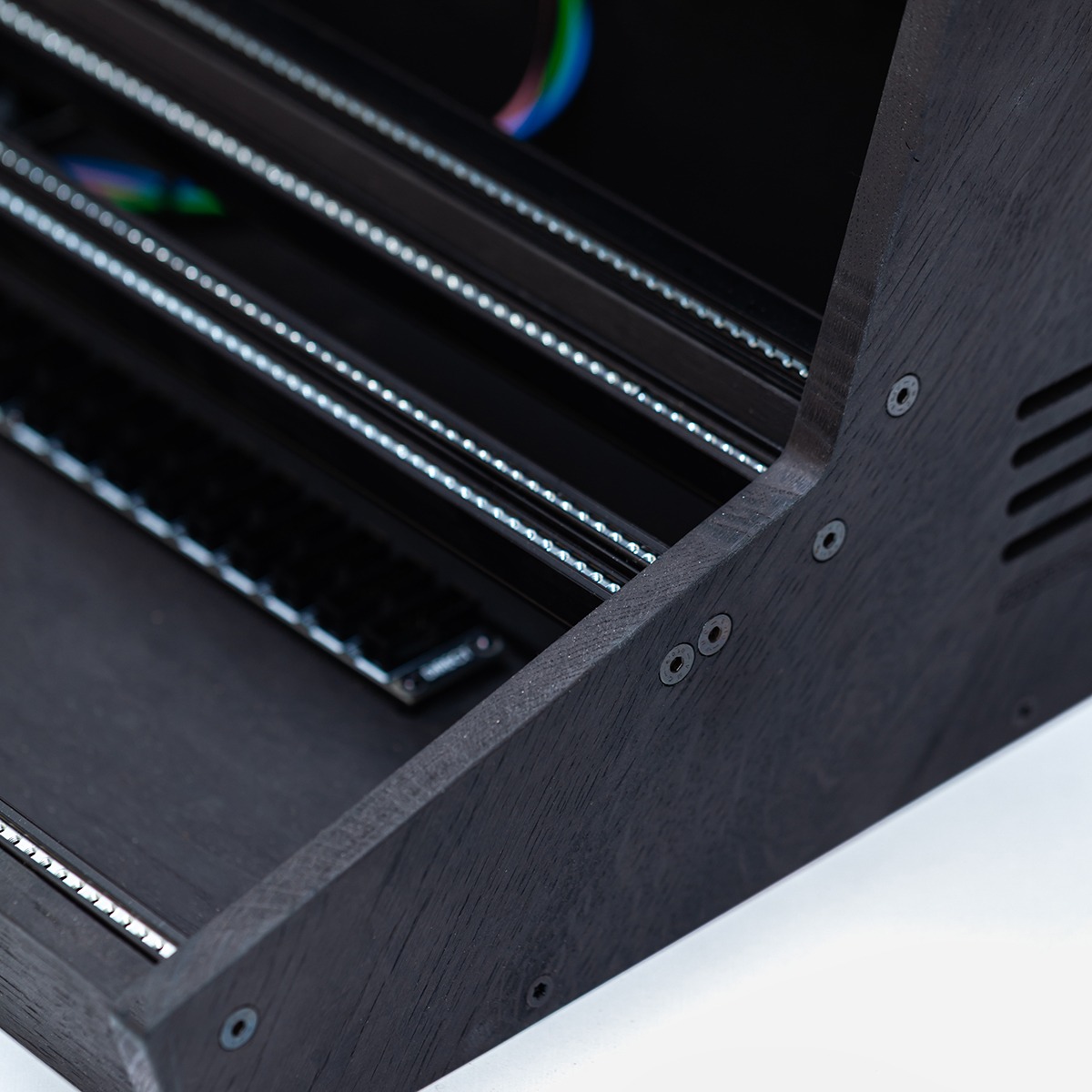

I've selected black rails on a black case .. but if you want to save a little you can choose alu rails here .. also looks quite cool and most modules have mixed colours anyway. Unless you have ALL in black :-)
Rails insert
I wouldn't recommend slide nuts .. so basically threaded inserts are mandatory and pre-selected.
inserts 1U or 3U pair - 104HP pair of M3 threaded inserts
4 × inserts 1U or 3U pair - 104HP pair of M3 threaded inserts
€19
Power supply

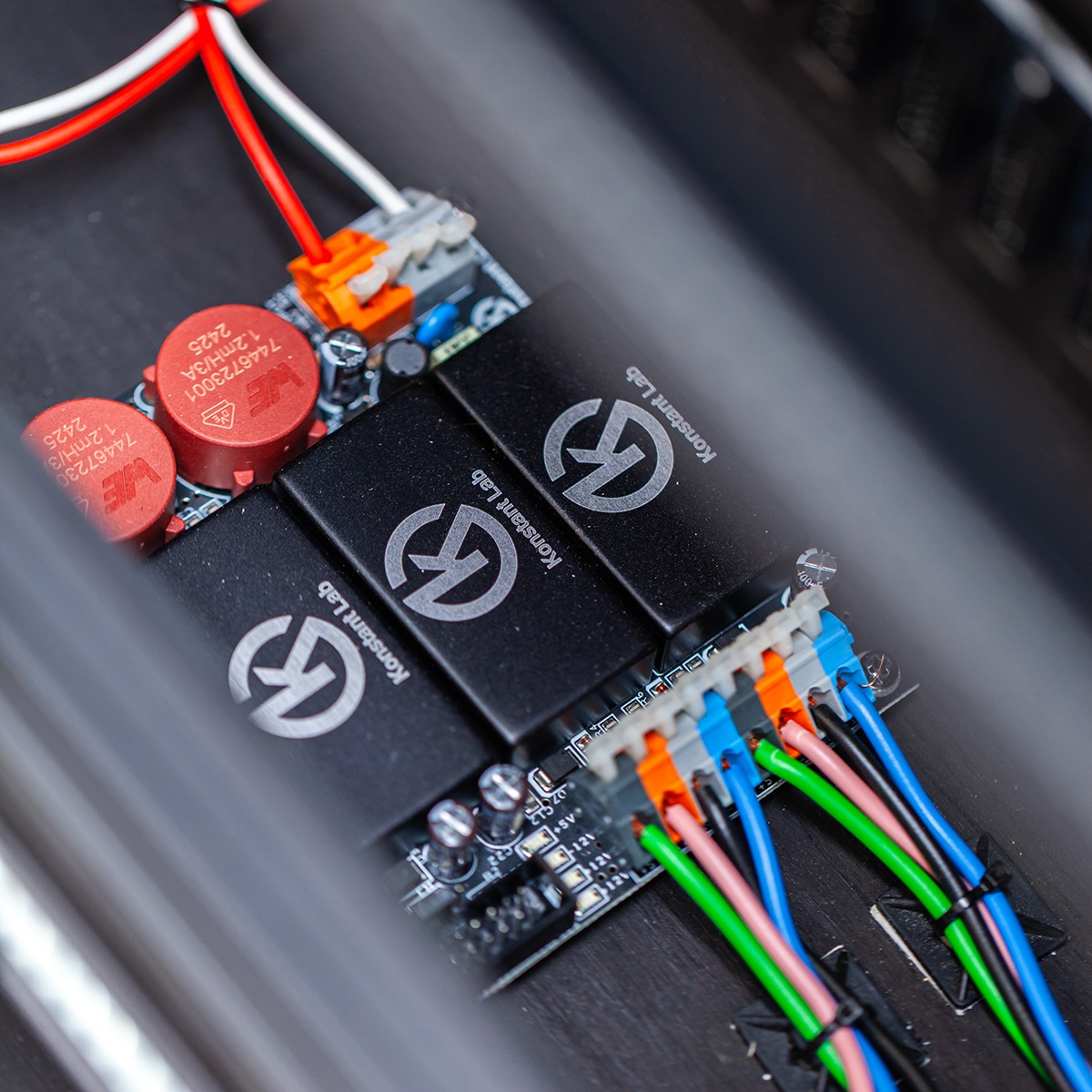

The best power option is by Konstantlab, I would recommend a HammerPWR for this case size:

HammerPWR & SeventyPWR are externally powered from a power brick. This creates the option to fully wire the system for you and ready to go, since there is no high voltage inside the case. These power supplies have been developped for Eurorack specifically, are known for their power & low noise but to come at a cost.

- HammerPWR (100 Watt output) + MeanWell 120Watt adapter, +12V 5A (2x 2.5A), -12V 2.5A and +5V 2.0A

- SeventyPWR (70 Watt output) + MeanWell 90 Watt adapter, +12V 2.5A, -12V 2.5A, +5V 2.0A


As alternative there is the Meanwell RT-65B is a low cost and efficient power supply, giving loads of power for a good price. By far the most popular and most sold PSU for Eurorack. The PSU's always come mounted to the case. The power is either DIY or pre-wired on all low-voltage wires & ground. The final connection from the socket to the PSU has to be done by yourselves (no soldering, only cable stripping & a few screws).

RT-65B Specs: +12V 2.8 to 3.5A -12V 0.5 to 1.0A and 5V 5.0 to 8.0A, total output power 65W.

Bussboards

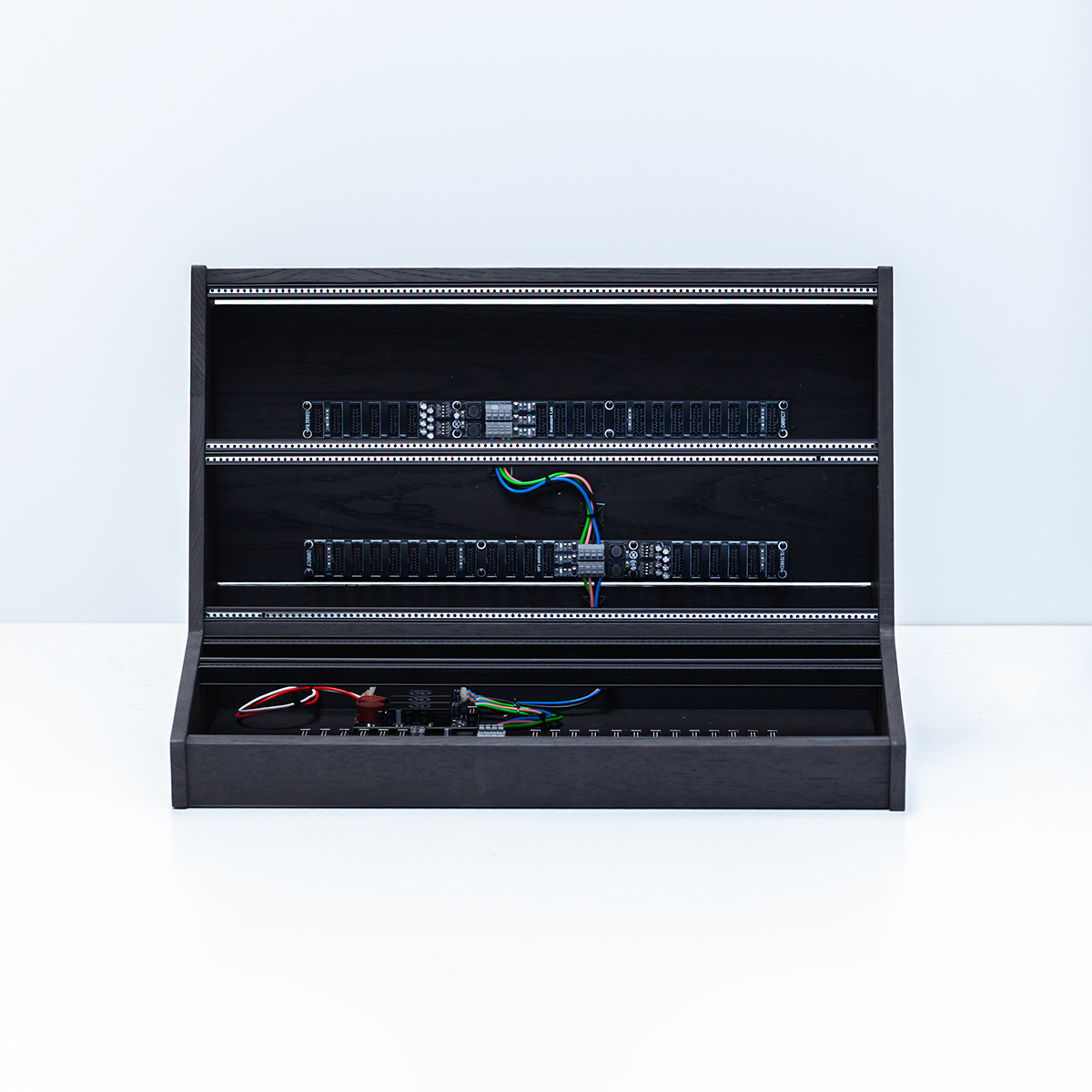

For a case this size I would have 1 bussboard per 3U row, so 3 in total 2 is possible as well but only if you don't have too much smaller modules on the top two rows .. I would recommend 3.

Choose for a DIY cable kit and assemble it yourselves/with local help. or choose for a system where all low-voltage cables have been pre-wired! For the HammerPWR & SeventyPWR PSU this means that the case is ready to go, with the Meanwell RT65B you'll only need to connect the socket(s) to the PSU('s).

Qty:-+
Power socket
Power socket has been pre-cut, select a socket if you need here or leave it blank.
Placeholder
1 × power socket - Socket in back plate
€14
Triple-layer shipping carton (optional)
A super-strong triple-layered cardboard boxes for small & regular size cases. The case itself is packed inside with foam blocks. Quite a good solution for international transport as well!

Only 1 in stock
