Widths

These are (my) standard HP sizes:

  • 60HP = 306mm + 2x 12mm sides = 330mm
  • 84HP = 428mm + 2x 12mm sides = 452mm
  • 104HP = 530mm + 2x 12mm sides = 554mm
  • 126HP = 642mm + 2x 12mm sides = 666mm
  • 160HP = 814mm + 2x 12mm sides = 838mm
  • 196HP = 997mm + 2x 12mm sides = 1021mm
  • I cut the rails to size myself, so other HP possible on request



13U 104HP Solid oak Eurorack case with GOLD rails

Original price was: €1.232.Current price is: €997.

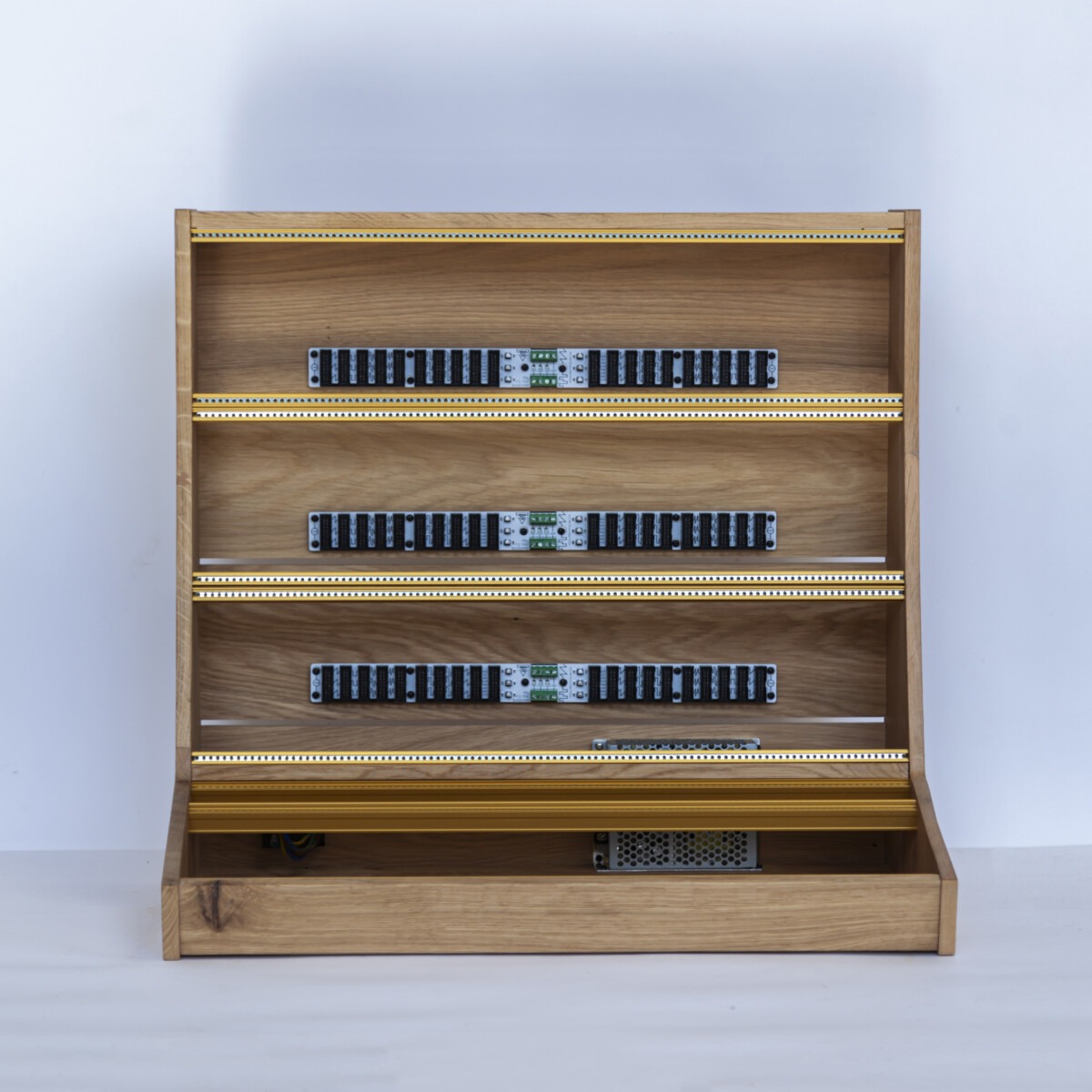

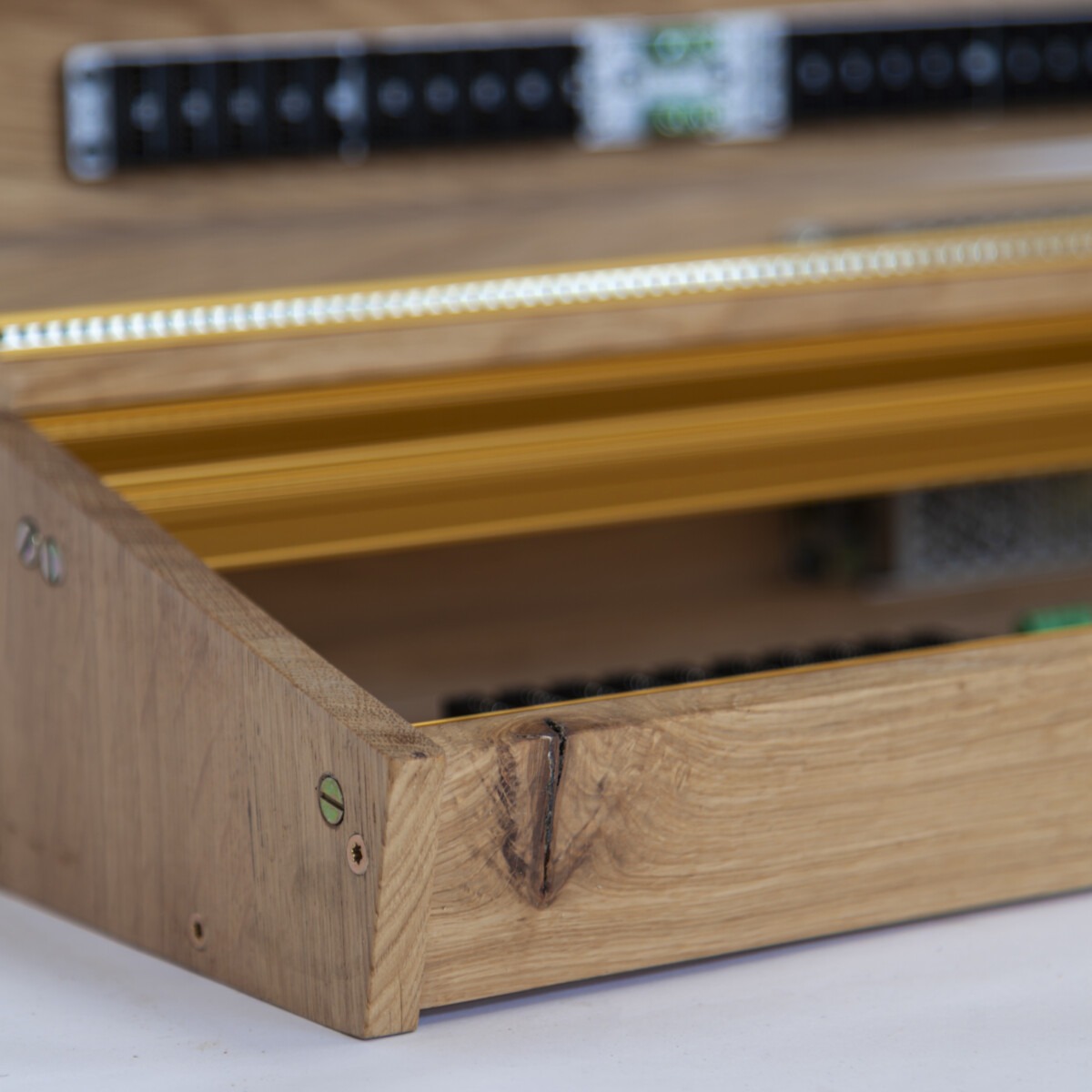

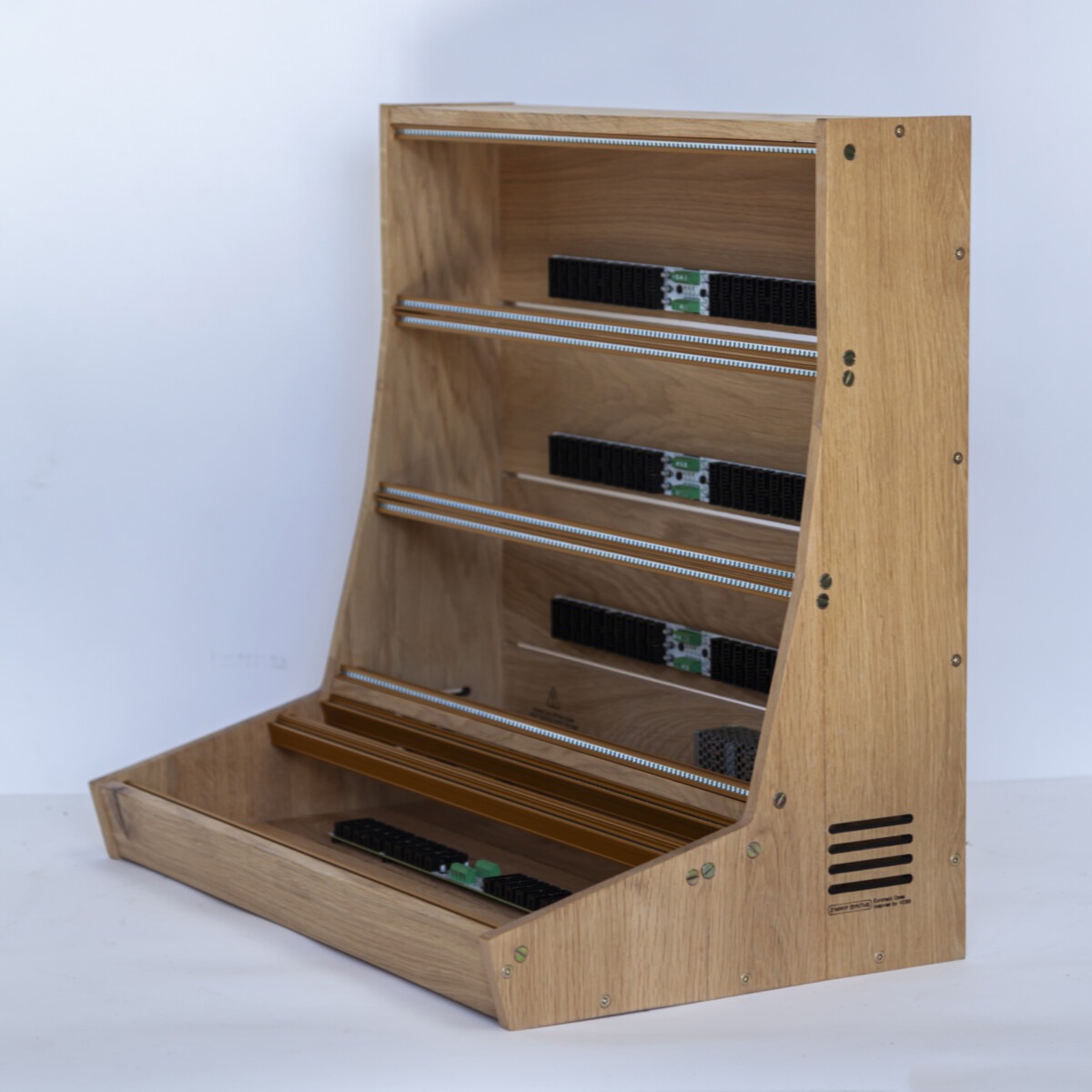

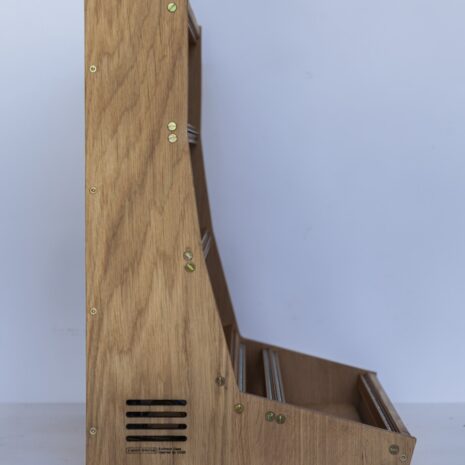

This 13U 104HP Eurorack case has been made of solid oak with a clean vertical wood pattern and the signature air-slots on the sides. The nice thing with this 13U shape is that you’ll have a more horizontal part in front for your sequencers, etc. as a more hands-on section and with a relativelly narrow profile have plenty of vertical space for oscilators, effects & functions upwards.

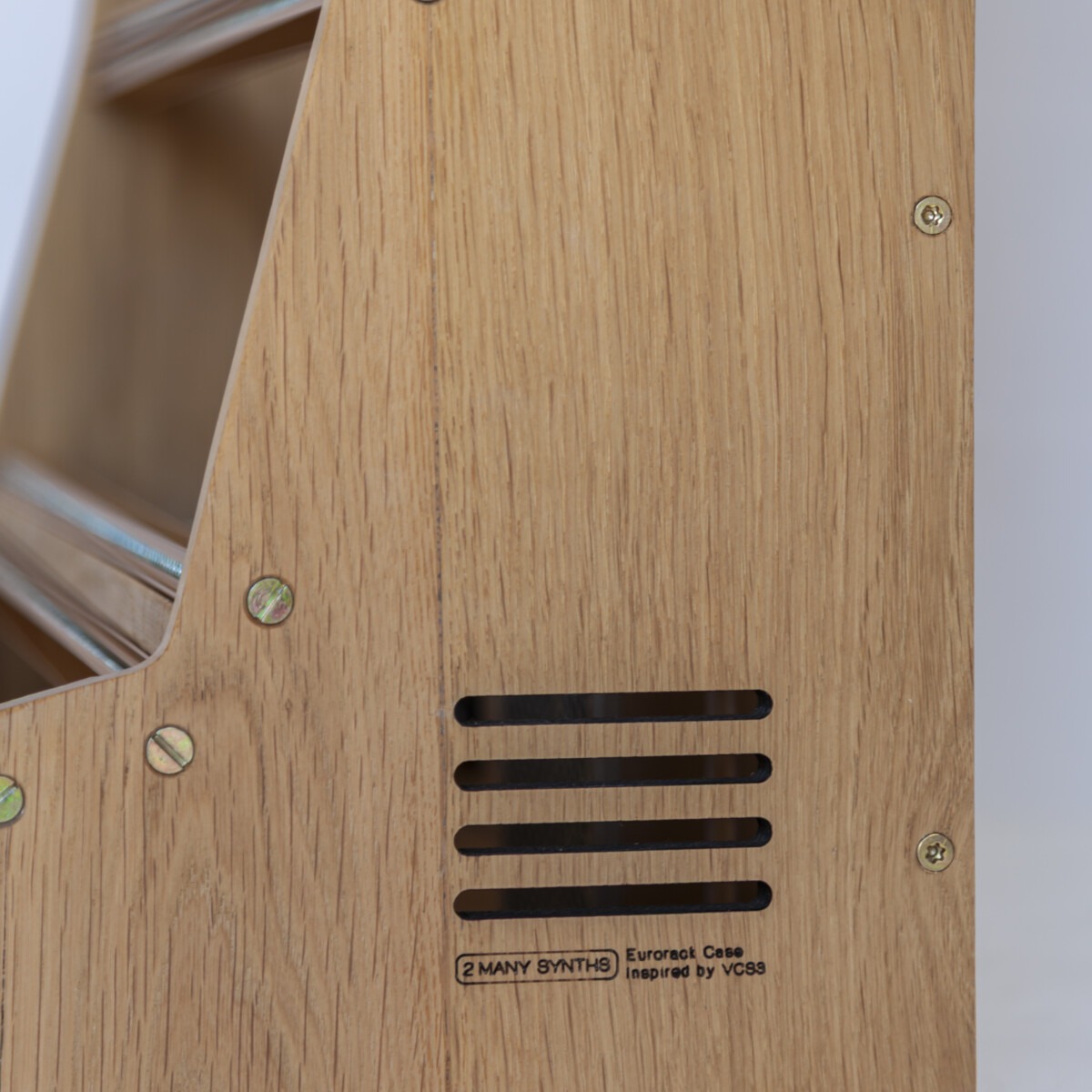

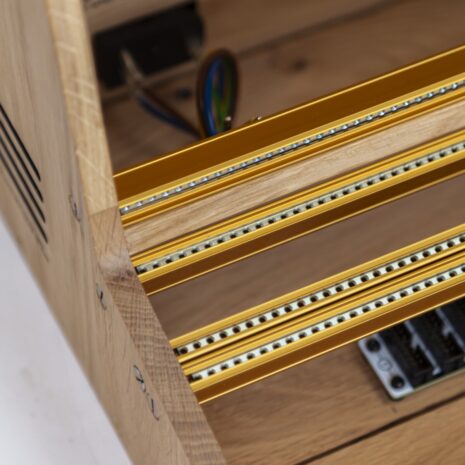

The 10U shape is a homage to the 1969 classic by EMS, the VCS3. I was inspired by its angles and the iconic slots which apparently were speaker openings in the original. It has quite unique GOLD anodised rails (for free!) with the convenient threaded inserts, a power socket in the back and both a MeanWell RT65B power supply as 4 bussboards installed. The only thing you need to do is connect al the wires of which instructions can be found here: https://2manysynths.nl/msl/

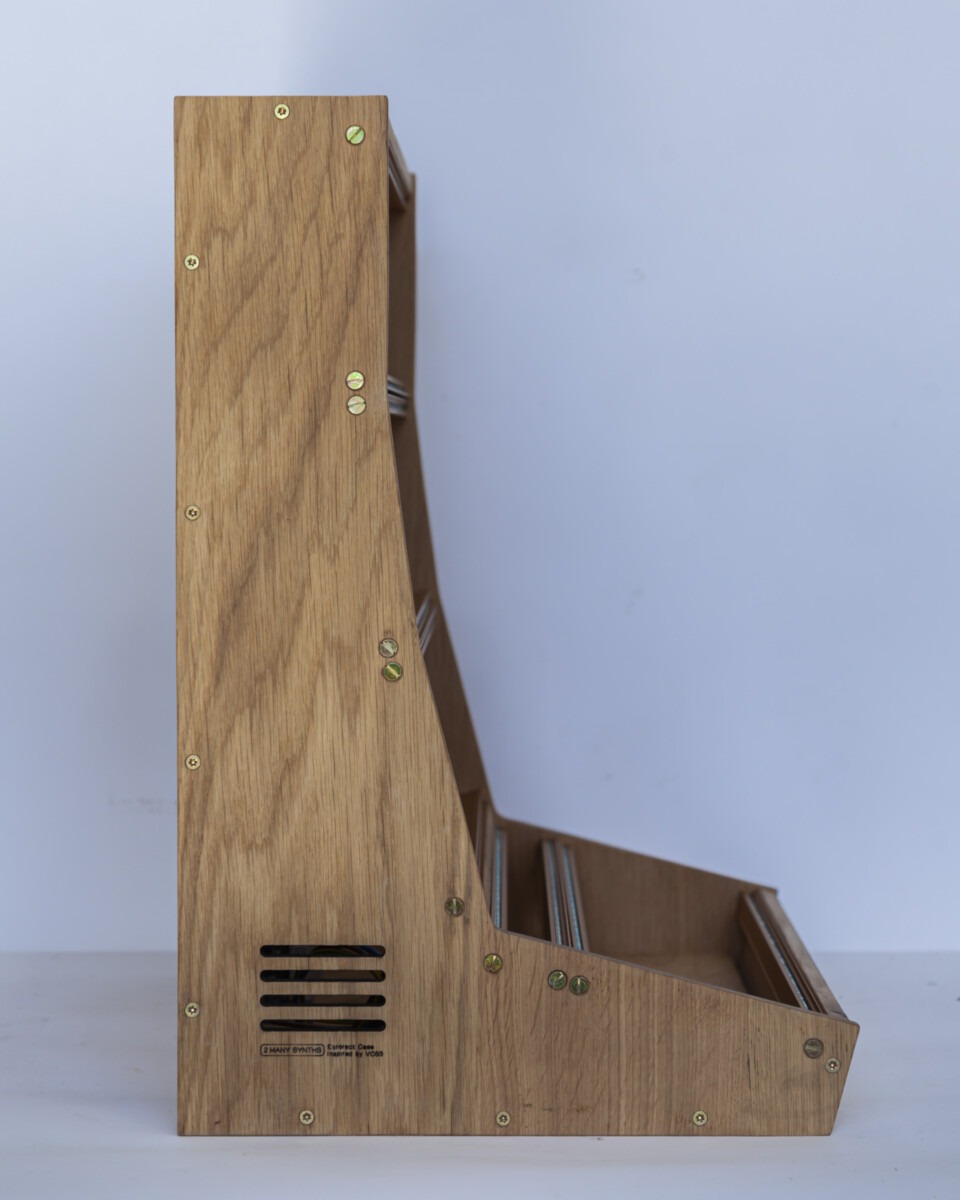

Dimensions: 346mm deep and 522mm high, 104HP = 530mm + 2x 12mm sides = 554mm wide

For other widths and/or other models of cases in solid oak, check out my configurator!

Eurorack case size
Placeholder
1 × eurorack size - 13U (4x 3U, 1x 1U), 104HP
Original price was: €803.Current price is: €683.
Oak finish
wood finish - Osmo hardwax oil
1 × wood finish - Osmo hardwax oil
Original price was: €29.Current price is: €0.
Rails colour
Placeholder
5 × Gold rails - 104HP
Original price was: €13.Current price is: €0.
Rails insert

For the M3 slide nuts, you can select them as a multitude of 20 pcs, just select roughly how many you would like in your complete case and they will be distributed accordingly.

For the threaded inserts you need to select the number of pairs you need per 1U or 3U row; so with 3U just 1x, with 6U you'll need 2x, etc. Note that the inserts have a maximum length from the factory, so with larger cases they can be build up out of two pieces.

inserts 1U or 3U pair - 104HP pair of M3 threaded inserts
5 × inserts 1U or 3U pair - 104HP pair of M3 threaded inserts
€19
Power supply

The Meanwell RT-65B is a low cost and efficient power supply, giving loads of power for a good price. By far the most popular and most sold PSU for Eurorack. The PSU's always come mounted to the case. The power is either DIY or pre-wired on all low-voltage wires & ground. The final connection from the socket to the PSU has to be done by yourselves (no soldering, only cable stripping & a few screws).

RT-65B Specs: +12V 3.5A -12V 1.0A and 5V 8.0A, total output power 65W.

PSU - Meanwell RT65-B (65W output)
1 × PSU - Meanwell RT65-B (65W output)
€39
Bussboards

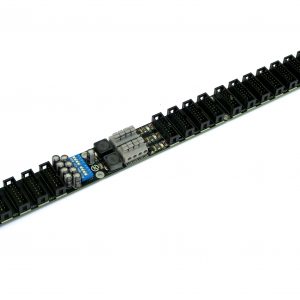

Power to your modules are supplied by bussboards

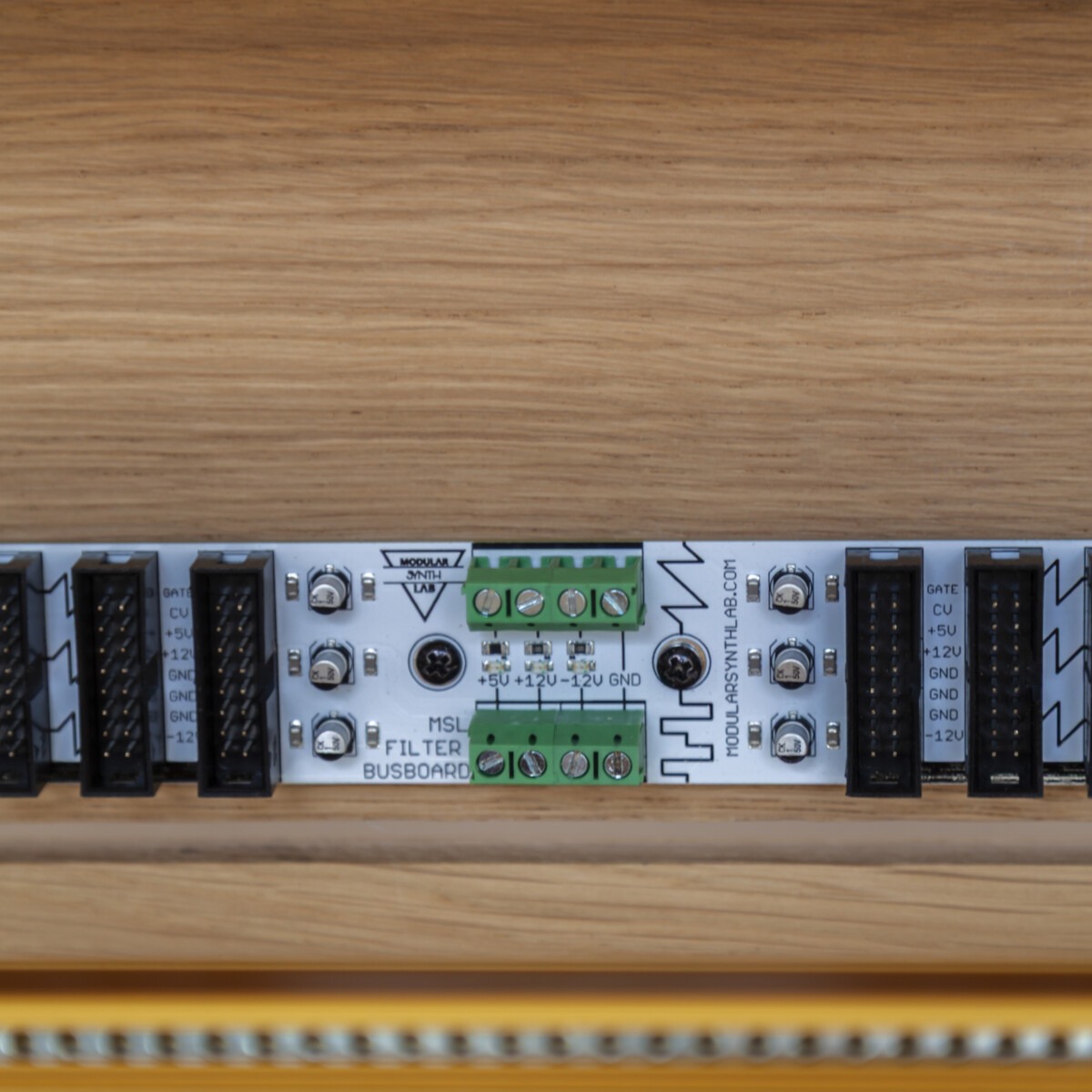

When you select a MeanWell PSU and select an amount of bussboards here, you'll get the Modular Synth Lab Bussboards with 20 header

Choose for a DIY cable kit and assemble it yourselves/with local help.

Bussboards - Bussboard, with DIY cable kit
4 × Bussboards - Bussboard, with DIY cable kit
€45
Power socket

1 power socket for 3x MeanWell PSU's max. to not exceed the 10A fuse, otherwise select multiple.

Placeholder
1 × power socket - Socket in back plate
Original price was: €14.Current price is: €0.
Power cable
AC Power Cable – max. 250VAC
Triple-layer shipping carton (optional)
A super-strong triple-layered cardboard boxes for small & regular size cases. The case itself is packed inside with foam blocks. Quite a good solution for international transport as well!
