Name: 13U 84HP Eurorack case in BLACK
SKU: 2MS_Eurorack_COnfigurator-7-11-1-1
Availability: InStock

Home » Shop » Eurorack » 13U 84HP Eurorack case in BLACK

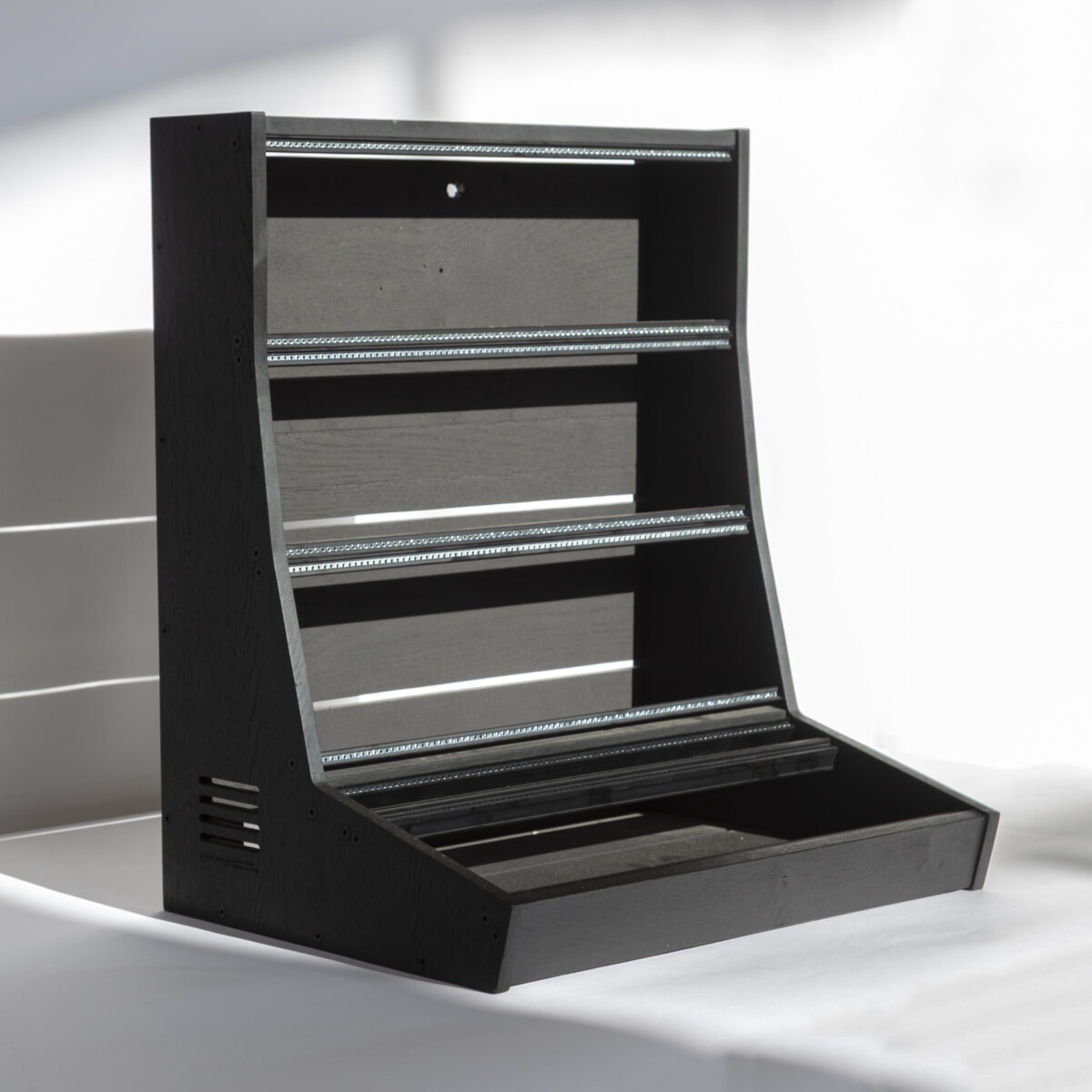

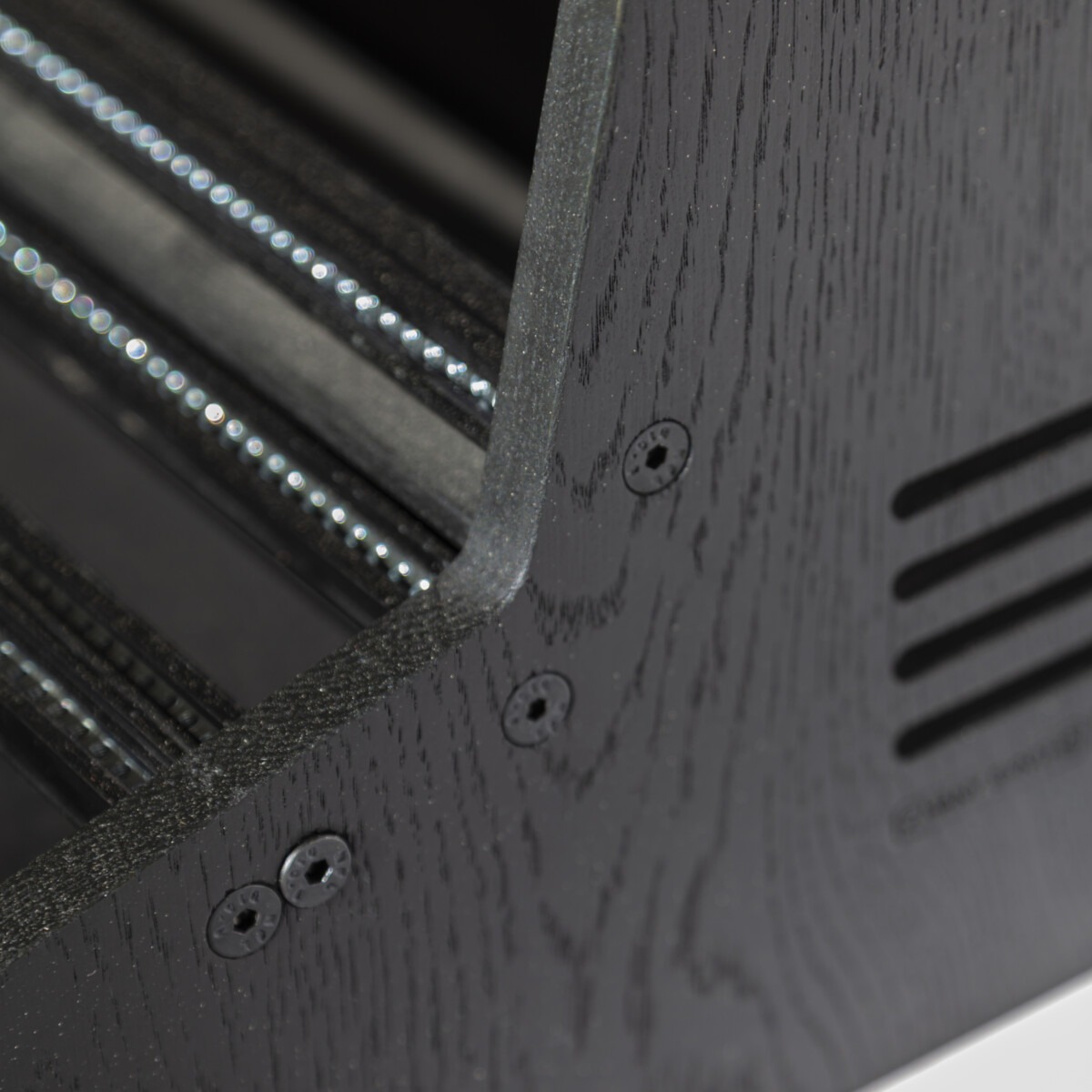

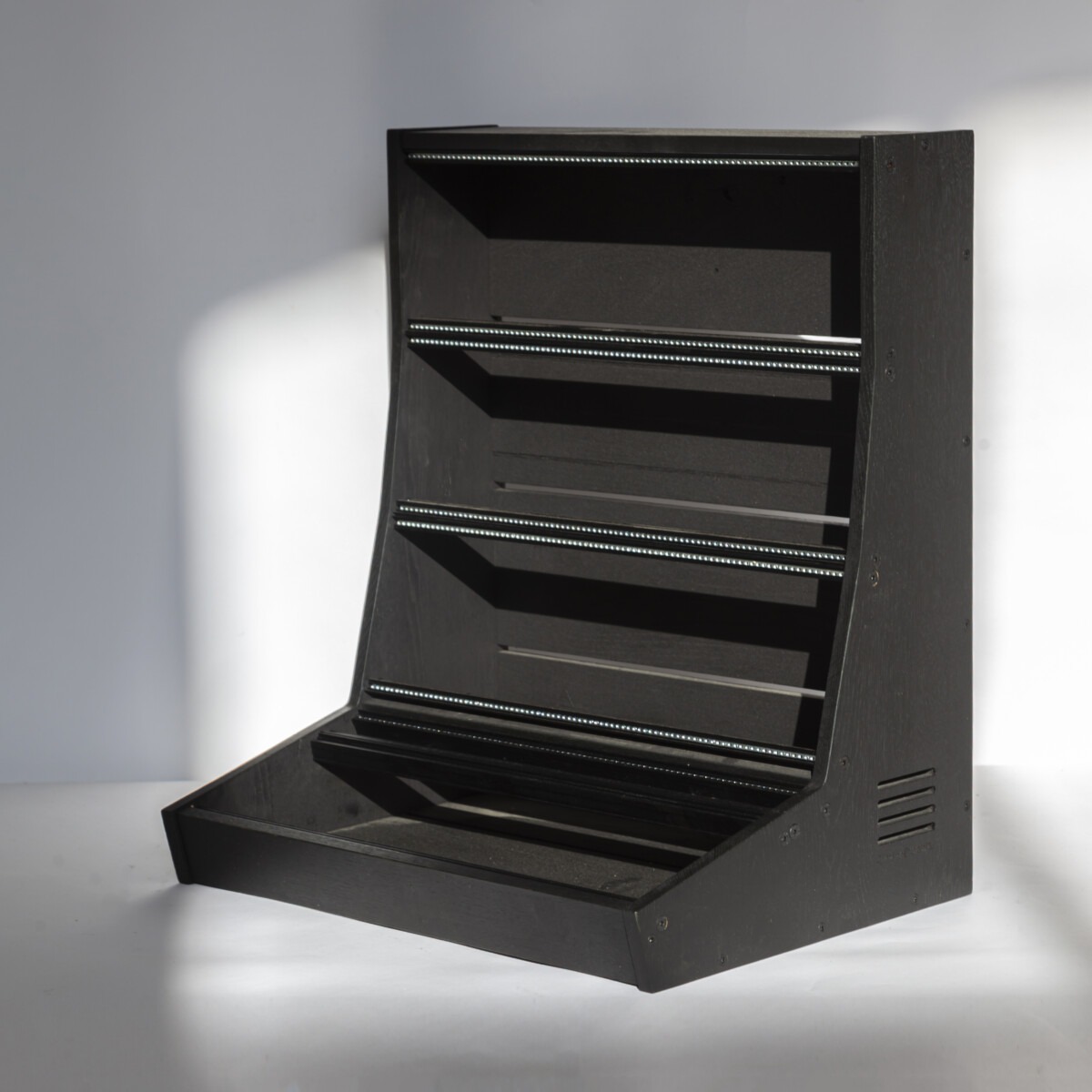

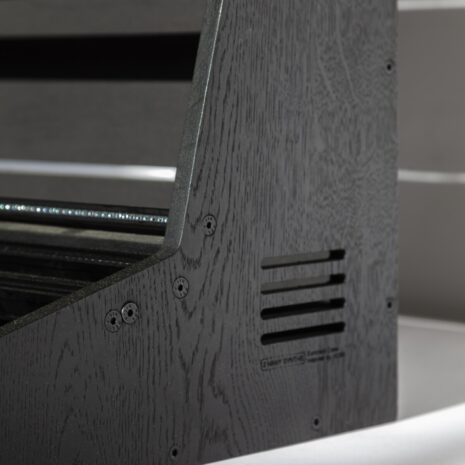

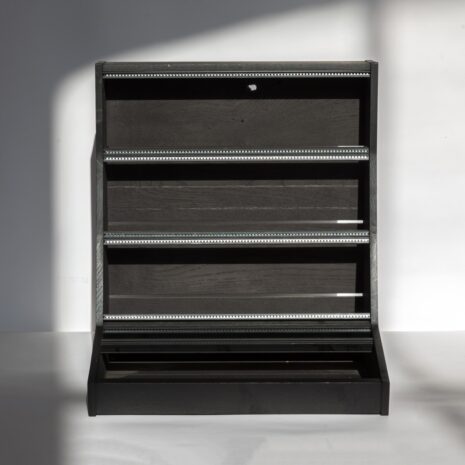

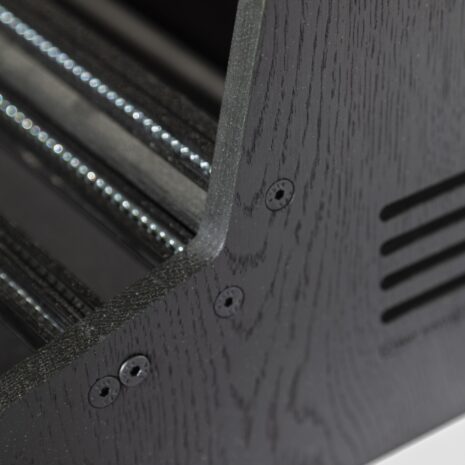

This 13U 84HP Eurorack case has been made of solid oak with a clean vertical wood pattern and the signature air-slots on the sides. The nice thing with this 13U shape is that you’ll have a more horizontal part in front for your sequencers, etc. as a more hands-on section and with a relativelly narrow profile have plenty of vertical space for oscilators, effects & functions upwards.

The 10U shape is a homage to the 1969 classic by EMS, the VCS3, this 13U shape is an extra row on I was inspired by its angles and the iconic slots which apparently were speaker openings in the original. It has black coloured linseed oil on the solid oak and accompanied by black anodised rails.

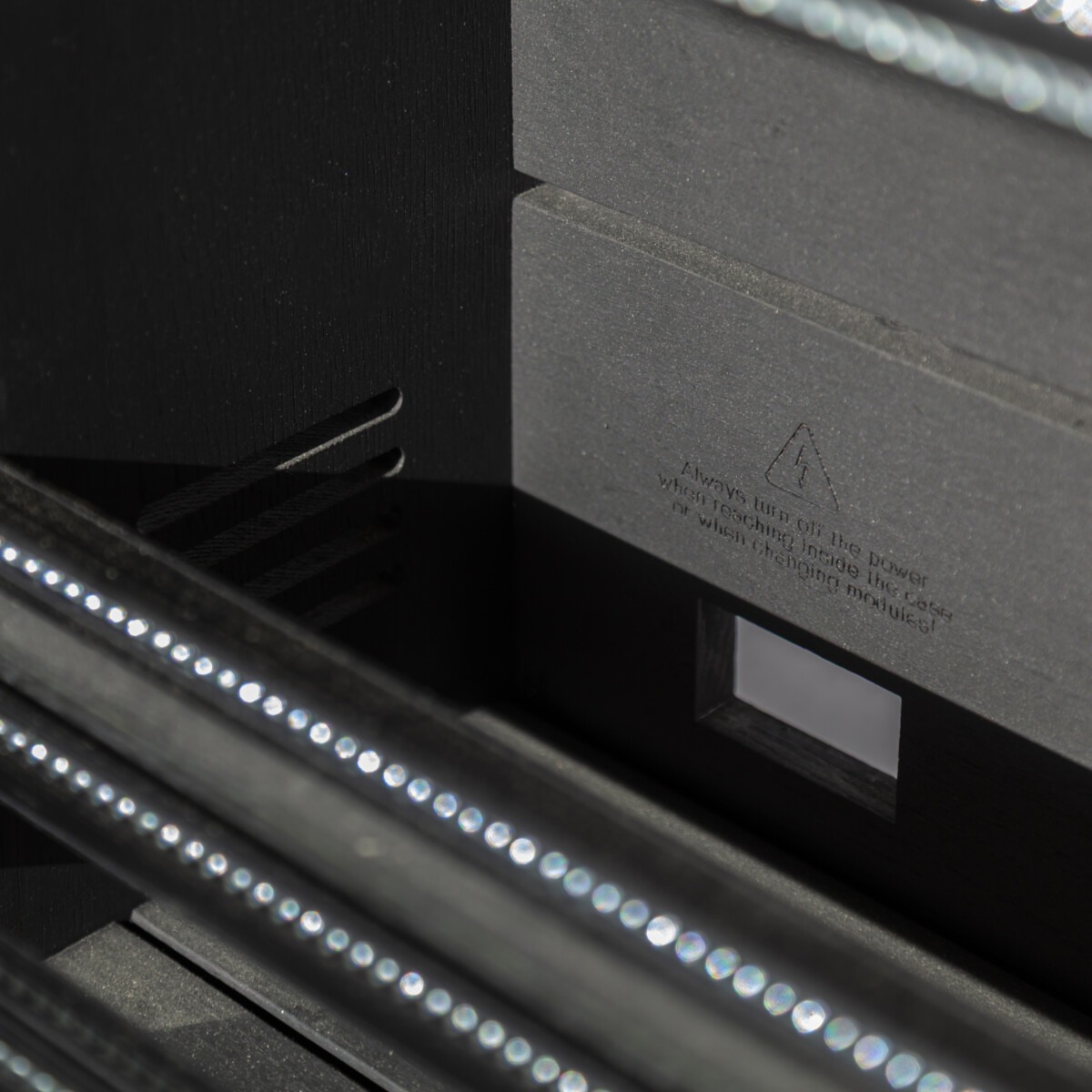

A power socket has been pre-cut n the back but you can still choose your own power supply (or not and go for a 4HP power module).

Dimensions: 346mm deep and 522mm high, 84HP = 428mm + 2x 12mm sides = 452mm wide

For other widths and/or other models of cases in solid oak, check out my configurator!

Eurorack case size

1 × eurorack size - 13U (4x 3U, 1x 1U), 84HP

Oak finish

1 × wood finish - Black coloured linseed oil

Rails colour

5 × Rails colour per 1U or 3U pair - Black rails 104HP

Rails insert

5 × inserts 1U or 3U pair - 104HP pair of M3 threaded inserts

€19

Power supply

The Meanwell RT-65B is a low cost and efficient power supply, giving loads of power for a good price. By far the most popular and most sold PSU for Eurorack. The PSU's always come mounted to the case. The power is either DIY or pre-wired on all low-voltage wires & ground. The final connection from the socket to the PSU has to be done by yourselves (no soldering, only cable stripping & a few screws).

RT-65B Specs: +12V 3.5A -12V 1.0A and 5V 8.0A, total output power 65W.

Alternativelly there are also 2 options by Konstantlab:
HammerPWR & SeventyPWR are externally powered from a power brick. This creates the option to fully wire the system for you and ready to go, since there is no high voltage inside the case. These power supplies have been developped for Eurorack specifically, are known for their power & low noise but to come at a cost.

- HammerPWR (100 Watt output) + MeanWell 120Watt adapter, +12V 5A (2x 2.5A), -12V 2.5A and +5V 2.0A

- SeventyPWR (70 Watt output) + MeanWell 90 Watt adapter, +12V 2.5A, -12V 2.5A, +5V 2.0A

Calculation power output example based on ModularGrid:
(1.6A on +12V = 19,2W) + (0.8A on -12V = 9,6W) + (0.1A on 5V = 0,5) = Total output power of 29,3 Watt

Bussboards

Power to your modules are supplied by bussboards
When you select a MeanWell PSU you'll get the Modular Synth Lab Bussboards with 20 headers, when you select a HammerPWR or SeventyPWR you automatically get the Konstantlab's filtered bussboards with 19 connectors each.

Recommended to have a maximum of 3 or 4 bussboards per PSU.

Choose for a DIY cable kit and assemble it yourselves/with local help. or choose for a system where all low-voltage cables have been pre-wired! For the HammerPWR & SeventyPWR PSU this means that the case is ready to go, with the Meanwell RT65B you'll only need to connect the socket(s) to the PSU('s).

AC Power cable

Triple-layer shipping carton (optional)

A super-strong triple-layered cardboard boxes for small & regular size cases. The case itself is packed inside with foam blocks. Quite a good solution for international transport as well!

Only 1 in stock
