Home » Shop » Eurorack (stock items) » 6U 84HP Eurorack case in Solid Walnut



Widths

These are (my) standard HP sizes:

  • 60HP = 306mm + 2x 12mm sides = 330mm
  • 84HP = 428mm + 2x 12mm sides = 452mm
  • 104HP = 530mm + 2x 12mm sides = 554mm
  • 126HP = 642mm + 2x 12mm sides = 666mm
  • 160HP = 814mm + 2x 12mm sides = 838mm
  • 196HP = 997mm + 2x 12mm sides = 1021mm
  • I cut the rails to size myself, so other HP possible on request

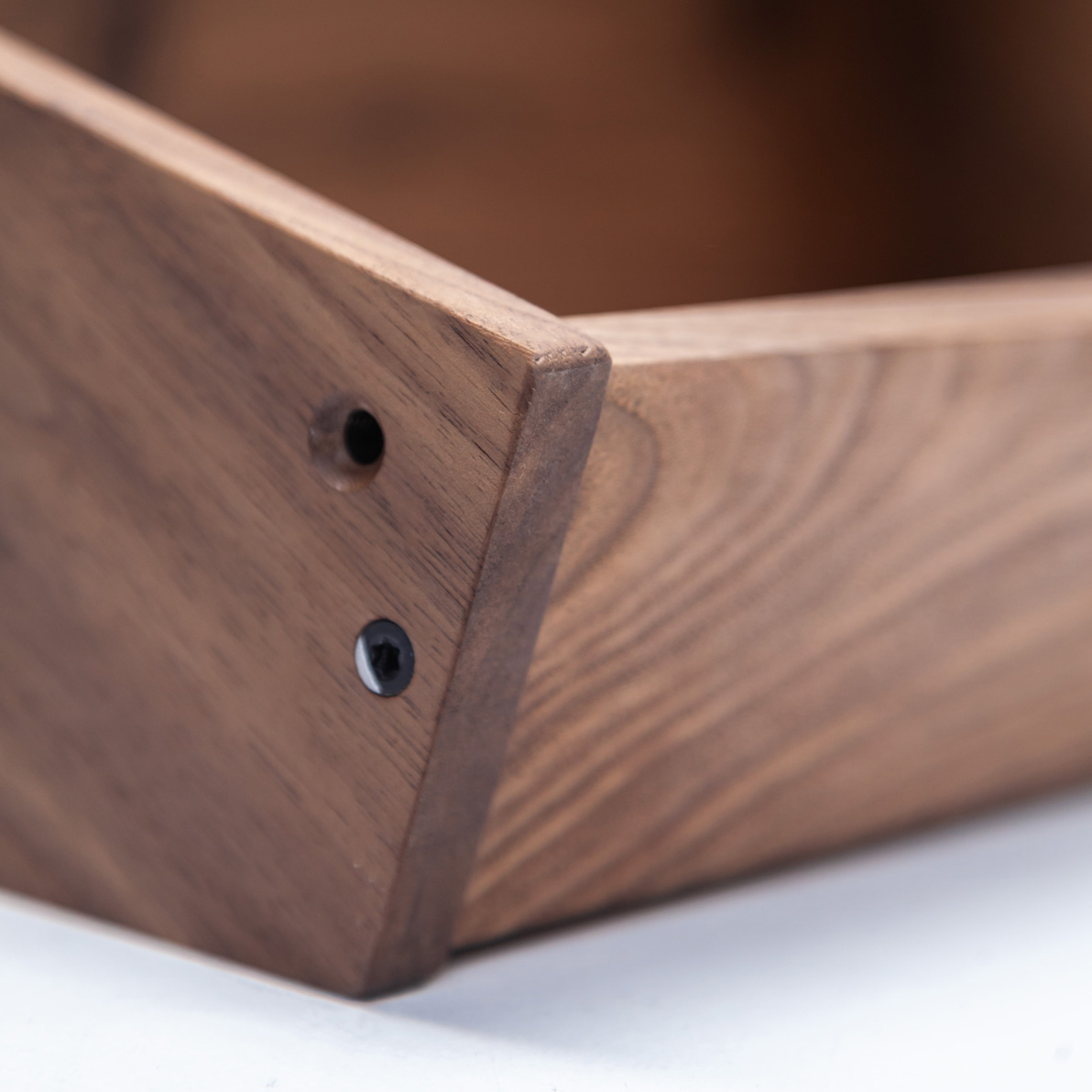

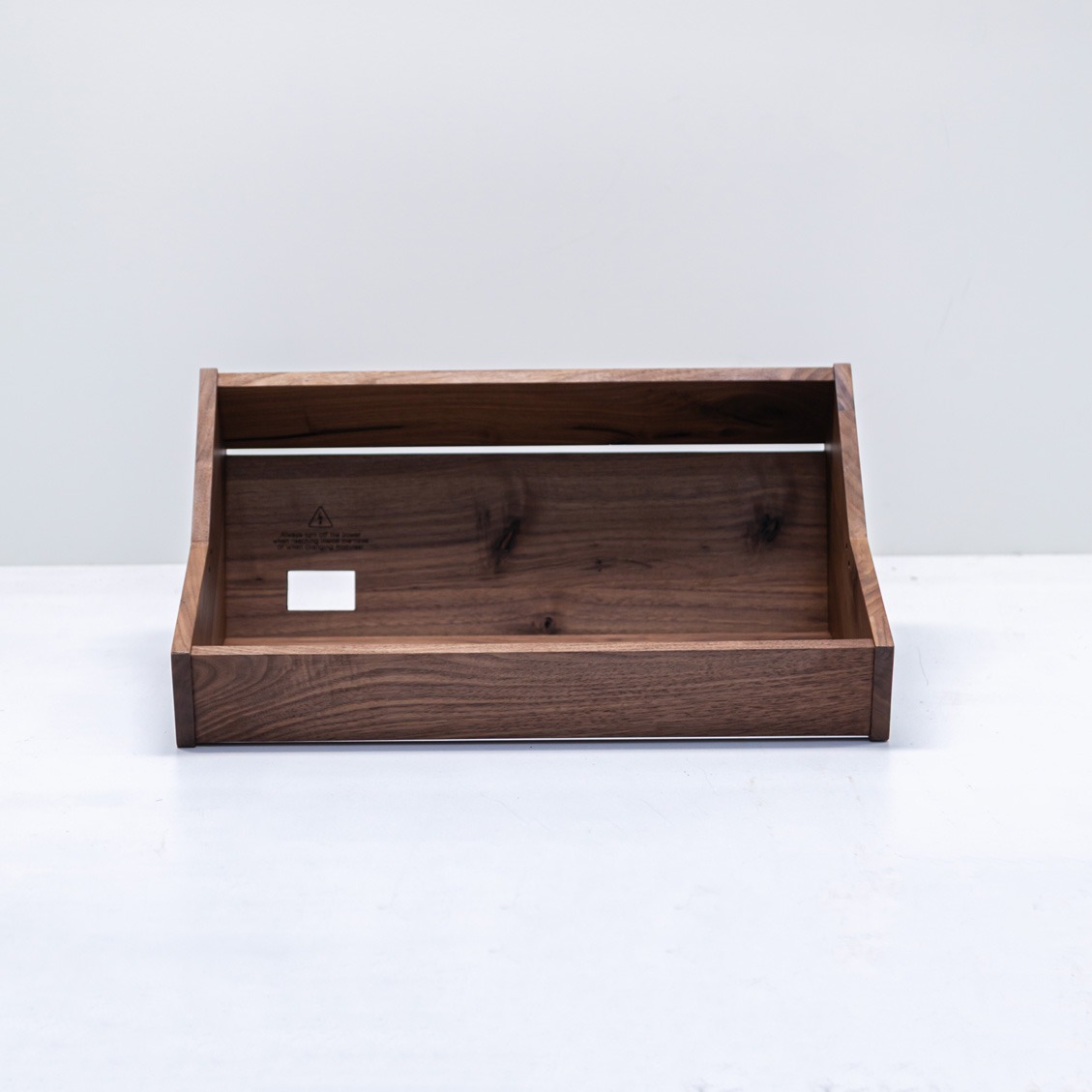

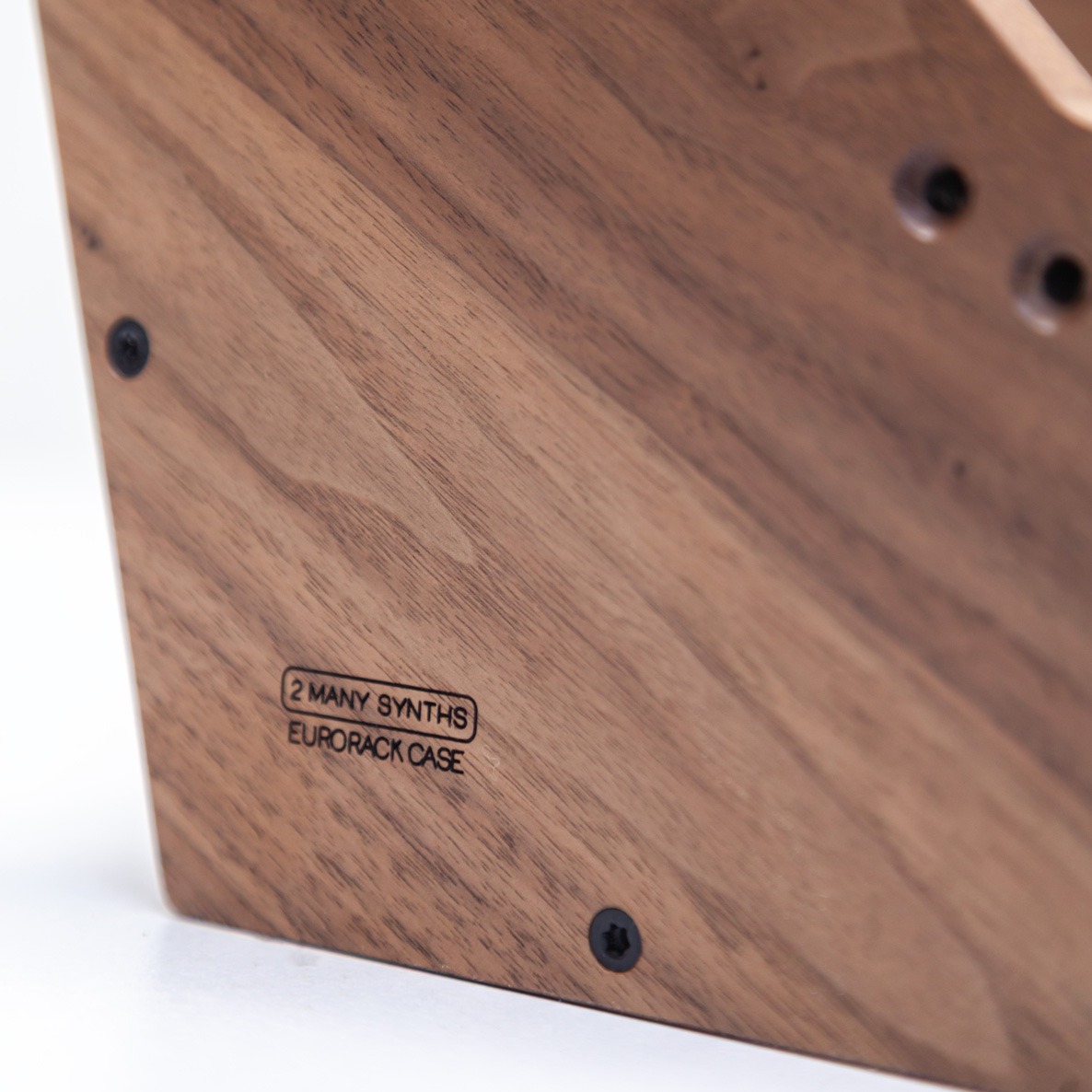

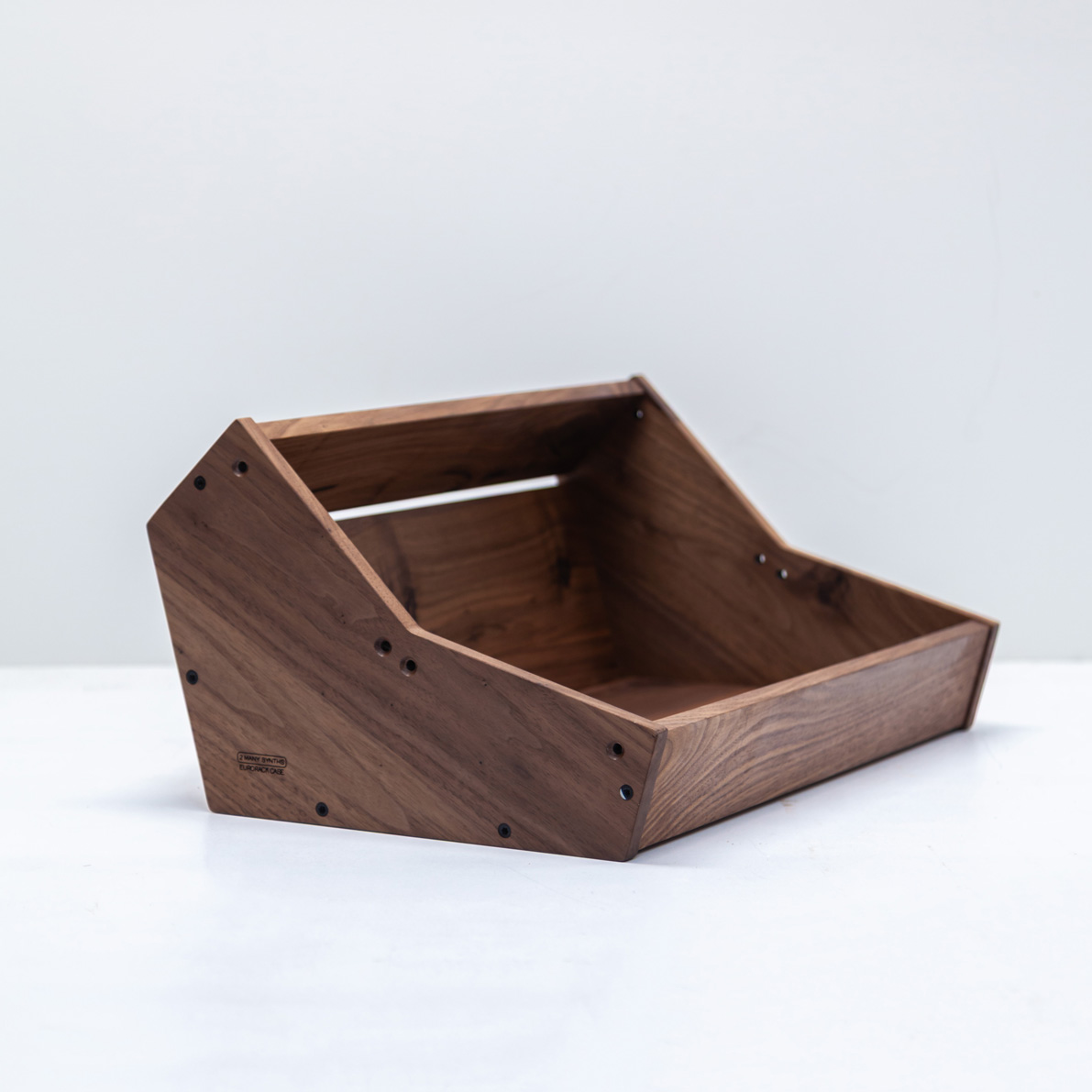

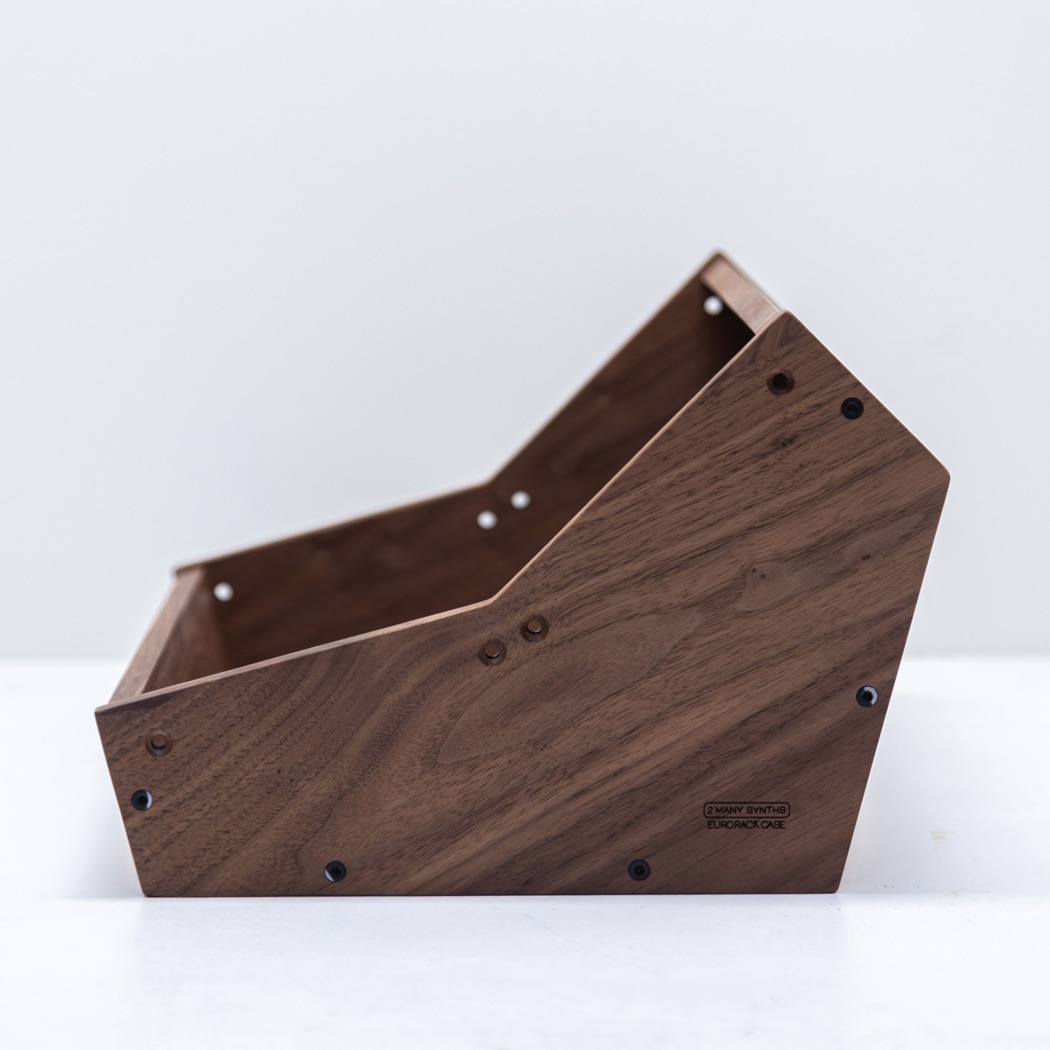

6U 84HP Eurorack case in Solid Walnut

Original price was: €896.Current price is: €776.

Solid Walnut for the price of Solid Oak 🙂

Case is done, a nice unique one in solid walnut where we normally mainly use solid Oak .. so nice oppurtunity to get something special!

It is 6U 84HP, a good compact size, but you can still choose the rails colour and power. I made a pre-selection, but feel free to change around.

For other widths and/or other models of cases in solid oak, check out my configurator!

Eurorack case size
eurorack size - 6U (2x 3U), 84HP
1 × eurorack size - 6U (2x 3U), 84HP
€283
Oak finish
wood finish - Osmo hardwax oil
1 × wood finish - Osmo hardwax oil
€29
Rails colour
Rails insert

For the M3 slide nuts, you can select them as a multitude of 20 pcs, just select roughly how many you would like in your complete case and they will be distributed accordingly.

For the threaded inserts you need to select the number of pairs you need per 1U or 3U row; so with 3U just 1x, with 6U you'll need 2x, etc. Note that the inserts have a maximum length from the factory, so with larger cases they can be build up out of two pieces.

inserts 1U or 3U pair - 84HP pair of M3 threaded inserts
2 × inserts 1U or 3U pair - 84HP pair of M3 threaded inserts
€16
Power supply

The Meanwell RT-65B is a low cost and efficient power supply, giving loads of power for a good price. By far the most popular and most sold PSU for Eurorack. The PSU's always come mounted to the case. The power is either DIY or pre-wired on all low-voltage wires & ground. The final connection from the socket to the PSU has to be done by yourselves (no soldering, only cable stripping & a few screws).

RT-65B Specs: +12V 3.5A -12V 1.0A and 5V 8.0A, total output power 65W.

Bussboards

Power to your modules are supplied by bussboards
When you select a MeanWell PSU and select an amount of bussboards here, you'll get the Modular Synth Lab Bussboards with 20 header

Choose for a DIY cable kit and assemble it yourselves/with local help.

Qty:-+
Power socket

1 power socket for 3x MeanWell PSU's max. to not exceed the 10A fuse, otherwise select multiple.

Placeholder
1 × power socket - Socket in back plate
€14
Power cable
AC Power Cable – max. 250VAC
Surplus for solid Walnut
Description
Triple-layer shipping carton (optional)
A super-strong triple-layered cardboard boxes for small & regular size cases. The case itself is packed inside with foam blocks. Quite a good solution for international transport as well!

Only 1 in stock

Part

Material

Brand

Synth
