Home » Shop » Eurorack (configurator) » Eurorack custom case in black 18U 196HP (for Dorian)



Widths

These are (my) standard HP sizes:

  • 60HP = 306mm + 2x 12mm sides = 330mm
  • 84HP = 428mm + 2x 12mm sides = 452mm
  • 104HP = 530mm + 2x 12mm sides = 554mm
  • 126HP = 642mm + 2x 12mm sides = 666mm
  • 160HP = 814mm + 2x 12mm sides = 838mm
  • 196HP = 997mm + 2x 12mm sides = 1021mm
  • I cut the rails to size myself, so other HP possible on request



Eurorack custom case in black 18U 196HP (for Dorian)

configurator

Eurorack case size

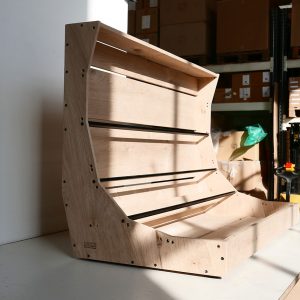

eurorack size - 18U (6x 3U), 196HP
1 × eurorack size - 18U (6x 3U), 196HP
€2.160
Oak finish
wood finish - Black coloured linseed oil
1 × wood finish - Black coloured linseed oil
€79
Rails colour

Standard the rails is in aluminum colour, but optionally it can be replaced by a black version.

Please select a multitude of this per 1U or 3U row, so if you order a 9U case you'll have 3x 3u = 3 rows x black surplus.

Placeholder
6 × Rails colour per 1U or 3U pair - Black rails 196HP
€17
Rails insert
inserts 1U or 3U pair - 196HP pair of M3 threaded inserts
6 × inserts 1U or 3U pair - 196HP pair of M3 threaded inserts
€36
Power supply
PSU - HammerPWR by Konstantlab + 120W power brick
PSU - HammerPWR by Konstantlab + 120W power brick
€369
Qty:-+
Bussboards
Bussboards - Filtered bussboard #2 by Konstantlab (all low voltage cables wired)
Bussboards - Filtered bussboard #2 by Konstantlab (all low voltage cables wired)
Original price was: €79.Current price is: €55.
Qty:-+
Power socket

1 power socket for 3x MeanWell PSU's max. to not exceed the 10A fuse, otherwise select multiple.

Qty:-+
Power cable
AC Power Cable – max. 250VAC
Qty:-+
Handles (optional)
Include this set of 2 black handles for transport comfort, minimal case size 6U. Mounted with black bolts to the sides of your case.
Qty:-+

Made to order
