Widths

These are (my) standard HP sizes:

  • 60HP = 306mm + 2x 12mm sides = 330mm
  • 84HP = 428mm + 2x 12mm sides = 452mm
  • 104HP = 530mm + 2x 12mm sides = 554mm
  • 126HP = 642mm + 2x 12mm sides = 666mm
  • 160HP = 814mm + 2x 12mm sides = 838mm
  • 196HP = 997mm + 2x 12mm sides = 1021mm
  • I cut the rails to size myself, so other HP possible on request

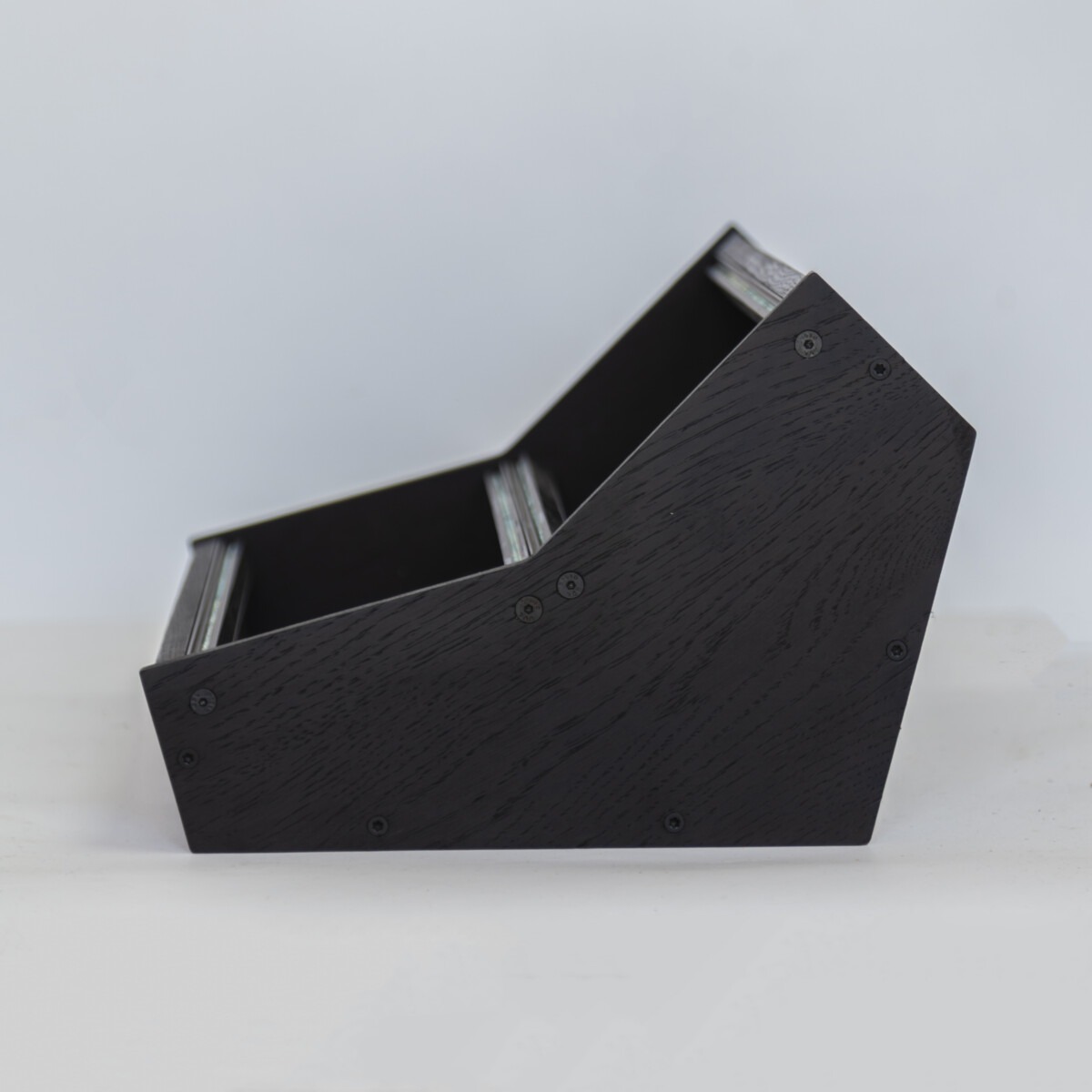

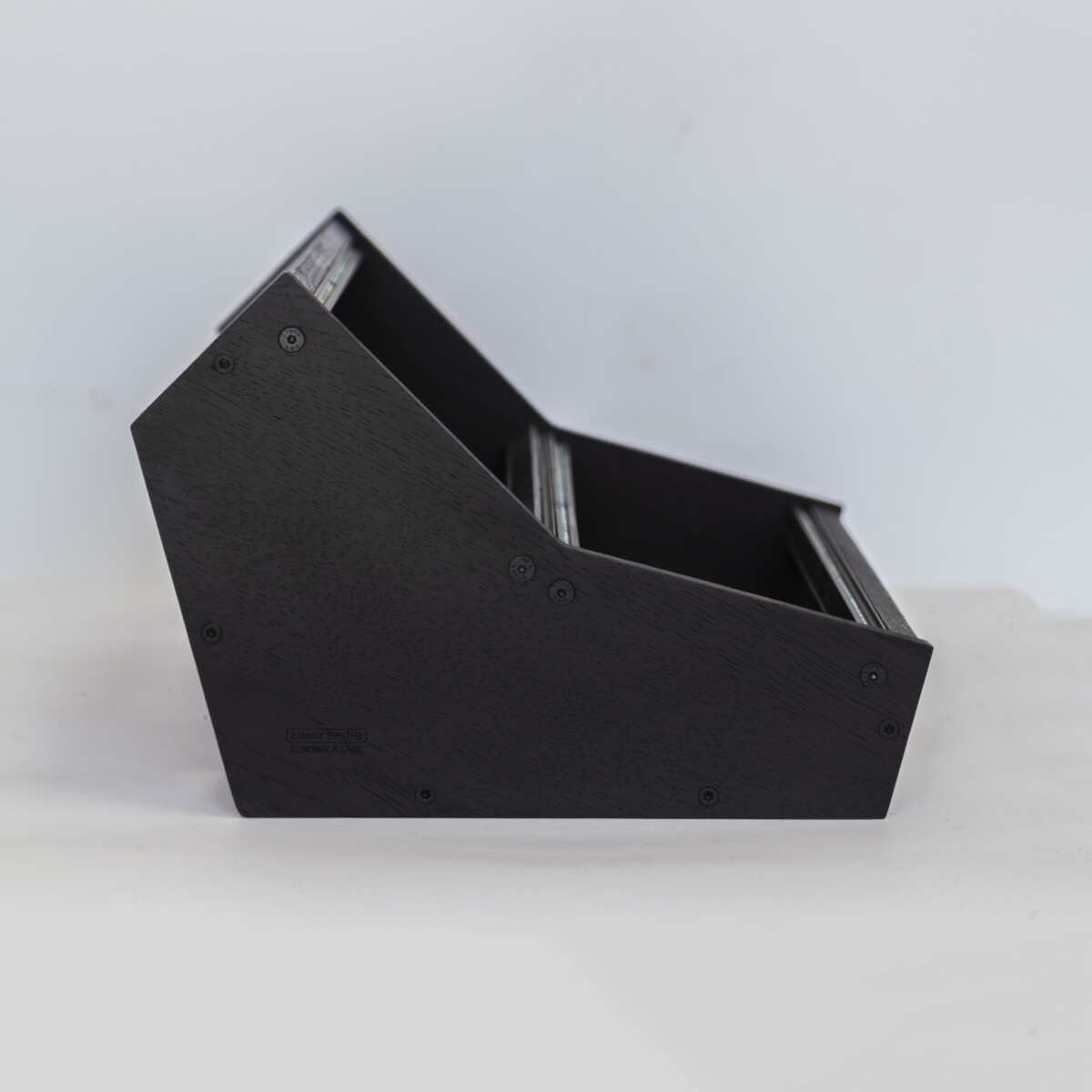

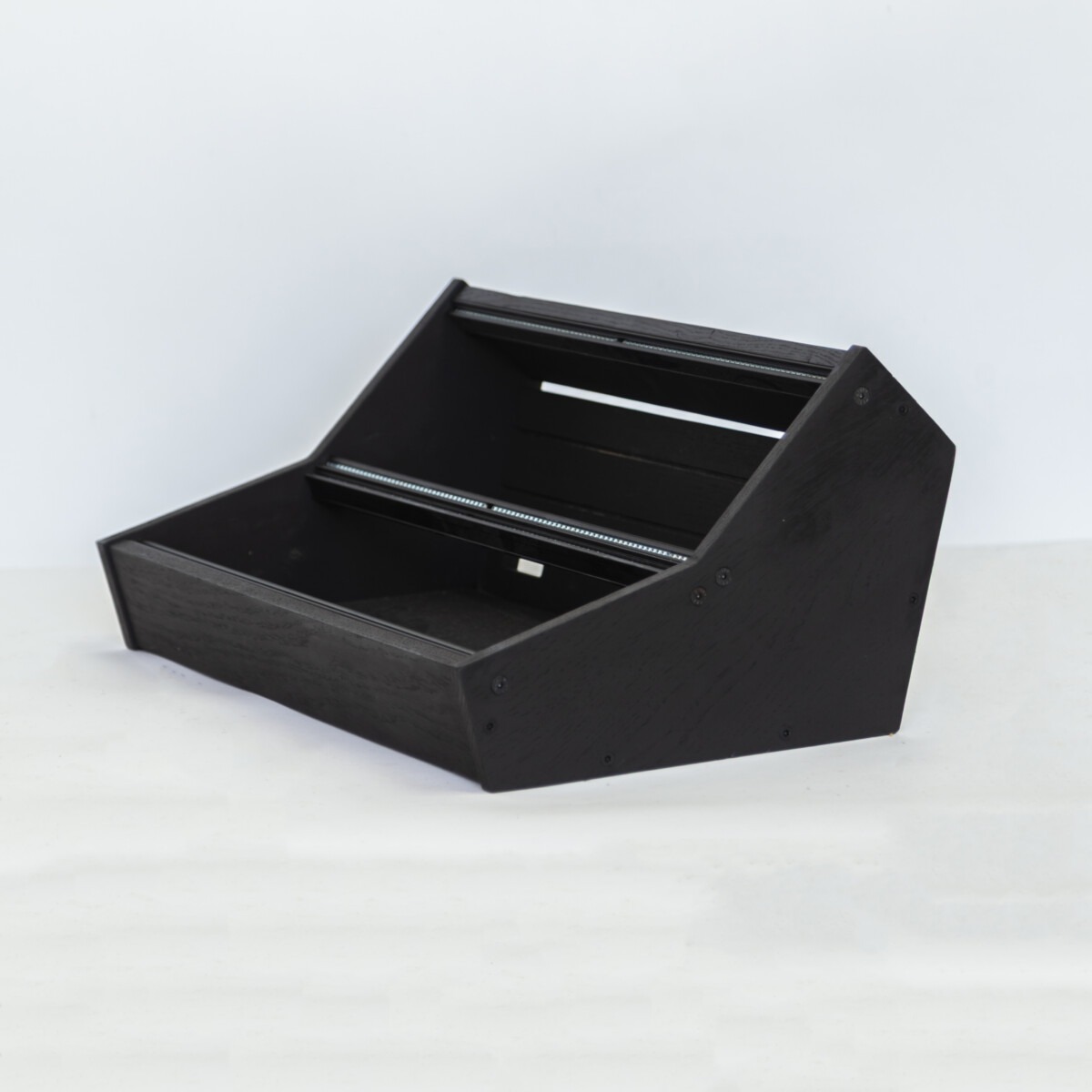

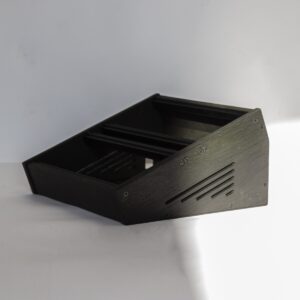

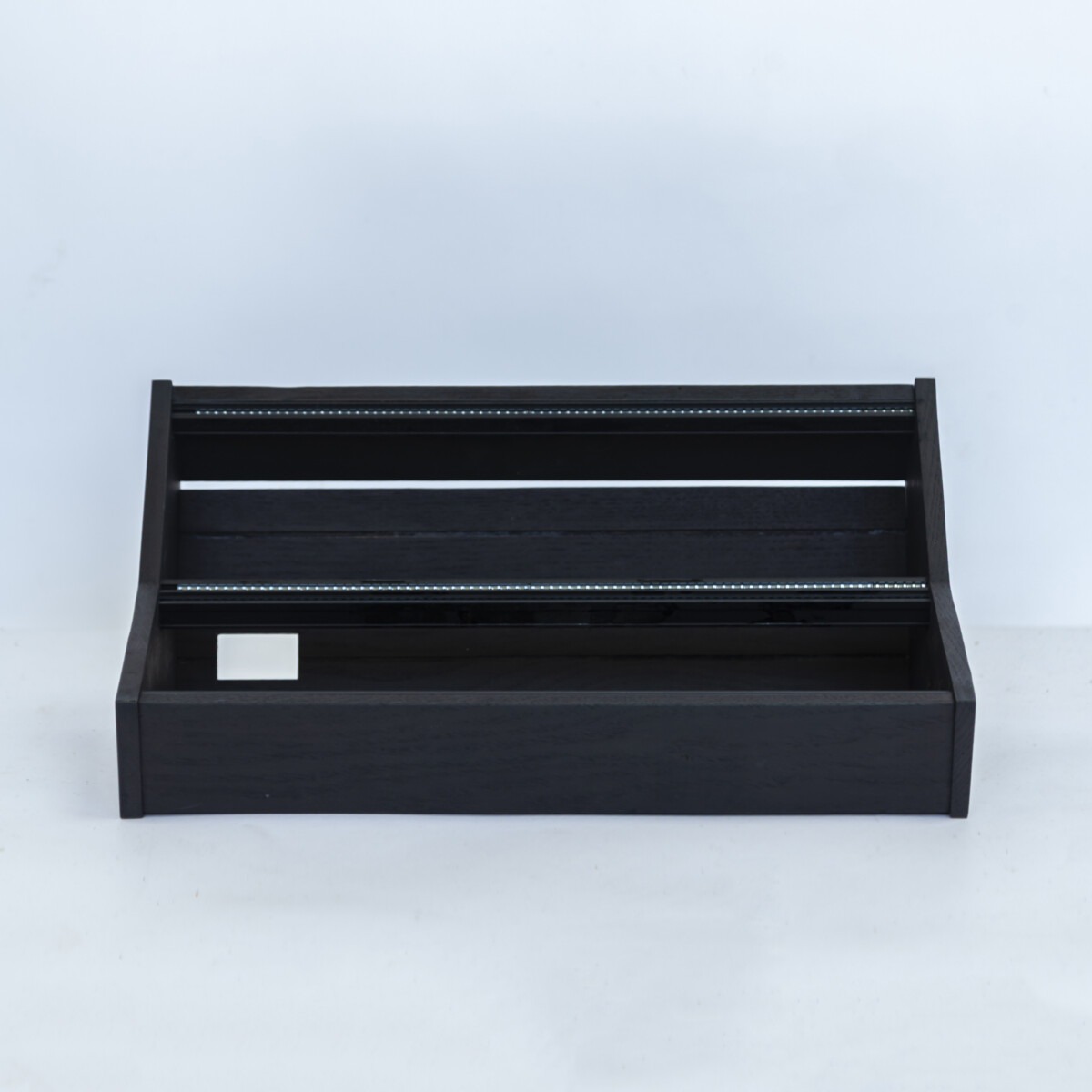

6U 84HP Eurorack case in BLACK

Original price was: €442.Current price is: €349.

6U is one of the most popular standard sizes Eurorack case. With two 3U rows you’ll have enough space for a (starter/compact) case and create a nice patch in it. 84HP is also a good size to fit some modules. 60HP can be small and 104 maybe too much .. so 6U 84HP.

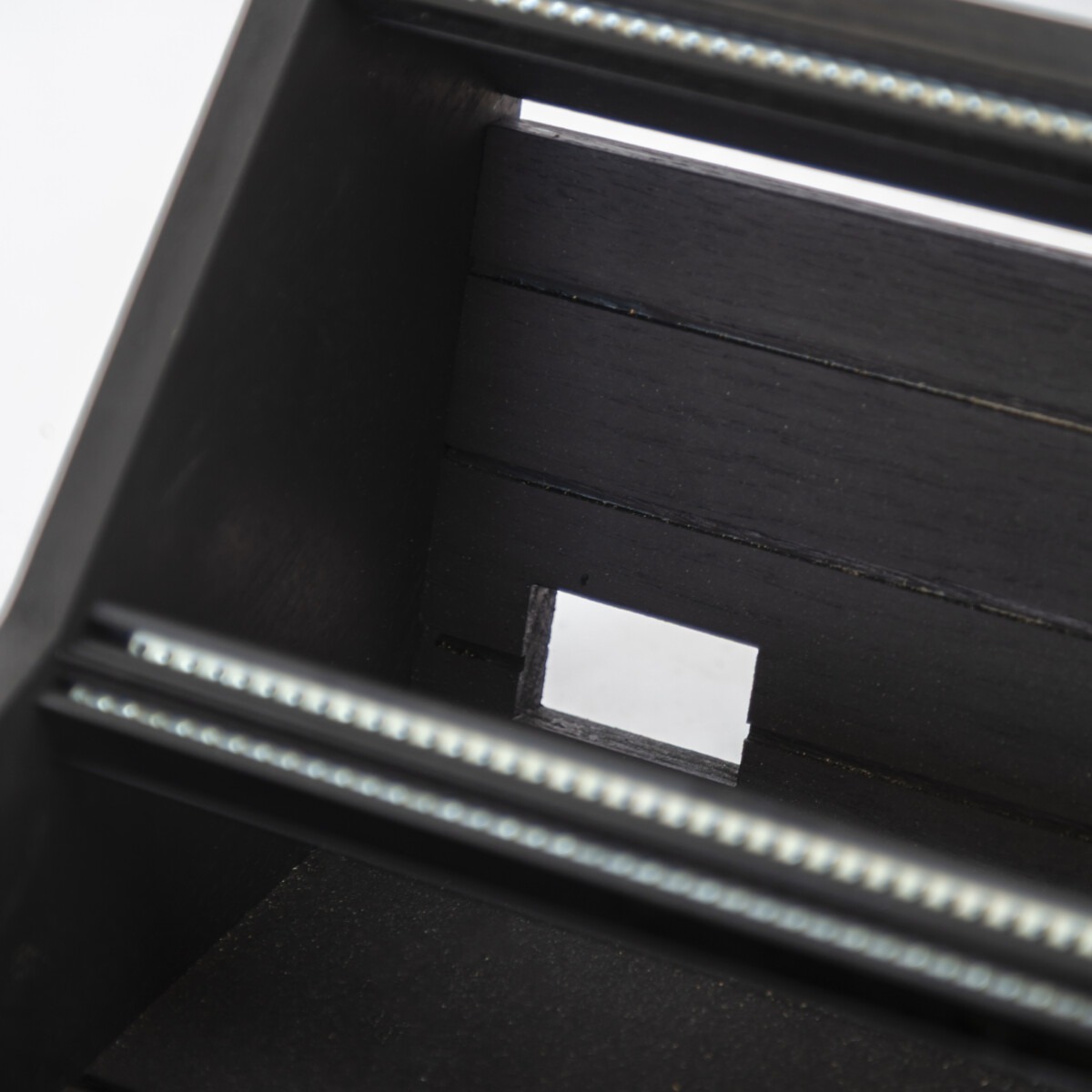

Oiled in deep black linseed oil on solid oak and together with black anodised rails this becomes a true black marble in your studio!

Power is optionally installed, but for a case this size you can also consider a 4HP power module if you can miss the HP!

For other widths and/or other models of cases in solid oak, check out my configurator!

Eurorack case size
eurorack size - 6U (2x 3U), 84HP
1 × eurorack size - 6U (2x 3U), 84HP
Original price was: €283.Current price is: €226.
Oak finish
wood finish - Black coloured linseed oil
1 × wood finish - Black coloured linseed oil
Original price was: €79.Current price is: €63.
Black rails?

Standard the rails is in aluminum colour, but optionally it can be replaced by a black version.

Please select a multitude of this per 1U or 3U row, so if you order a 9U case you'll have 3x 3u = 3 rows x black surplus.

Placeholder
2 × Rails colour per 1U or 3U pair - Black rails 84HP
Original price was: €8.Current price is: €5.
Rails insert

For the M3 slide nuts, you can select them as a multitude of 20 pcs, just select roughly how many you would like in your complete case and they will be distributed accordingly.

For the threaded inserts you need to select the number of pairs you need per 1U or 3U row; so with 3U just 1x, with 6U you'll need 2x, etc. Note that the inserts have a maximum length from the factory, so with larger cases they can be build up out of two pieces.

inserts 1U or 3U pair - 84HP pair of M3 threaded inserts
2 × inserts 1U or 3U pair - 84HP pair of M3 threaded inserts
€16
Power supply

The Meanwell RT-65B is a low cost and efficient power supply, giving loads of power for a good price. By far the most popular and most sold PSU for Eurorack. The PSU's always come mounted to the case. The power is either DIY or pre-wired on all low-voltage wires & ground. The final connection from the socket to the PSU has to be done by yourselves (no soldering, only cable stripping & a few screws).

RT-65B Specs: +12V 3.5A -12V 1.0A and 5V 8.0A, total output power 65W.


Alternativelly there are also 2 options by Konstantlab:
HammerPWR & SeventyPWR are externally powered from a power brick. This creates the option to fully wire the system for you and ready to go, since there is no high voltage inside the case. These power supplies have been developped for Eurorack specifically, are known for their power & low noise but to come at a cost.

- HammerPWR (100 Watt output) + MeanWell 120Watt adapter, +12V 5A (2x 2.5A), -12V 2.5A and +5V 2.0A

- SeventyPWR (70 Watt output) + MeanWell 90 Watt adapter, +12V 2.5A, -12V 2.5A, +5V 2.0A

Qty:-+
Bussboards

Power to your modules are supplied by bussboards
When you select a MeanWell PSU you'll get the Modular Synth Lab Bussboards with 20 headers, when you select a HammerPWR or SeventyPWR you automatically get the Konstantlab's filtered bussboards with 19 connectors each.

Recommended to have a maximum of 3 or 4 bussboards per PSU.

Choose for a DIY cable kit and assemble it yourselves/with local help. or choose for a system where all low-voltage cables have been pre-wired! For the HammerPWR & SeventyPWR PSU this means that the case is ready to go, with the Meanwell RT65B you'll only need to connect the socket(s) to the PSU('s).

Qty:-+
Power socket
Qty:-+
Power cable
AC Power Cable – max. 250VAC
Qty:-+
Triple-layer shipping carton (optional)
A super-strong triple-layered cardboard boxes for small & regular size cases. The case itself is packed inside with foam blocks. Quite a good solution for international transport as well!

Only 1 in stock
