Widths

These are (my) standard HP sizes:

  • 60HP = 306mm + 2x 12mm sides = 330mm
  • 84HP = 428mm + 2x 12mm sides = 452mm
  • 104HP = 530mm + 2x 12mm sides = 554mm
  • 126HP = 642mm + 2x 12mm sides = 666mm
  • 160HP = 814mm + 2x 12mm sides = 838mm
  • 196HP = 997mm + 2x 12mm sides = 1021mm
  • I cut the rails to size myself, so other HP possible on request

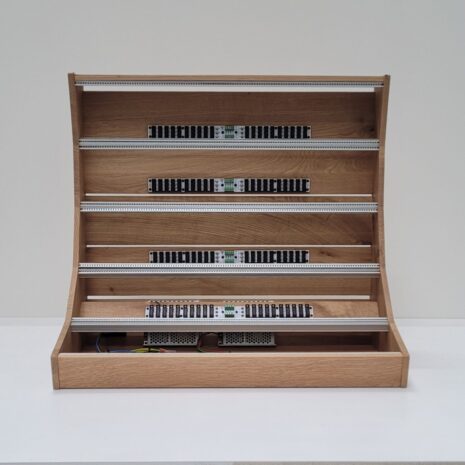

Eurorack custom case 6U to 25U (for Jonathan)

configurator

Eurorack case size
Placeholder
1 × eurorack size - 15U (5x 3U), 126HP
€1.056
Oak finish
wood finish - Osmo hardwax oil
1 × wood finish - Osmo hardwax oil
€29
Rails colour

Standard the rails is in aluminum colour, but optionally it can be replaced by a black version.

Please select a multitude of this per 1U or 3U row, so if you order a 9U case you'll have 3x 3u = 3 rows x black surplus.

Rails insert
inserts 1U or 3U pair - 126HP pair of M3 threaded inserts
5 × inserts 1U or 3U pair - 126HP pair of M3 threaded inserts
€25
Power supply

The Meanwell RT-65B is a low cost and efficient power supply, giving loads of power for a good price. By far the most popular and most sold PSU for Eurorack. The PSU's always come mounted to the case. The power is either DIY or pre-wired on all low-voltage wires & ground. The final connection from the socket to the PSU has to be done by yourselves (no soldering, only cable stripping & a few screws).

RT-65B Specs: +12V 2.8 to 3.5A -12V 0.5 to 1.0A and 5V 5.0 to 8.0A, total output power 65W.


Alternativelly there are also options by Konstantlab:
HammerPWR & SeventyPWR are externally powered from a power brick. This creates the option to fully wire the system for you and ready to go, since there is no high voltage inside the case. These power supplies have been developped for Eurorack specifically, are known for their power & low noise but to come at a cost.

- HammerPWR (100 Watt output) + MeanWell 120Watt adapter, +12V 5A (2x 2.5A), -12V 2.5A and +5V 2.0A

Qty:-+
Bussboards
Bussboards - Filtered bussboard #2 by Konstantlab (all low voltage cables wired)
5 × Bussboards - Filtered bussboard #2 by Konstantlab (all low voltage cables wired)
Original price was: €79.Current price is: €40.
Power socket

1 power socket for 3x MeanWell PSU's max. to not exceed the 10A fuse, otherwise select multiple.

Power cable
AC Power Cable – max. 250VAC
Triple-layer shipping carton
A super-strong triple-layered cardboard boxes for small & regular size cases. The case itself is packed inside with foam blocks. Quite a good solution for international transport as well!
Placeholder
1 × triple-layered shipping box - 15U (5x 3U)
Original price was: €45.Current price is: €0.

Made to order
